Quick Specs
Overall Width
2490 mm
Flow Rate
2 x 113.4 LPM
Op Weight
16670 kg
Engine
Cummins B4.5

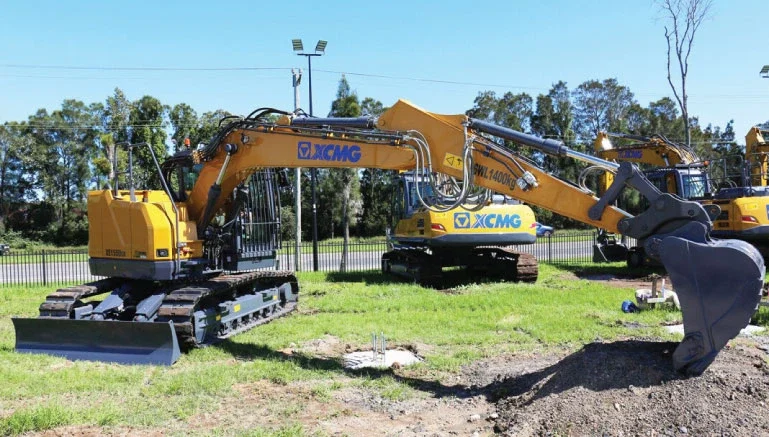

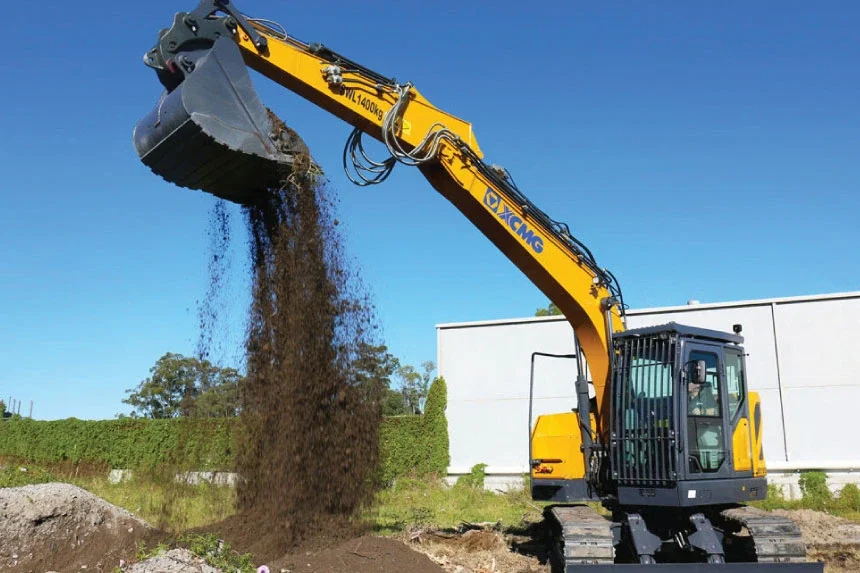

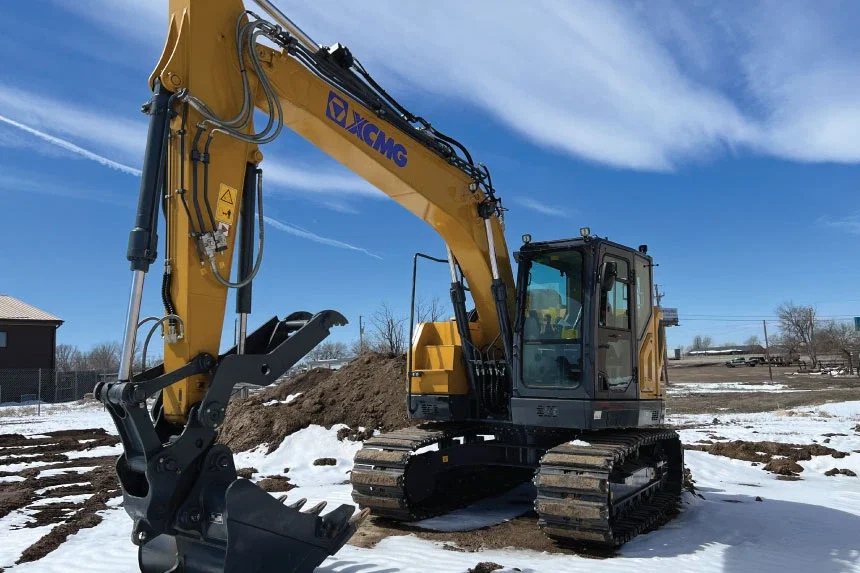

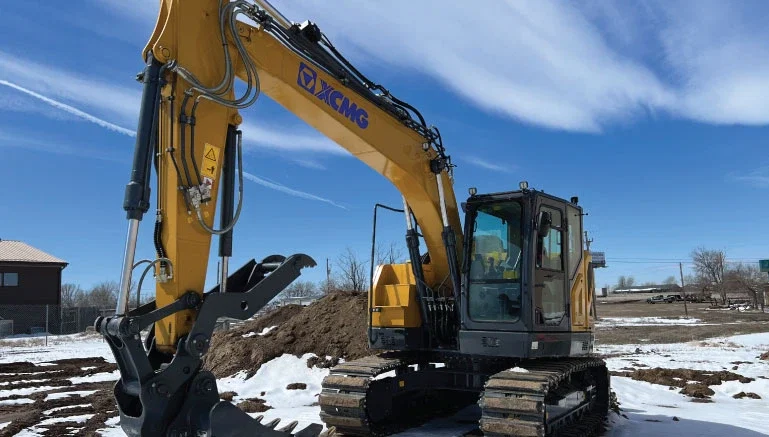

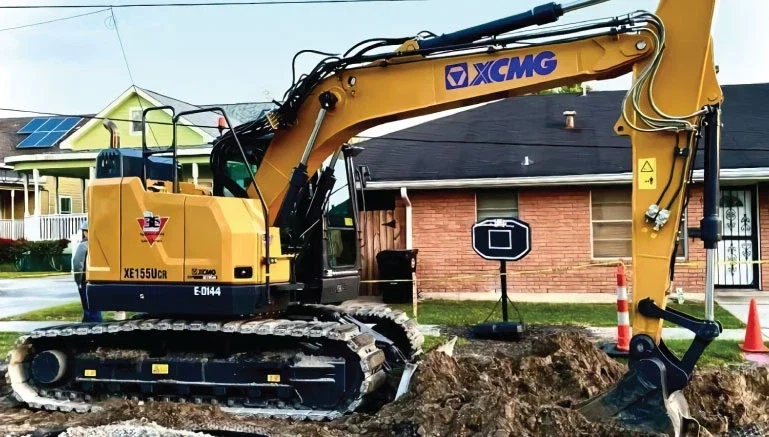

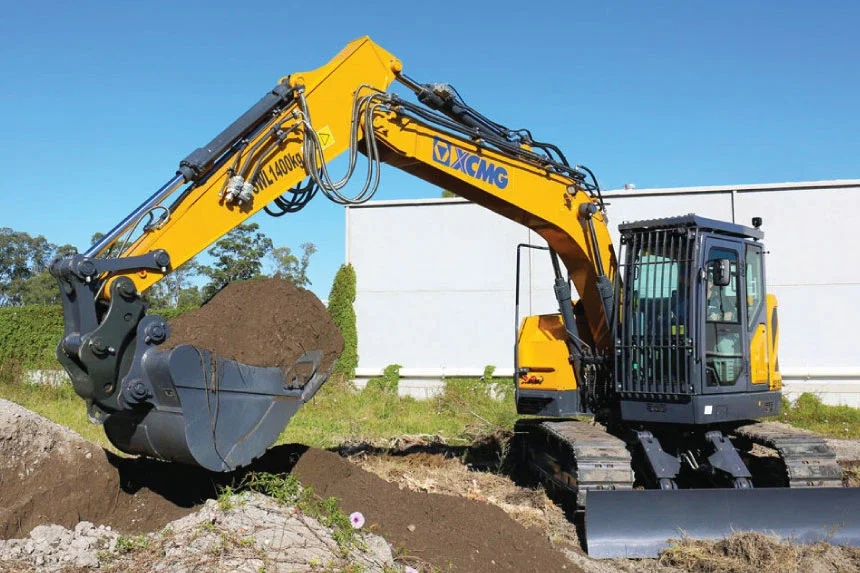

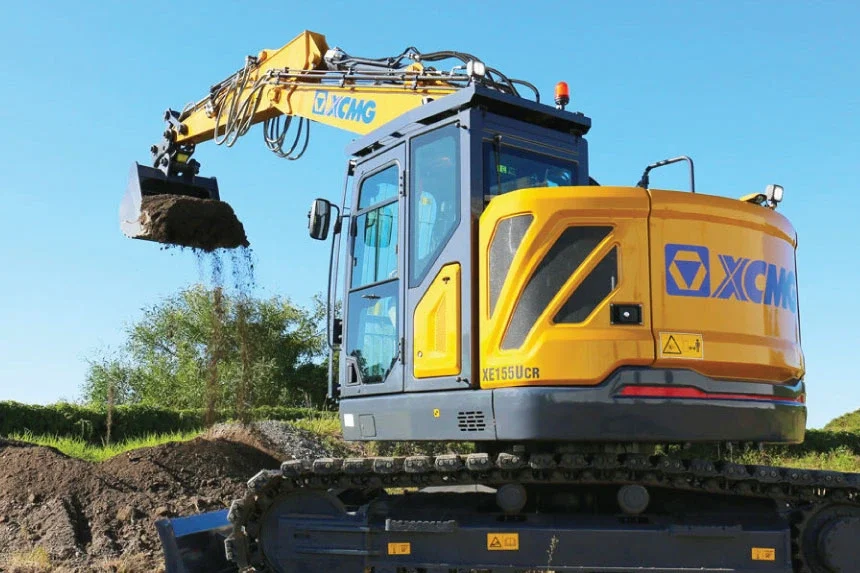

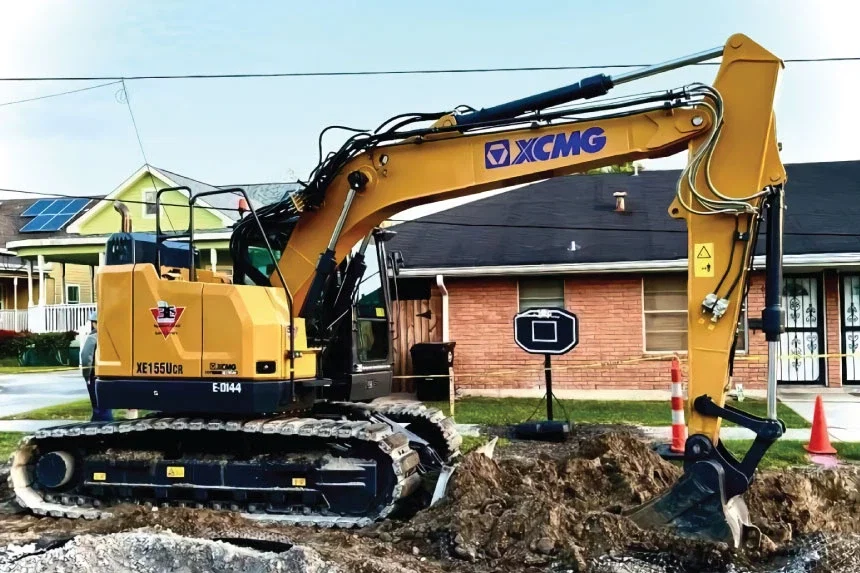

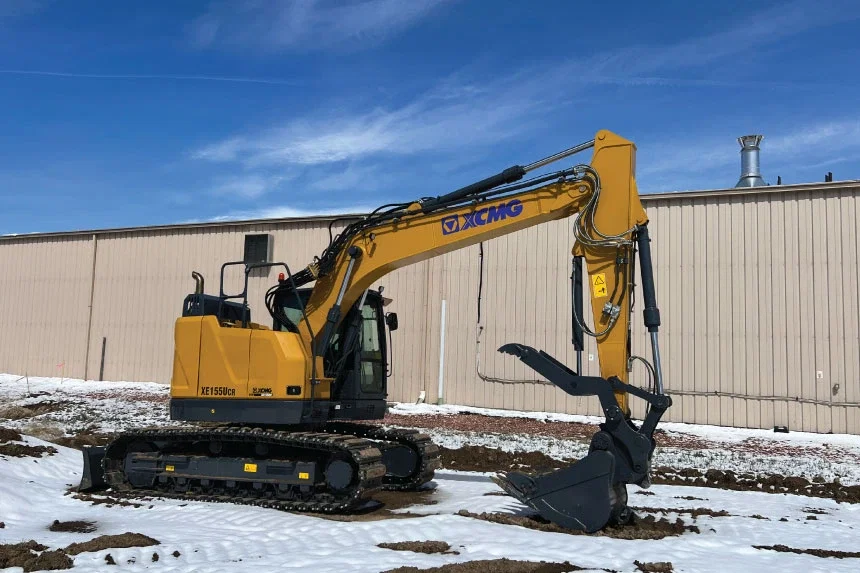

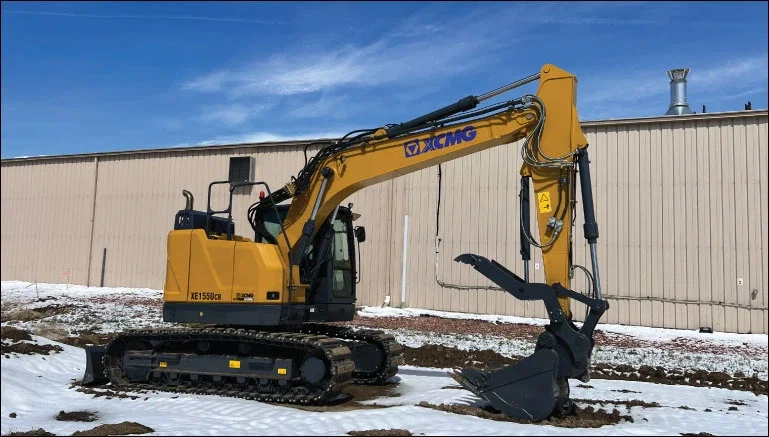

XE155UCR Excavator Overview
With a powerful Cummins engine and premium quality componentry throughout, the XE155UCR delivers impressive, reliable performance.
The XE155UCR 16 tonne excavator is perfectly designed and manufactured for a wide range of worksites: excavation, mining, loading, leveling, trenching, crushing, drilling, clamping, lifting, etc.
With exceptional structural components, powerful performance, comfortable operation and excellent safety, the XCMG XE155UCR excavator is the ideal machine solution for any and every operator seeking a value-for-money machine in the 15 / 16 / 17 tonne size class.
Outstanding Features
Key Features
- Ecological and economical
- Multiple applications
- Comfortable operating experience
- Excellent after-sales service
- Convenient maintenance
- Safe and durable
Green Friendly
- Environment friendly engine
- Redox and exhaust gas recirculation technology.
- Reduced emissions
Interior Features
- Comfortable cab and operation
- State of the art touchscreen LCD display with vital operation and performance information.
- Air conditioner and heater
- Ergonomic air suspended seat up to 150kg capacity
Technology
- The ultra-short tail gyration radius makes it easier to work in small spaces.
- This machine has not only a short rear radius but also a short front turning radius.
- In urban areas it’s a great advantage when you only need 4m to turn around.
Machine Specifications
Key Performance Specs
Operating Weight:
16670 kg
Engine:
Cummins B4.5
Power:
90kW / 121HP
Max Torque:
500 Nm (@ 1500rpm)
Max Speed:
4.7km/h
Hydraulic Flow:
2×113.4 LPM
Dig Depth & Reach:
5535 / 8155 mm
Bucket / Arm Digging Force:
99 / 70.6 kN
Overall Width:
2490 mm
Swing Speed:
11.3 RPM
Dipper Length:
2520 mm
Boom Length:
4600 mm
Track Type / Width:
Steel / 500 mml
Additional Specs
Cab:
FOPS / ROPS / Air Conditioned
Emergency Stops:
Included x2
Buckets:
Enquire
Main Pump:
Kawasaki
Radio:
AM/FM + USB
Walking Motor:
Doosan / Nabtesco
Seat:
Air Suspension
Reverse Camera:
Yes
Piping:
Bi-direction
Pressure Flow Monitor:
Adjustable
Jump Start Receptacle:
Included
Amber Rotating Beacon:
Included
Multi Attachment Control System:
Included
