Quick Specs
Overall Width
3582 mm
Flow Rate
2 x 360 LPM
Op Weight
48100 kg
Engine
Cummins

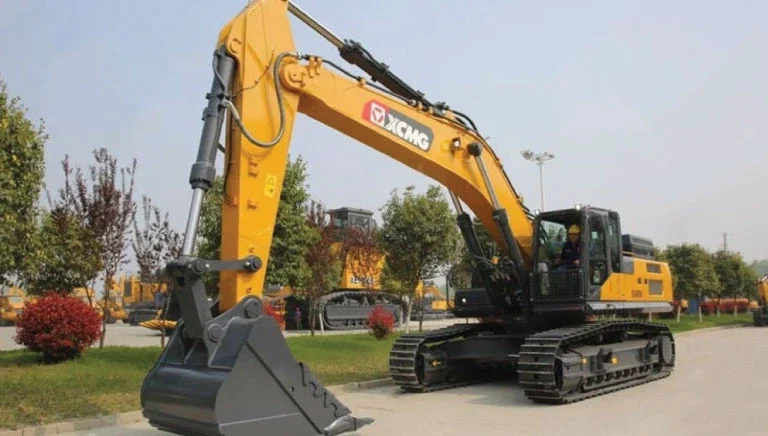

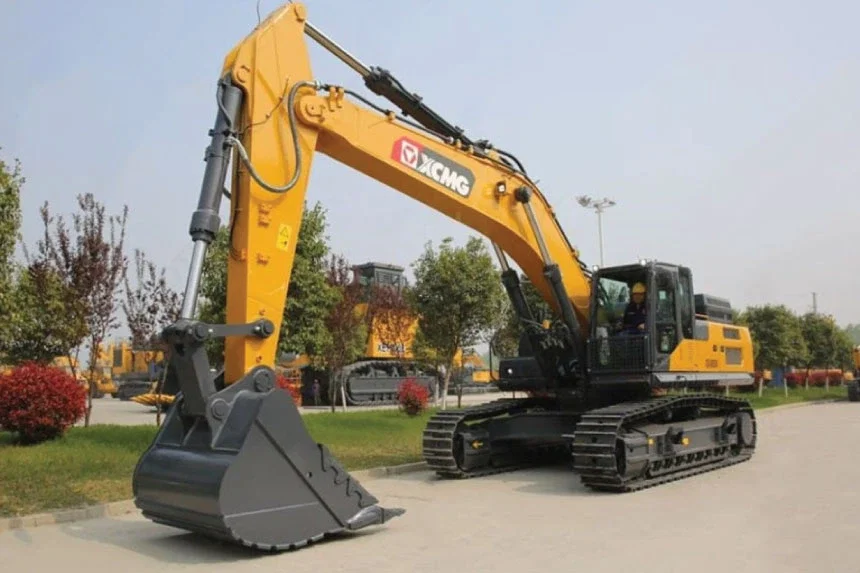

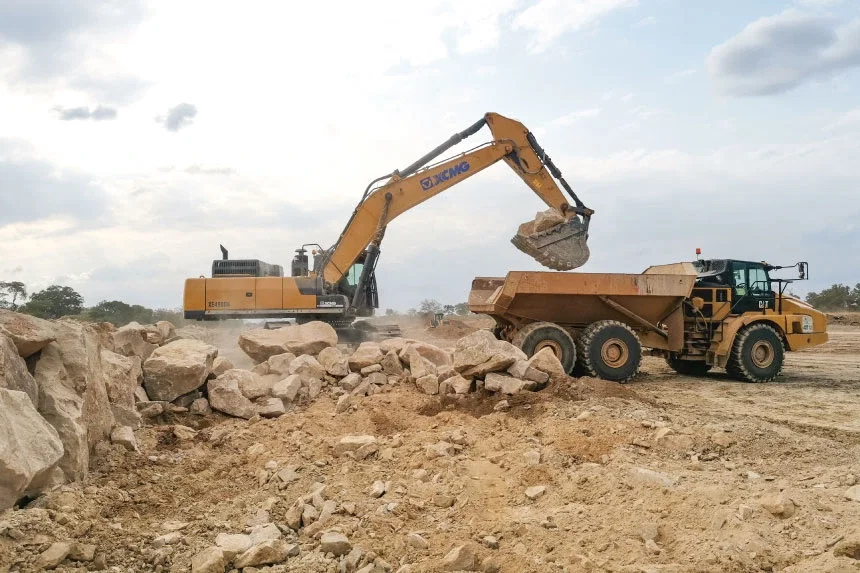

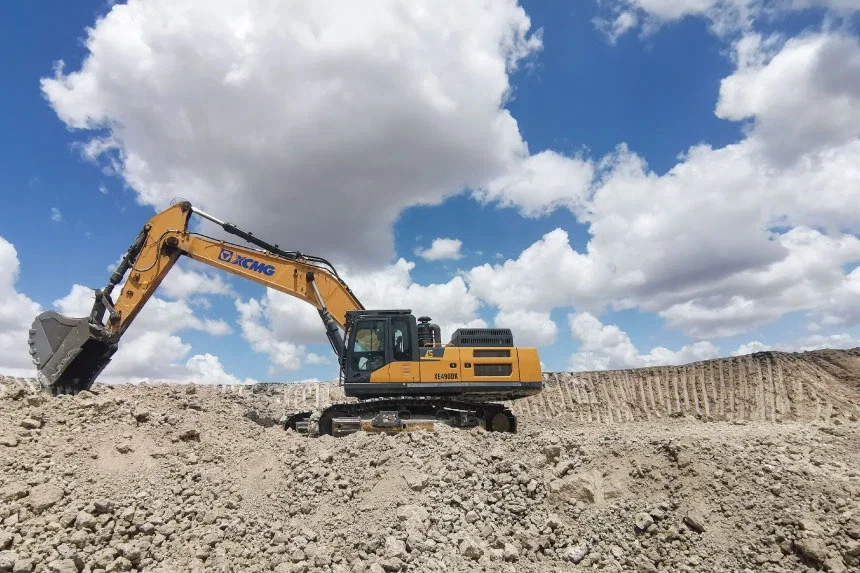

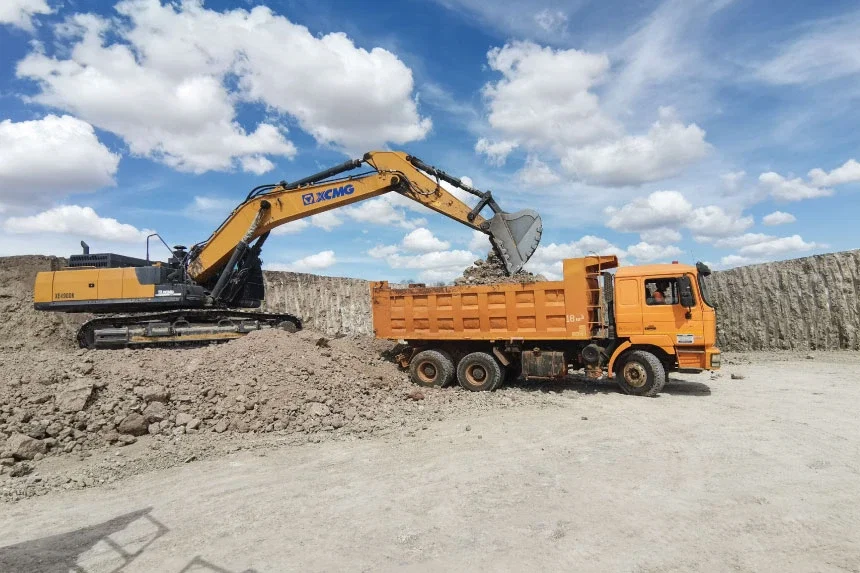

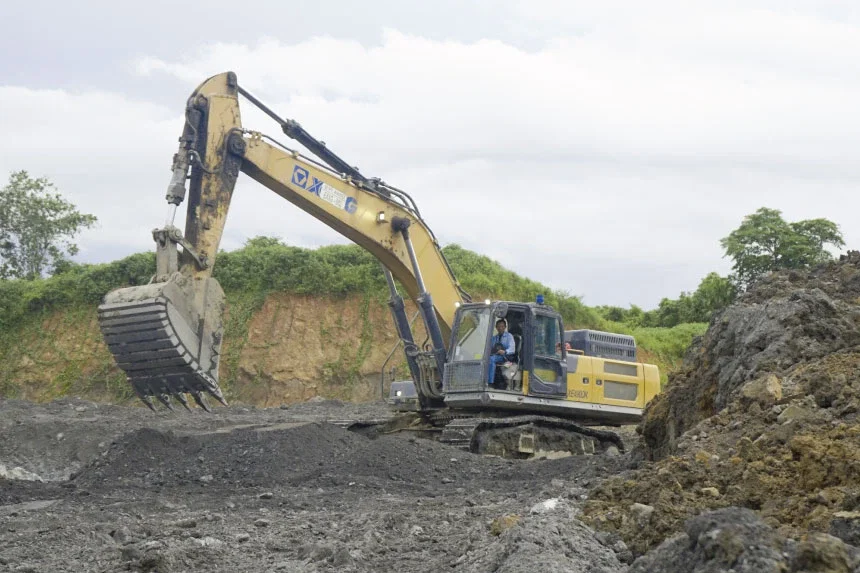

XE490DK Excavator Overview
With a powerful Cummins QSM11 engine and premium quality componentry throughout, the XE490DK delivers impressive, reliable and durable performance.

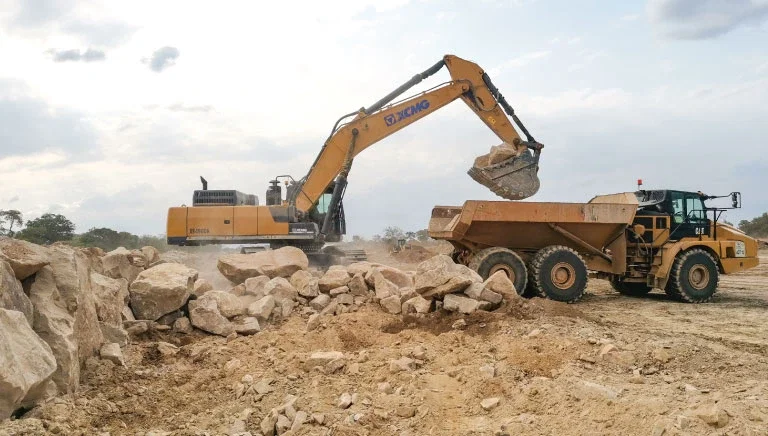

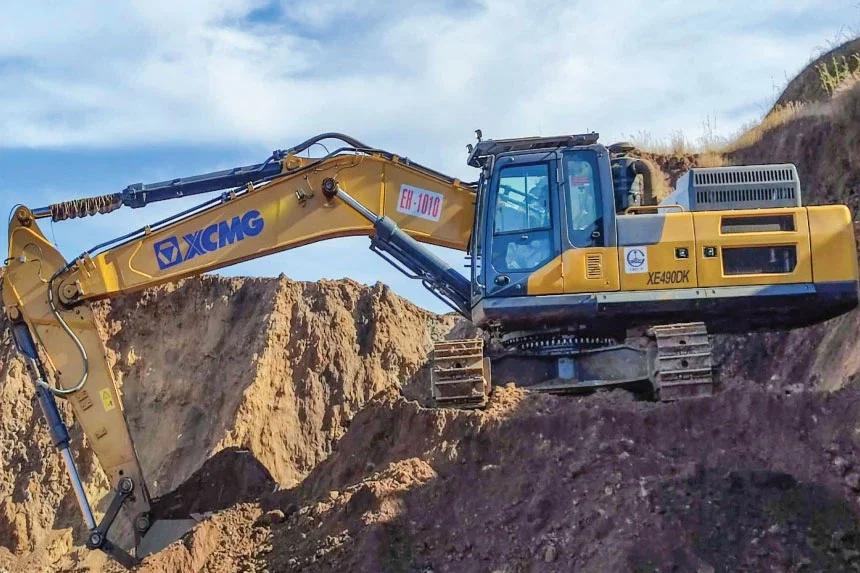

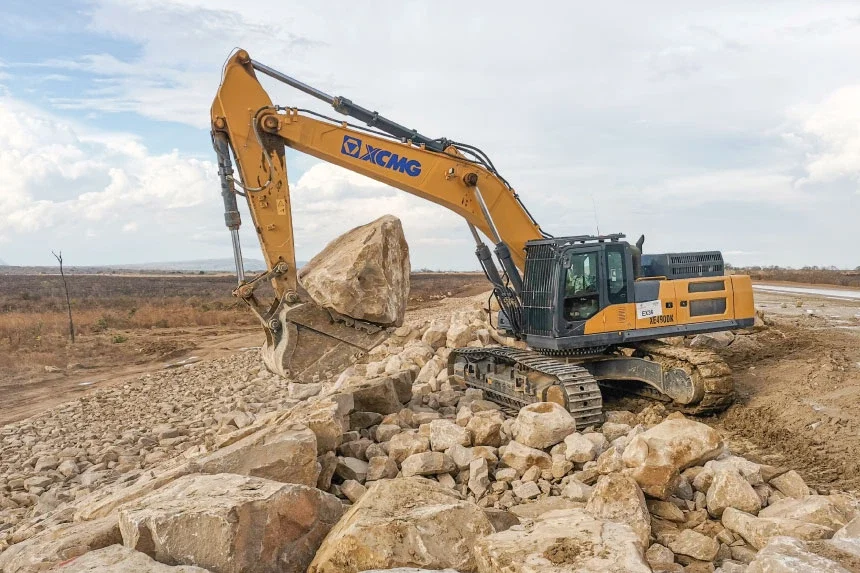

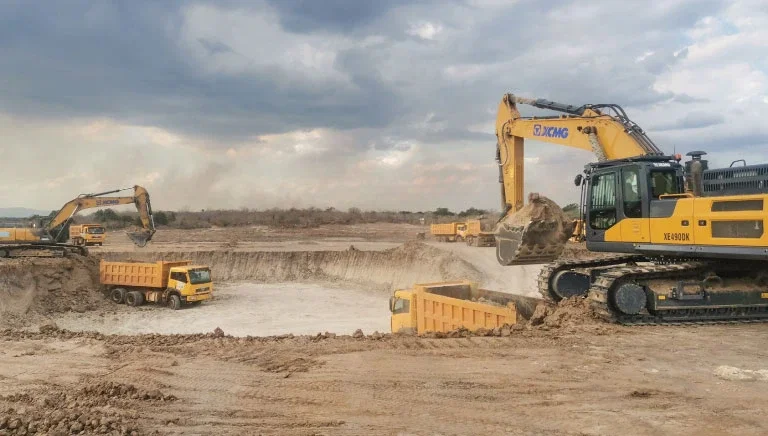

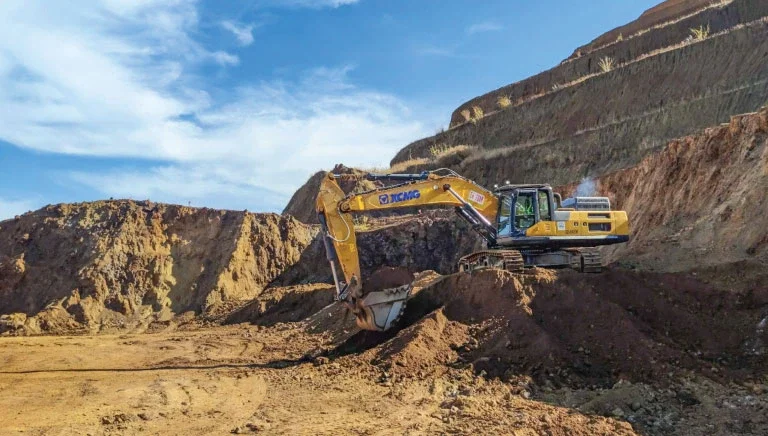

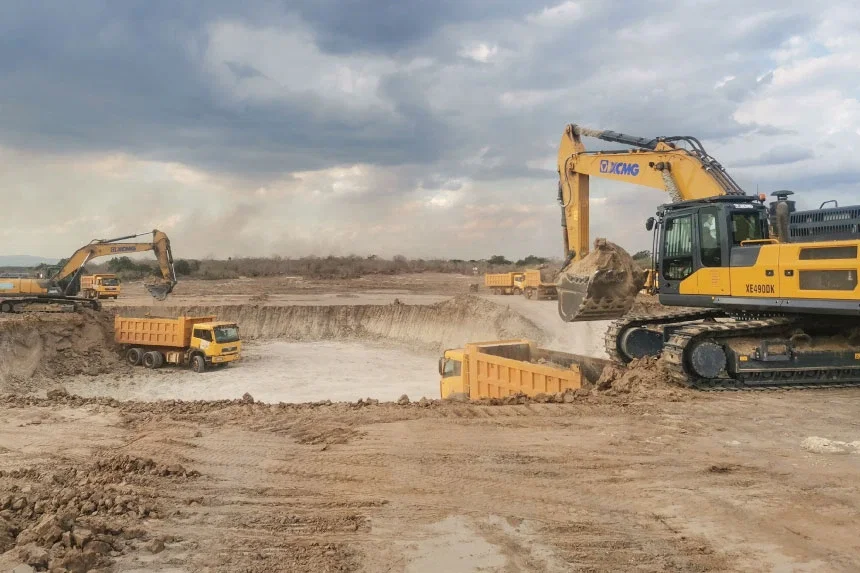

The XE490DK excavator is perfectly designed and manufactured for a wide range of worksites: mining, excavation, leveling, loading, trenching, crushing, drilling, clamping, lifting, and much more.
With high quality structural components, exceptional hydraulic capability and overall premium performance and reliability, the XCMG XE490DK excavator is the ideal machine for any operator seeking a value-for-money excavator in the 45-50 tonne size class.
Outstanding Features
Key Features
- Ecological and economical
- Multiple applications
- Comfortable operating experience
- Excellent after-sales service
- Convenient maintenance
- Safe and durable
Green Friendly
- Environment friendly engine
- Customised torque curve = low speed and high torque, low fuel consumption and good economy
- Reduced emissions
Interior Features
- Comfortable cab and operation
- Air conditioner and heater
- Ergonomic air suspended seat up to 150kg capacity
Technology
- New generation instruments
- High end 7 inch large screen display
- High resolution reverse camera display
- Simple controls and excellent visibility for monitoring performance
Machine Specifications
Key Performance Specs
Operating Weight:
48100 kg
Engine:
Cummins QSM11
Power:
280kW / 375HP
Max Torque:
1898 Nm
Max Speed:
5.4km/h
Hydraulic Flow:
2×360 LPM
Dig Depth & Reach:
6530 / 10580 mm
Bucket / Arm Digging Force:
339 / 279 kN
Overall Width:
3582 mm
Swing Speed:
9.2 RPM
Dipper Length:
3380 mm
Boom Length:
7060 mm
Track Width:
600 mm
Track Type:
Steel
Additional Specs
Main Pump Type:
Kawasaki
Main Valve:
Hengli
Cab:
FOPS / ROPS / Anti Roll / Air Conditioned
Emergency Stops:
Included
Buckets:
Enquire
Radio:
AM/FM + USB
Walking Motor:
Doosan / Nabtesco
Seat:
Air Suspension 150kg
Reverse Camera:
Yes
Hydraulic Quick Hitch + Piping:
Yes
Pressure Flow Monitor:
Adjustable
Crane Valves:
On Boom + Arm Cylinders
Travel Alarm:
Included
Hammer Piping:
Included
