Quick Specs
Rated Op Weight
7000 kg
Op Weight
24500 kg
Horsepower
289 HP
Dump Height
3220 mm

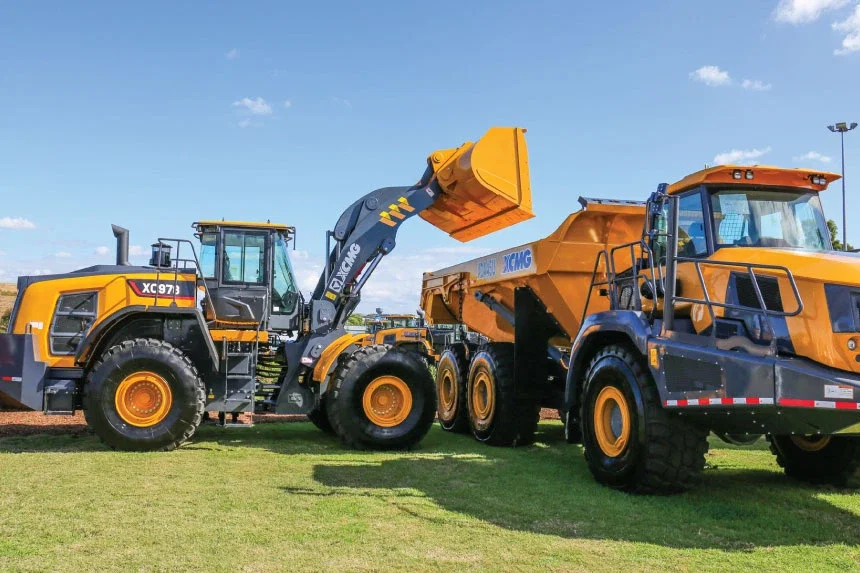

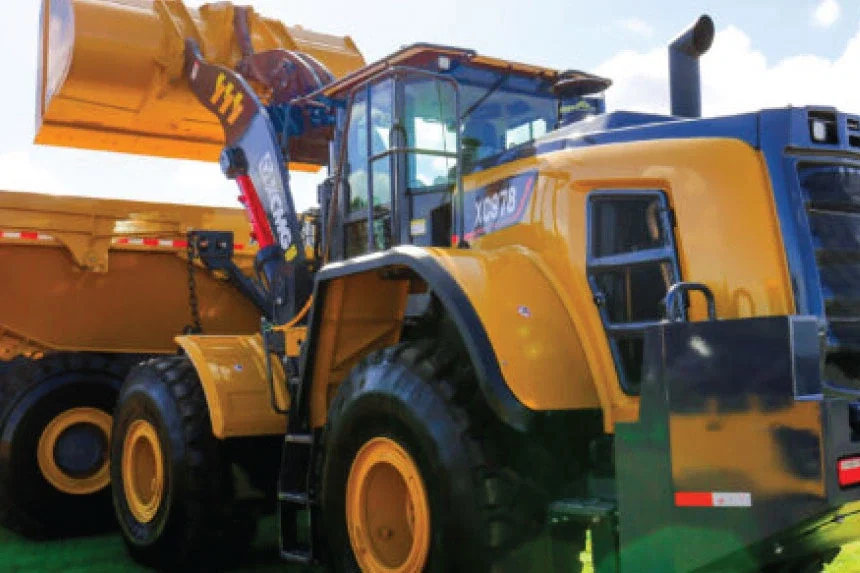

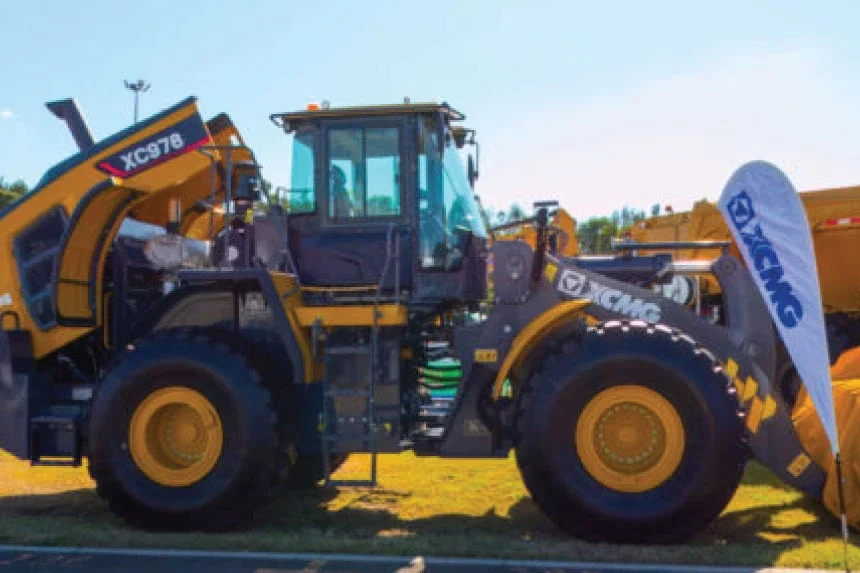

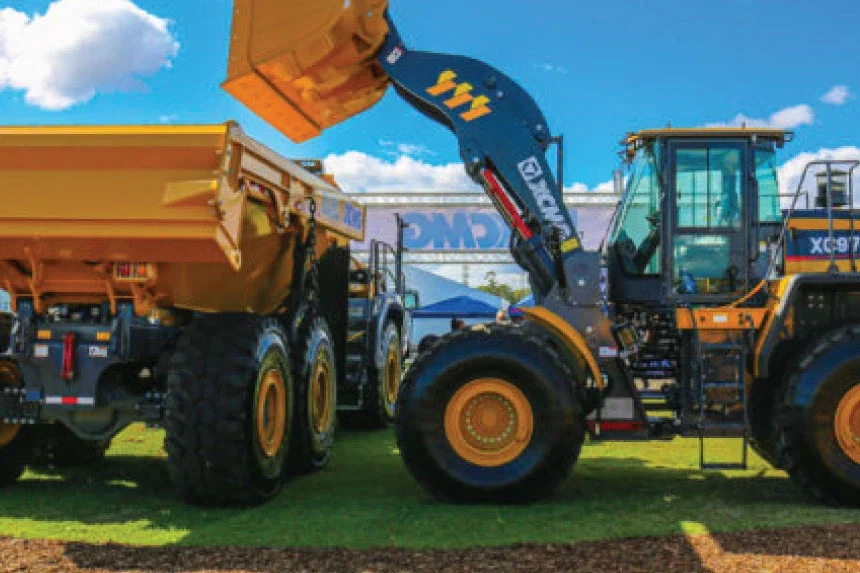

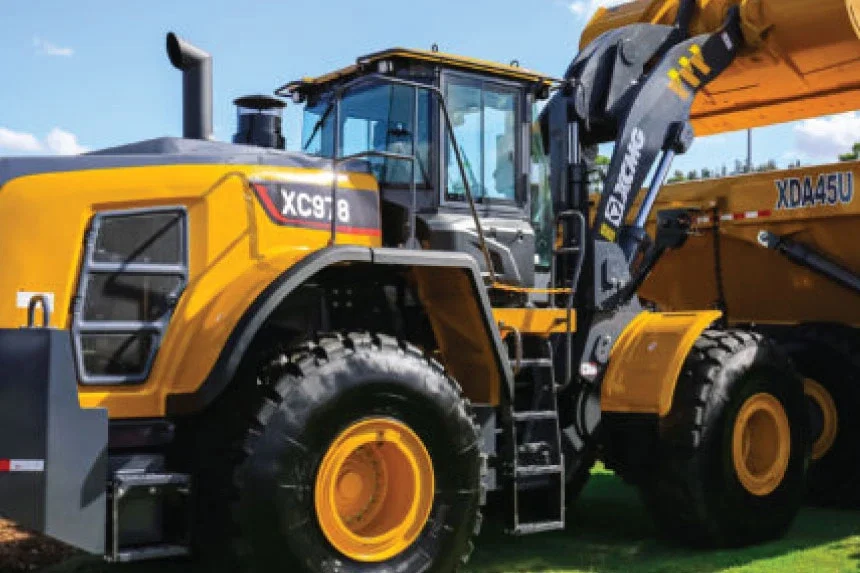

XC978 Wheel Loader Overview
Discover the versatility of the XC978 25 Tonne Wheel Loader, your dependable ally in the realm of construction equipment.
As a prominent manufacturer of wheel loaders, we provide top-tier wheel loaders available for purchase, renowned for their exceptional performance in a wide range of applications. From construction and mining to landscaping and beyond, our robust loaders are expertly crafted to effortlessly tackle any task. Explore the capabilities of our wheeled loaders today and revolutionise your construction and heavy equipment requirements with XCMG.
Machine Specifications
Key Performance Specs
Operating Weight:
24500 kg (approx)
Engine:
Cummins QSM11-C290
Overall Length:
8850 mm
Overall Width:
3230 mm
Overall Height:
3620 mm
Maximum Power:
216 kW / 289 HP
Maximum Traction:
194 kN
Maximum Breakout Force:
220 kN
Maximum Travel Speed:
36 km/h
Minimum Ground Clearance:
370 mm
Bucket Capacity:
4.5m3
Wheel Base:
3350 mm
Height of Hinge at Max Lift:
4395 mm
Max Working Height:
6262 mm
Wheel Track:
2320 mm
Transmission Pattern:
Electric Control Fixed Shaft
Transmission Gear:
4 Forward / 3 Reverse
Load Capacity:
7000 kg
Front and Rear Axle Differential Pattern:
LSD
Emission Standards:
EURO III
Additional Specs
Tyre Type:
26.5 – 25 – 20
Boom Lifting Time:
5.0 s
Hydraulic Cycle Time:
6.2 s Rise / 3.5 s Down / 1.4 s Tilt
Total Hydraulic Cycle Time:
10.7 s
Min Turning Radius Over Tyres:
6037 mm Tyre Centre / 6374 mm Tyre Outward / 7105 mm Bucket Outward
Articulation Angle:
40 Degrees
Gradeability:
26 Degrees
Peak Torque / Speed:
1636 / 1100 Nm/rpm
Fuel Tank:
400L
Hydraulic Tank:
160L
Coolant Tank:
50L
DEF Tank:
35L
Engine Oil:
50L
Transmission Oil:
160L
Front and Rear Axle Oil:
60 / 55 L
