Quick Specs
Engine
Cummins
Op Weight
8000 kg
Horsepower
99 HP
Drum Width
1680 mm

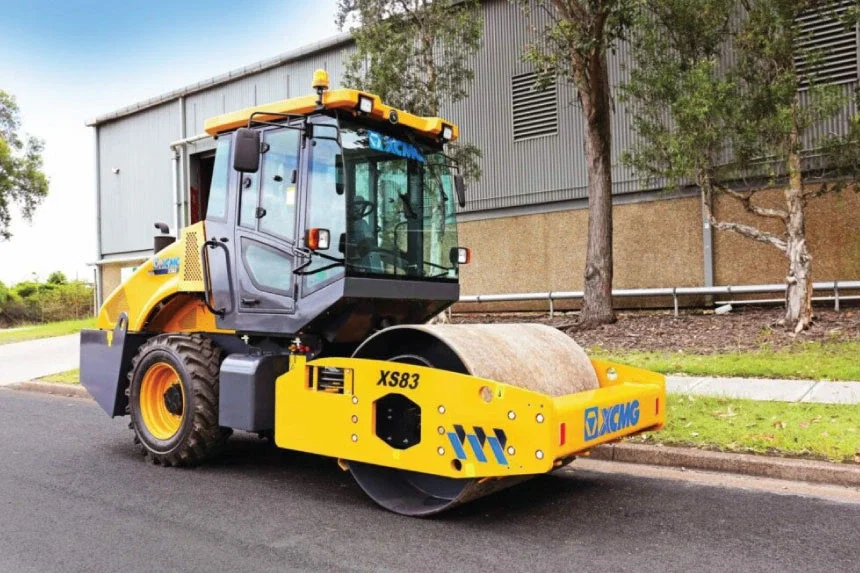

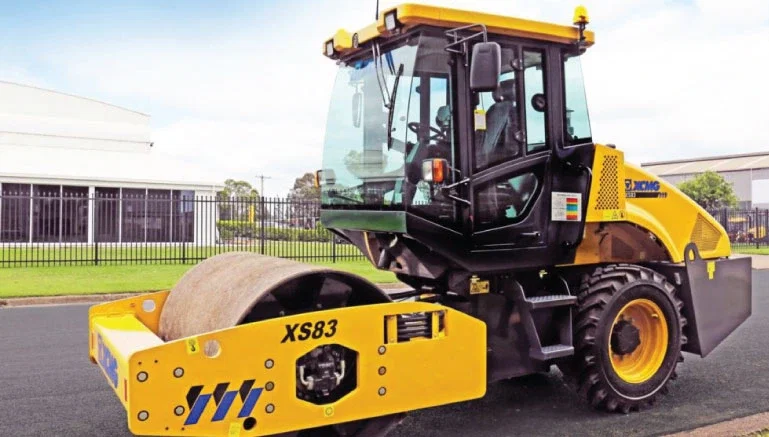

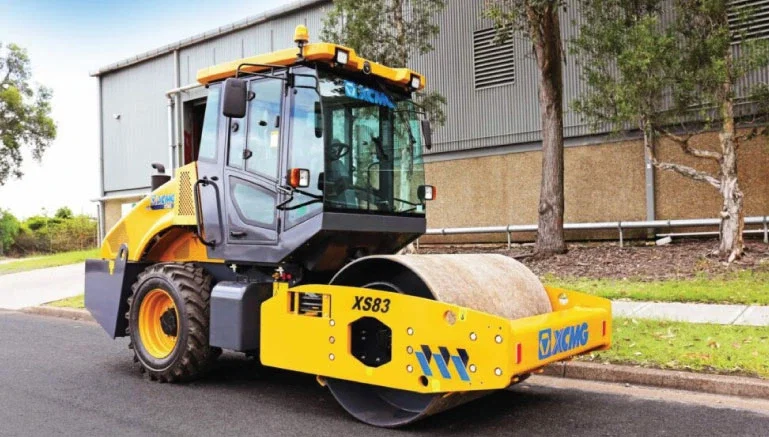

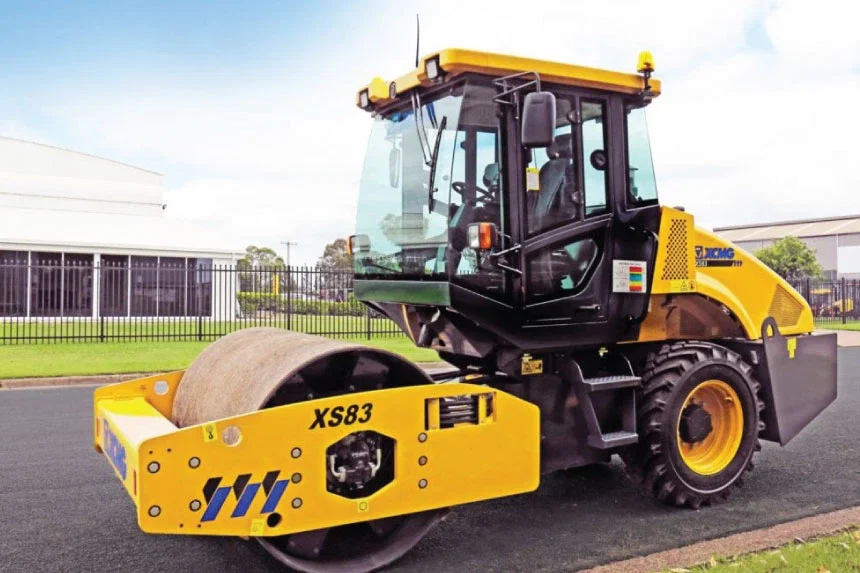

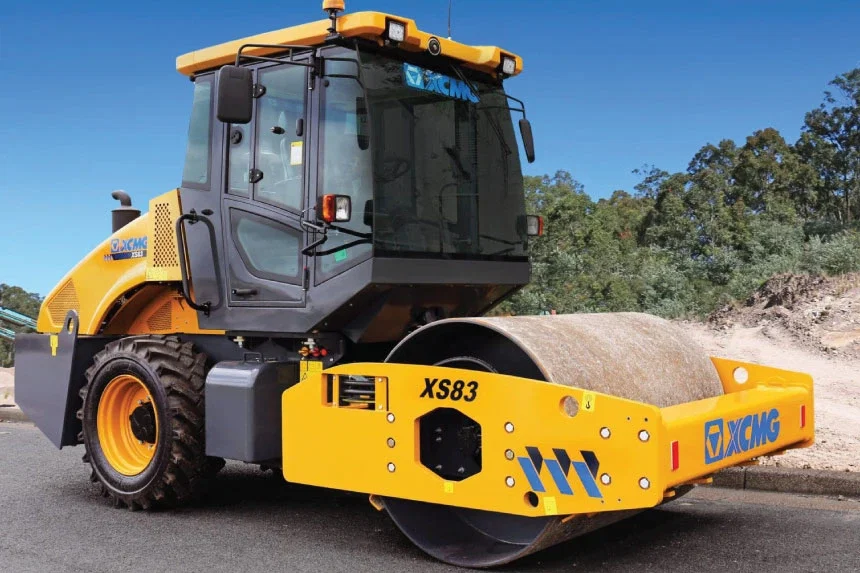

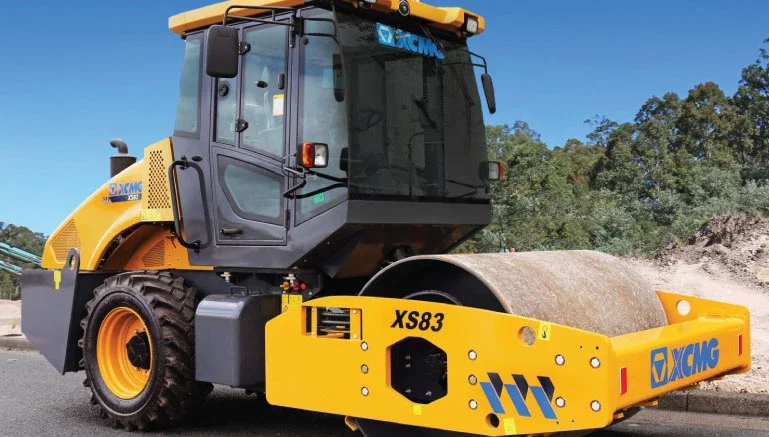

XS83 / XS83PD Vibratory Roller Overview
The XCMG XS83 vibratory road roller is a new generation of technology and maximised performance. XCMG makes full use of its international R&D platform to integrate global technology and produce completely independent roller designs.
As a result, the XS83 roller is uniquely powerful, rugged, energy efficient, safe and consistent – as well as being simple to maintain. With worldwide renown for its performance and value for money, the XS83 is the ideal solution for customers seeking an 8 tonne roller solution for any application or industry.
Equipped with a Tier 3 emission Cummins engine, premium hydraulic system and XCMG wet type drive axle, the entire roller offers significant advantages relating to reliability, efficiency, comfort and control
Performance & Features
Engine
- Cummins QSF3.8 water-cooled turbocharged engine with high power reserve, low fuel consumption and low noise emission.
- Proportional ASC closed loop hydraulic drive system composed of variable displacement pump and constant motor – ensures better drive performance and gradeability.
EFFICIENT & PRODUCTIVE
- Medium wet type axle with anti-slip differential provides automatic torque allocation and max traction to suit the road condition.
- Variable displacement piston pump and constant displacement hydraulic motor result in dual vibrating frequency and amplitude for excellent compaction.

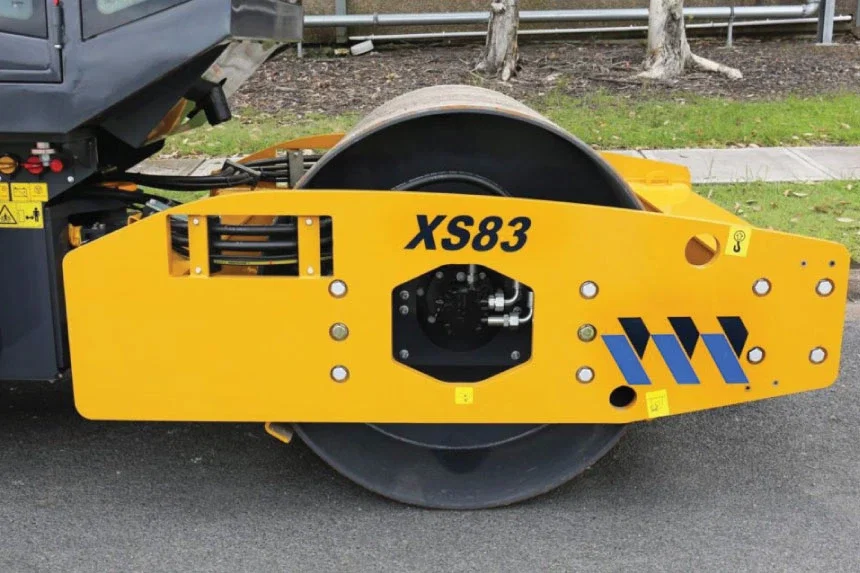

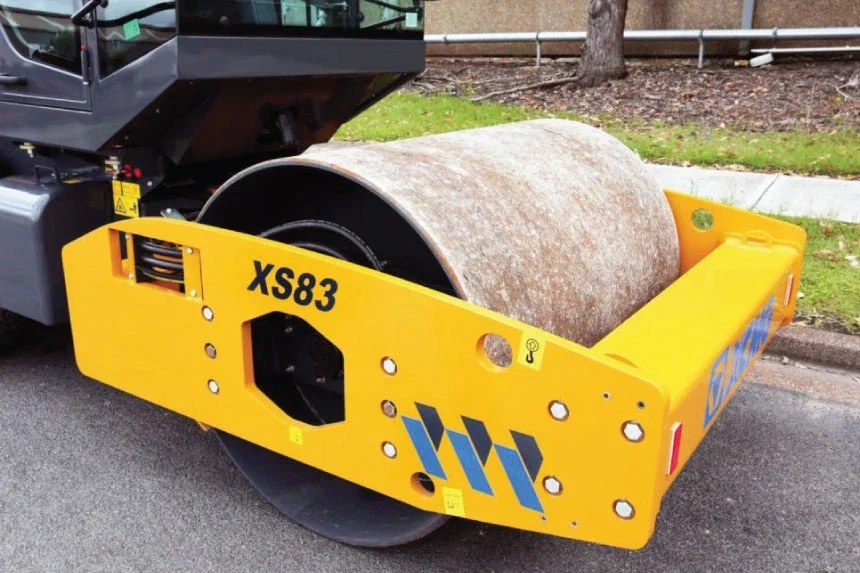

- Inner-cylinder drum chamber is simple and robust for excellent performance, long lifetime and high reliability.
COMPACT

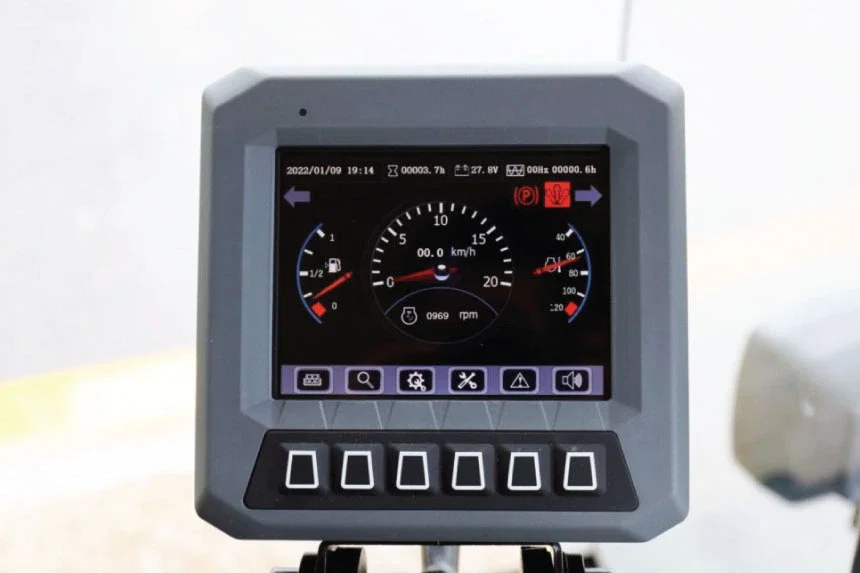

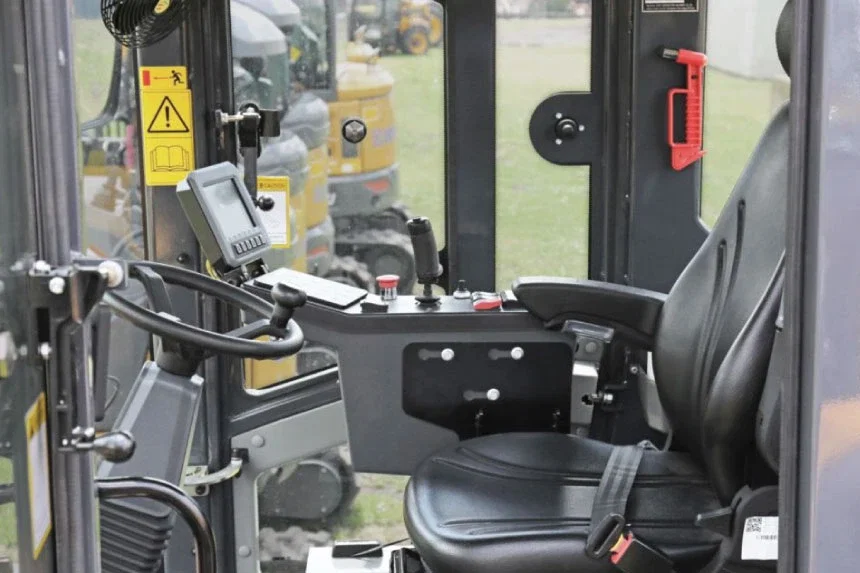

- Ergonomic cabin with air conditioning, CANBUS joystick controls, control box integrated colour display, suspension seat and much more, for easy operation in maximum comfort.

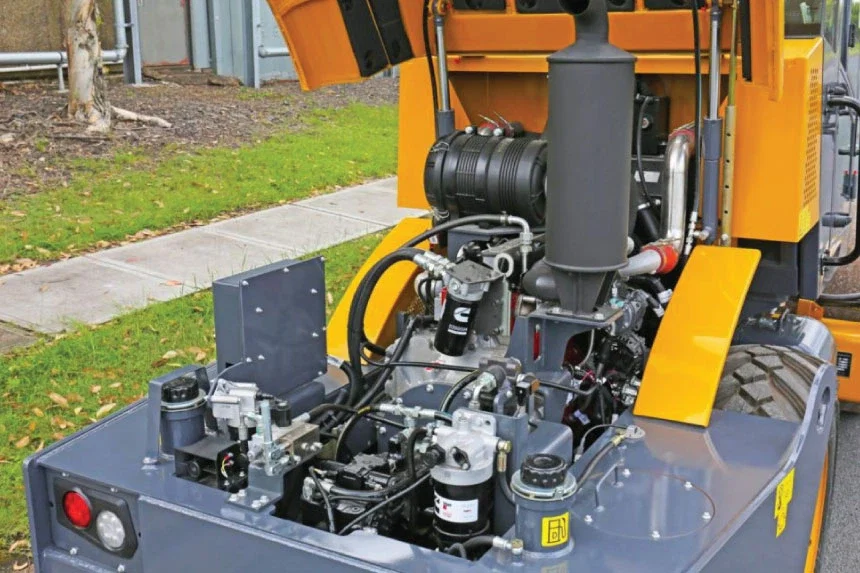

- Engine hood tilts forward expansively and easily (push button) for better access to the maintenance parts.
Machine Specifications
Key Performance Specs - XS83
Engine:
Cummins QSF3.8
Engine Type:
Electronic Water-Cooled
Rated Power:
74 kW / 99 HP
Rated Speed:
2200 RPM
Operating Weight:
8000 kg (approx)
Front Axle Weight:
3800 kg
Rear Axle Weight:
4200 kg
Static Linear Load:
221.7 kg/cm
Operating Speeds:
0-5 / 0-11 km/h
Theoretical Gradeability:
50 %
Min Turn Radius (internal / external):
4800 / 5860 mm
Ground Clearance:
270 mm
Wheel Base:
2680 mm
Braking Distance:
3.9 m
Additional Specs - XS83
Drum Type:
Smooth
Vibration Frequency:
30/35 Hz
Nominal Amplitute:
1.8 / 0.9 mm
Exciting Force (High/Low):
125 / 85 kN
Drum Diameter:
1220 mm
Drum Width:
1680 mm
Charge Pressure of Drive System:
2.4 MPa
Relief Pressure of Drive System:
38 MPa
Relief Pressure of Vibration System:
30 MPa
Relief Pressure of Steering System:
14 MPa
Tyre Spec:
405/70-24-16PR EMR1
Ply Rating:
16
Air Pressure:
380-400
Steering Angle:
+- 33 Degrees
Oscillation Angle:
+- 10 Degrees
Key Performance Specs - XS83PD
Engine:
Cummins QSF3.8
Engine Type:
Electronic Water-Cooled
Rated Power:
74 kW / 99 HP
Rated Speed:
2200 RPM
Operating Weight:
8730 kg (approx)
Front Axle Weight:
4530 kg
Rear Axle Weight:
4200 kg
Static Linear Load:
-
Operating Speeds:
0-5 / 0-11 km/h
Theoretical Gradeability:
50 %
Min Turn Radius (internal / external):
4800 / 5860 mm
Ground Clearance:
330 mm
Wheel Base:
2680 mm
Braking Distance:
3.9 m
Additional Specs - XS83PD
Drum Type:
Padfoot
Vibration Frequency:
30/35 Hz
Nominal Amplitute:
1.5 / 0.75 mm
Exciting Force (High/Low):
125 / 85 kN
Drum Diameter:
1220 mm
Drum Width:
1680 mm
Charge Pressure of Drive System:
2.4 MPa
Relief Pressure of Drive System:
38 MPa
Relief Pressure of Vibration System:
30 MPa
Relief Pressure of Steering System:
14 MPa
Tyre Spec:
405/70-24-16PR EMR1
Ply Rating:
16
Air Pressure:
380-400
Steering Angle:
+- 33 Degrees
Oscillation Angle:
+- 10 Degrees
