Quick Specs
Overall Width
3190 mm
Flow Rate
2 x 259 LPM
Op Weight
30800 kg
Engine
Cummins

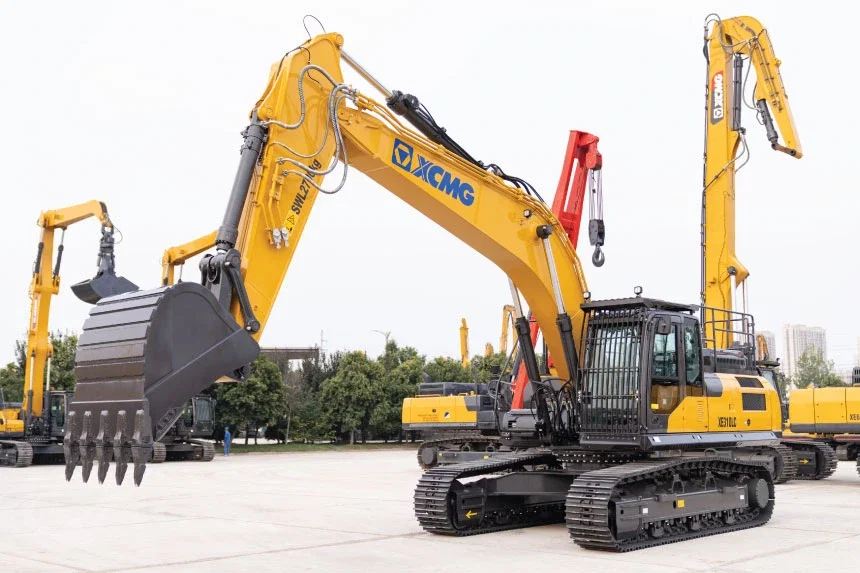

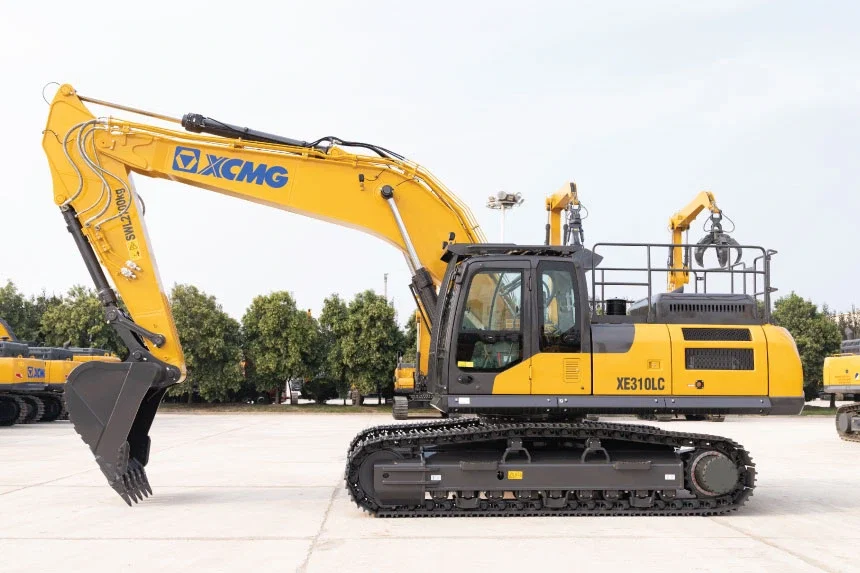

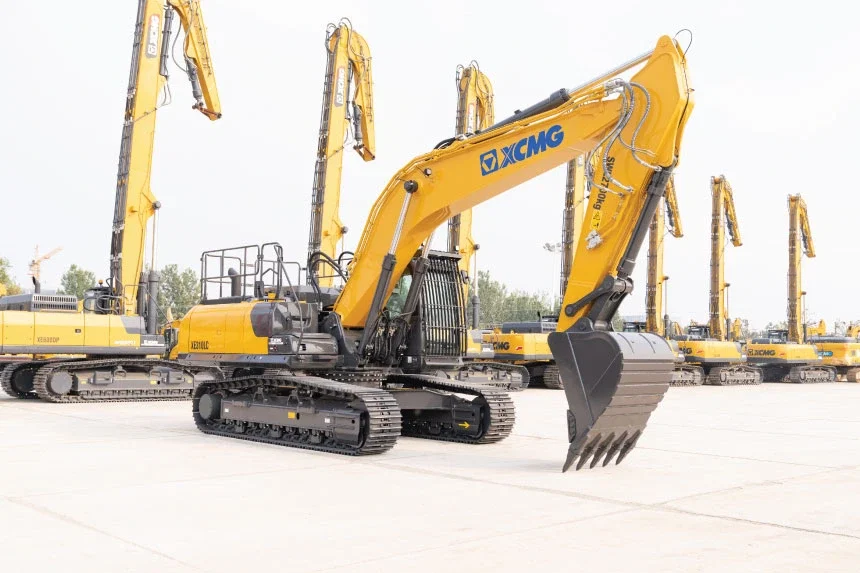

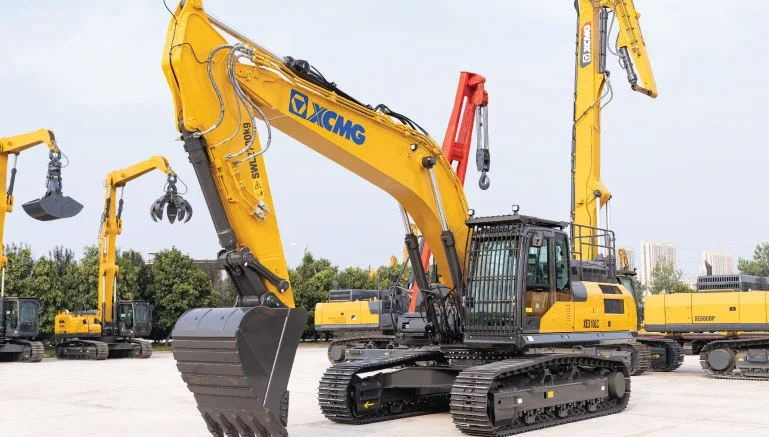

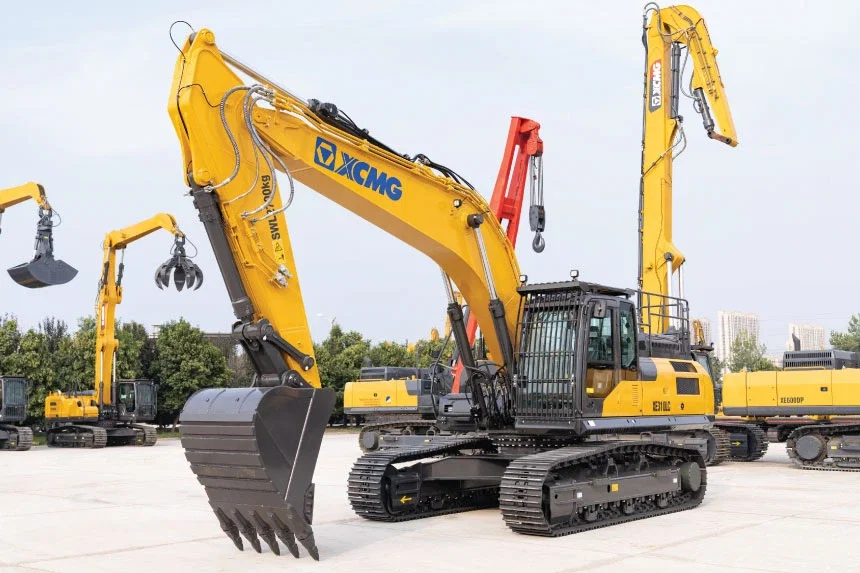

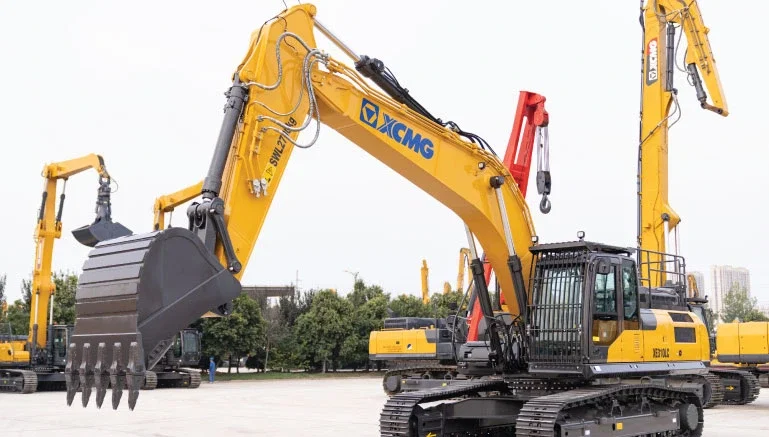

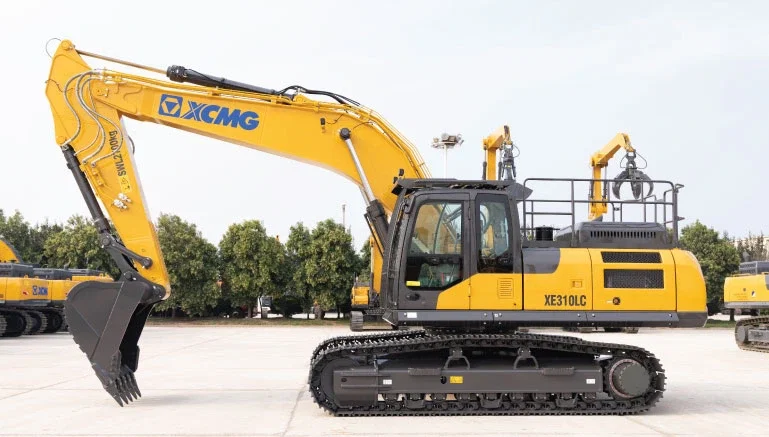

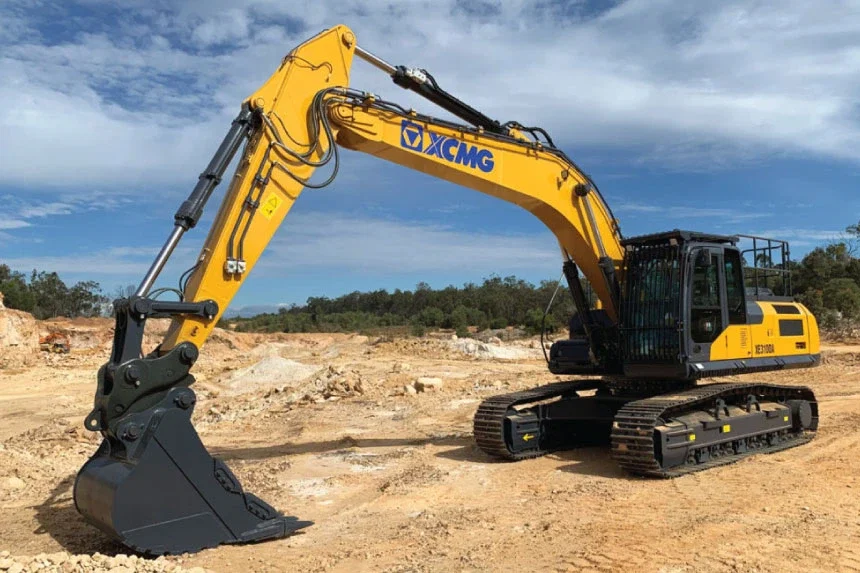

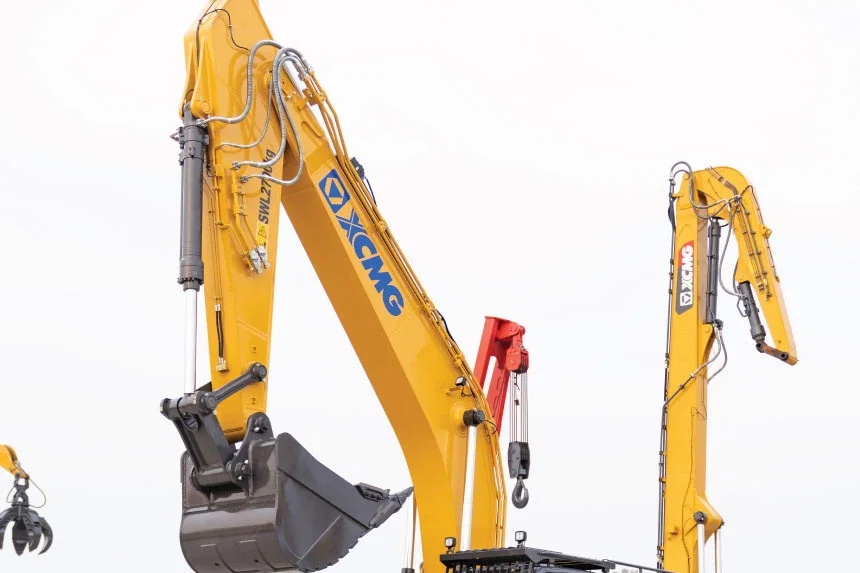

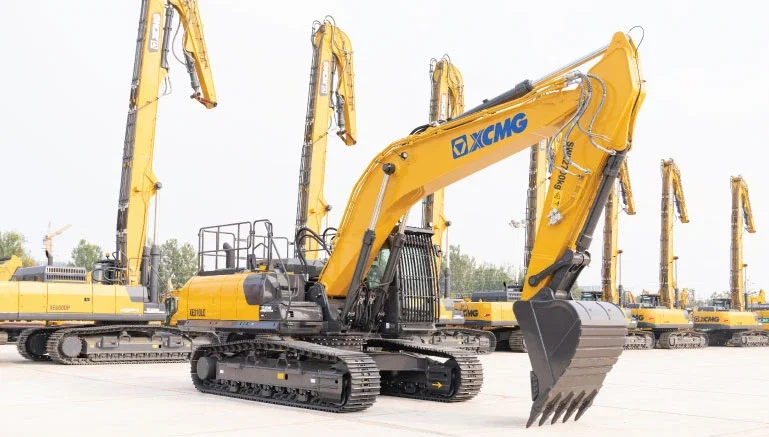

XE310LC Excavator Overview
With a powerful Cummins QSB7 engine and premium quality componentry throughout, the XE310LC delivers impressive and durable performance.
The XE310LC excavator is exceptionally designed and manufactured and suitable for use on a wide range of worksites: mining, excavation, leveling, loading, trenching, crushing, drilling, clamping, lifting, and much more.
With high quality structural components, exceptional hydraulic capability and overall premium performance and reliability, the XCMG XE310LC excavator is the ideal machine for any operator seeking a value-for-money excavator in the 30-35 tonne size class.
Outstanding Features
Key Features
- Ecological and economical
- Multiple applications
- Comfortable operating experience
- Excellent after-sales service
- Convenient maintenance
- Safe and durable
Green Friendly
- Environment friendly engine
- Redox and exhaust gas recirculation technology
- Reduced emissions

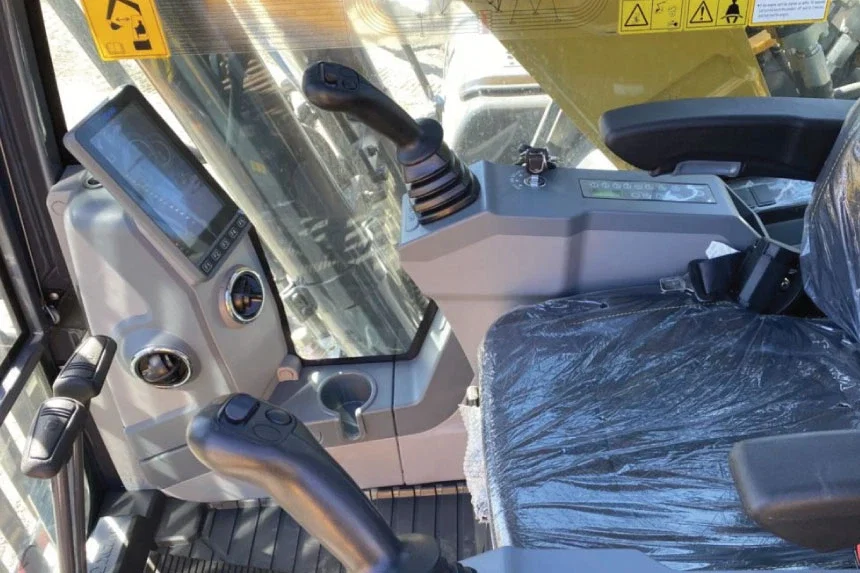

Interior Features
- Comfortable cab and operation
- Air conditioner and heater
- Ergonomic air suspended seat up to 150kg capacity
Technology
- New generation instruments
- High end 7 inch large screen display
- High resolution reverse camera display
- Simple controls and excellent visibility for monitoring performance
Machine Specifications
Key Performance Specs
Operating Weight:
30800 kg
Engine:
Cummins QSB7
Power:
169kW / 226HP
Max Torque:
895 / 1250 Nm
Max Speed:
3.1km/h
Hydraulic Flow:
2×259 LPM
Dig Depth & Reach:
7200 / 10146 mm
Bucket / Arm Digging Force:
198 / 138 kN
Overall Width:
3190 mm
Track Width:
600 mm
Track Type:
Steel
Additional Specs
Main Pump Type:
Kawasaki
Main Valve:
Kawasaki
Cab:
FOPS / ROPS / Air Conditioned
Emergency Stops:
Included
Buckets:
Enquire
Radio:
AM/FM + USB
Display Screen:
Included
Seat:
Air Suspension
Reverse Camera:
Yes
Work Light + Reversing Alarm Light:
Included
