Quick Specs
Bucket Capacity
0.47 m3
Rated Power
61.3 kw
Rated Load
1100 kg
Operating Weight
4750±100 kg

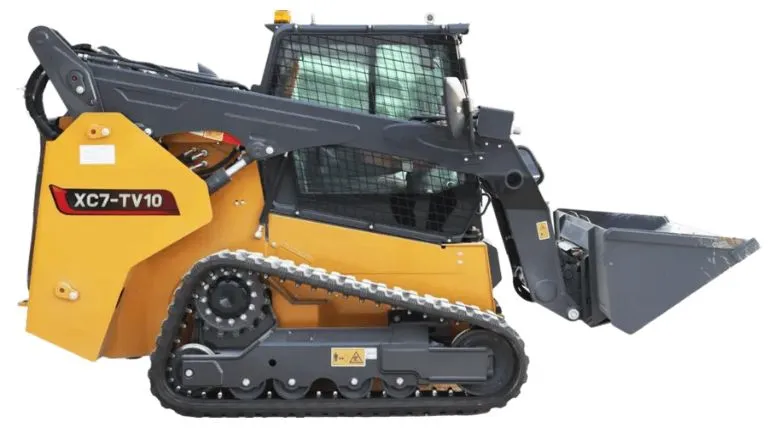

XC7-TV10 Skid Steer Loader Overview
Powered by a 61.3 kW Tier III Yanmar engine, the XC7-TV10 has a ROPS/FOPS-certified cab, suspension seat and standard EH controls with ISO/H mode. Its hydrostatic transmission offers responsive drive, two-speed travel and hydraulic-release parking brakes. An efficient axial-piston pump, high-flow hydraulics, third-function valve and ISO-compatible quick coupler support fast changes between work-tool attachments.
Machine Specifications
Key Performance Specs
Model:
XC7-TV10
Engine:

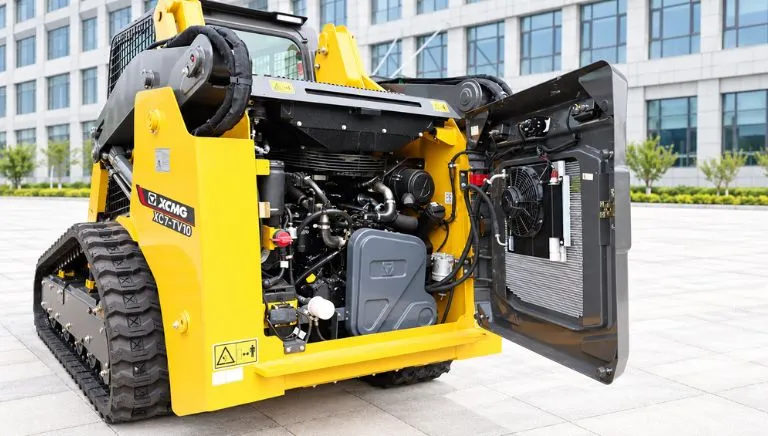

Yanmar 4TNV98T Turbo Stage III
Rated Power:
61.3 kW @ 2,500 rpm
Emission:
Tier III
Rated Load:
≥ 1,100 kg
Tipping Load:
≥ 3,143 kg
Operating Weight:
4,750 ± 100 kg
Maximum Lifting Capacity:
3,765 kg (3.76 t)
Maximum Digging / Breakout Force:
28.5 ± 2 kN
Maximum Traction Force:
28.5 ± 2 kN
Drive System:
Two-speed travel
Travel Speed (Single / Dual):
9 ± 1 / 14 ± 1 km/h
Maximum Driving Speed:
14 km/h
Bucket Capacity:
0.47 m3; 0.6 m3 (stack height)
Overall Dimensions:
3,935 × 2,000 × 2,095 mm
Additional Specs
Cabin:

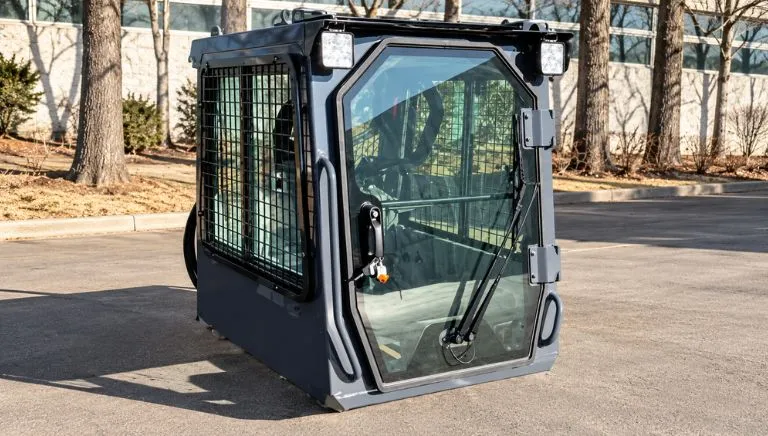

ROPS & FOPS air-conditioned cabin
Controls:
Electronic control system
Operation:
Electro-hydraulic proportional control

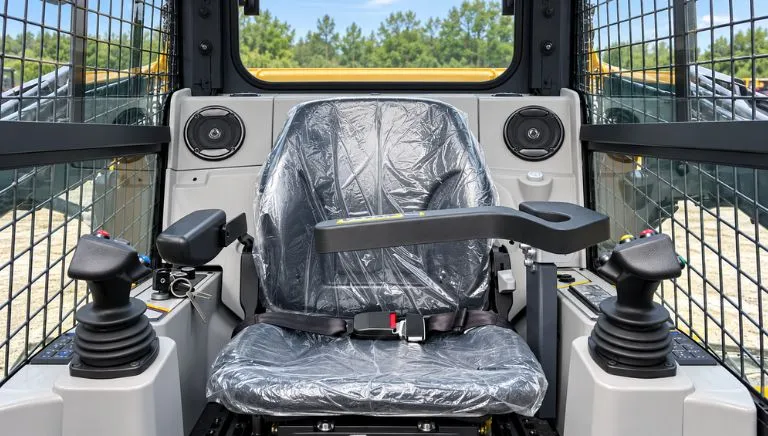

Seat:
Mechanical suspension seat
Quick Hitch:
Hydraulic quick hitch
Track Specifications:
400 × 86BC
Standard Hydraulic Flow:
80 L/min
Combined Hydraulic Flow:
120 L/min
Hydraulic Flow Range:
95–142.5 L/min
Hydraulic Pressure:
230 ± 10 bar
Cycle Time:
≤ 14 s
Auxiliary Hydraulics:
Auxiliary flow lock function
Fuel Tank:
105 L
Hydraulic Tank:
50 L
Length Without Bucket:
2,880 mm
