Quick Specs
Overall Width
3224 mm
Flow Rate
2 x 306 LPM
Op Weight
38200 kg
Engine
Cummins

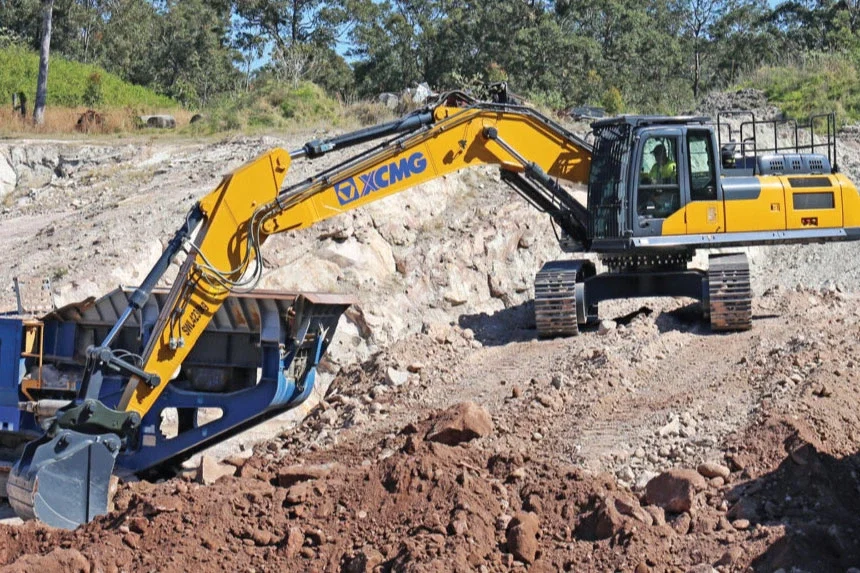

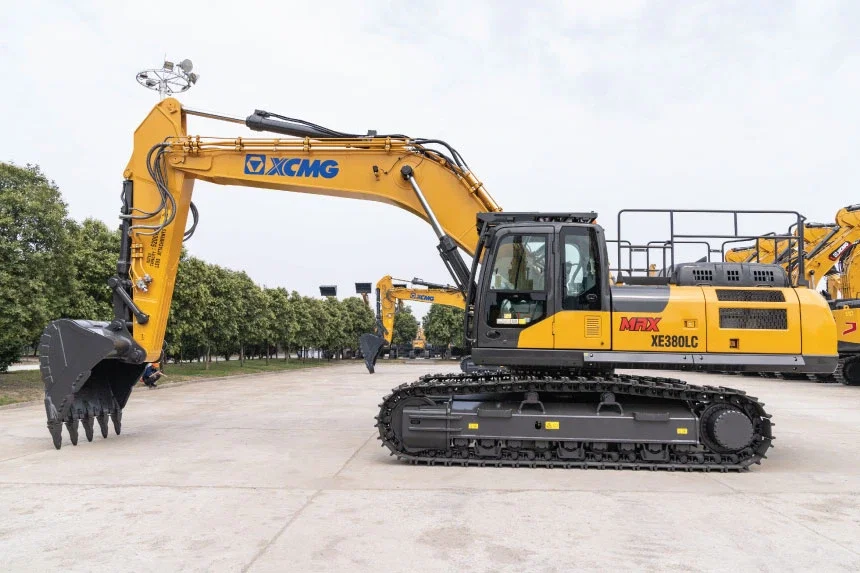

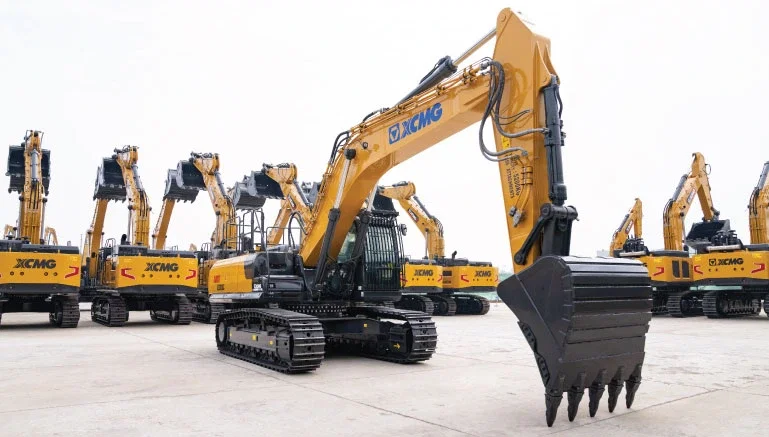

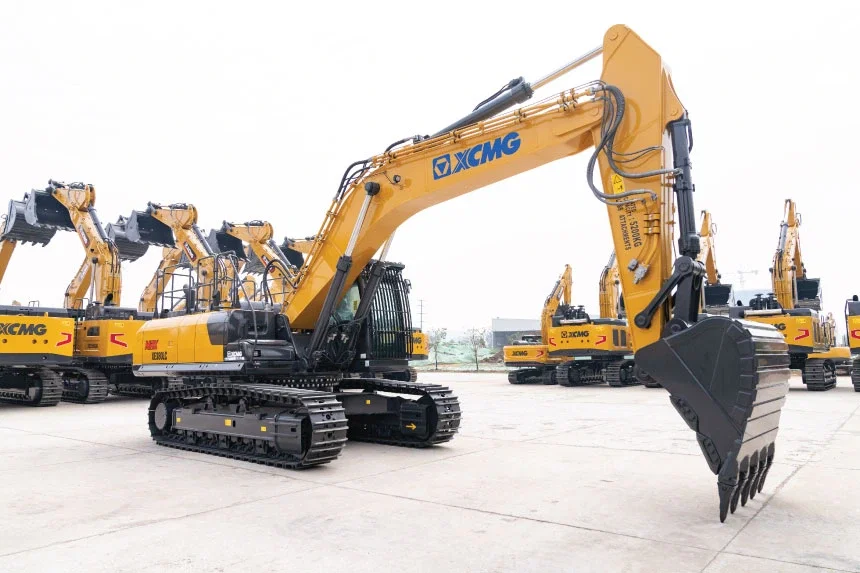

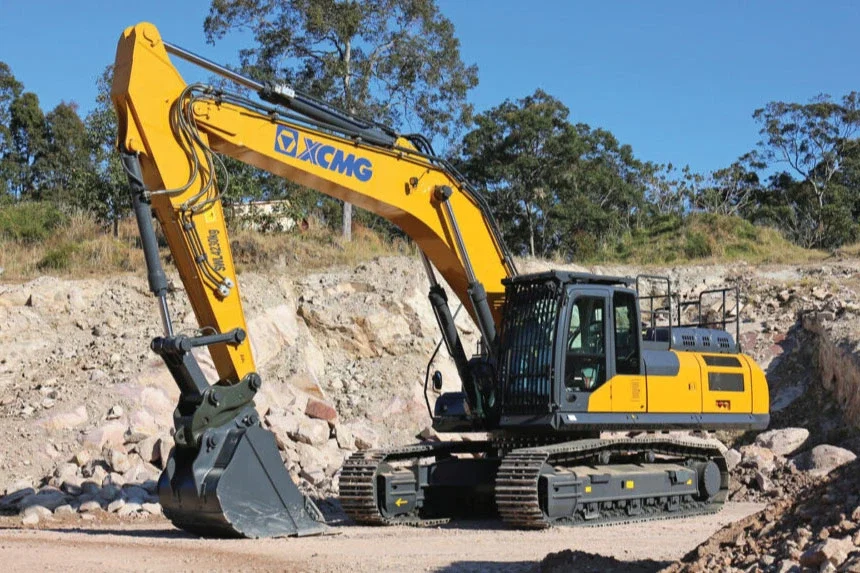

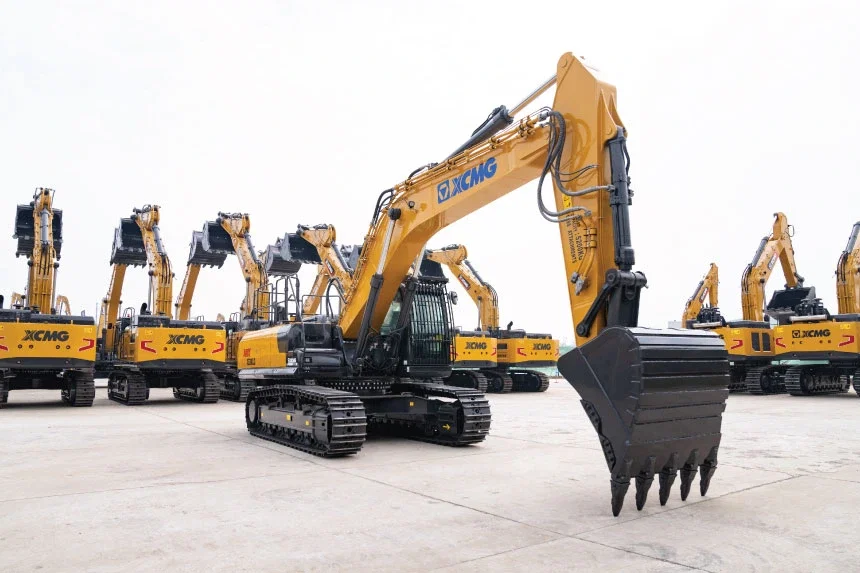

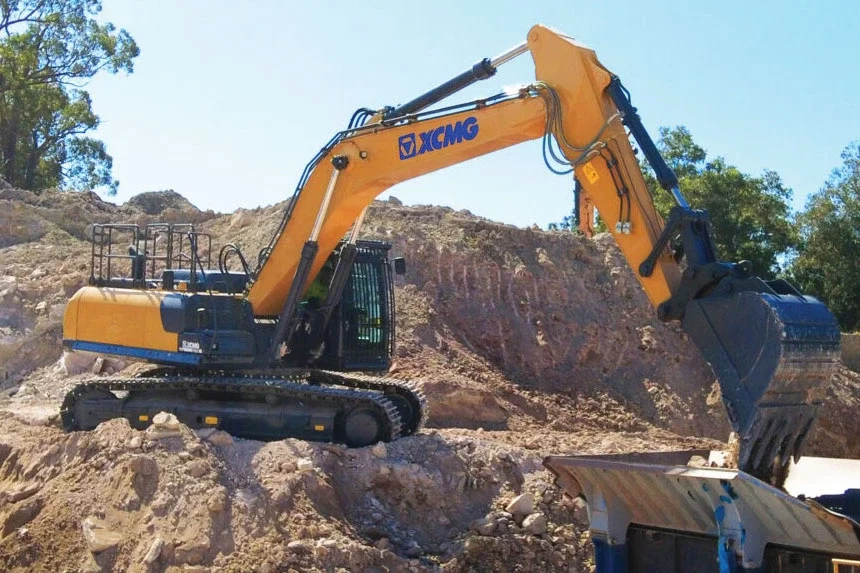

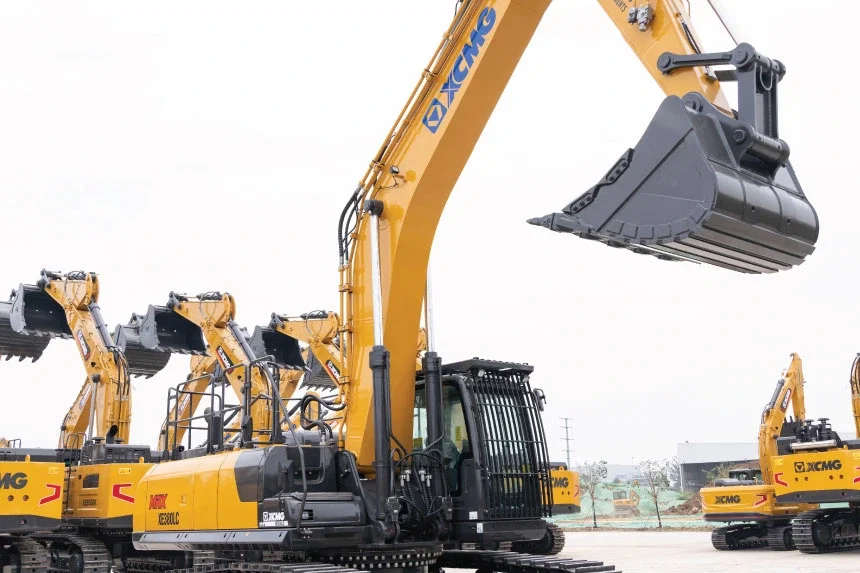

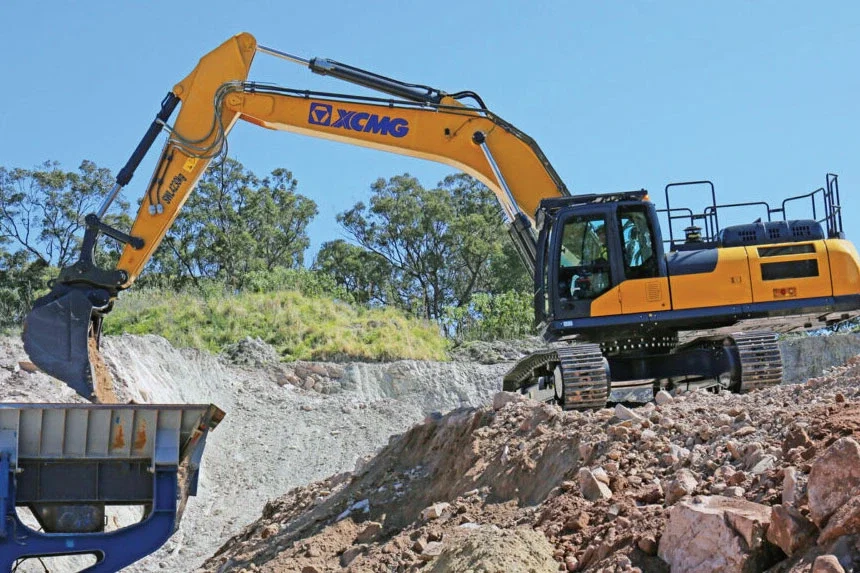

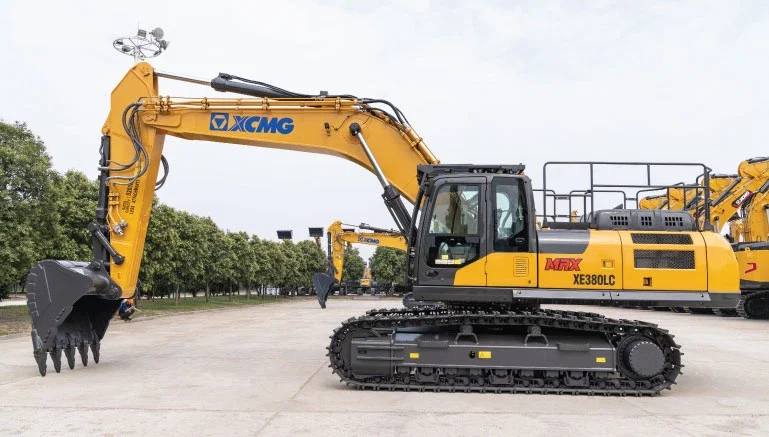

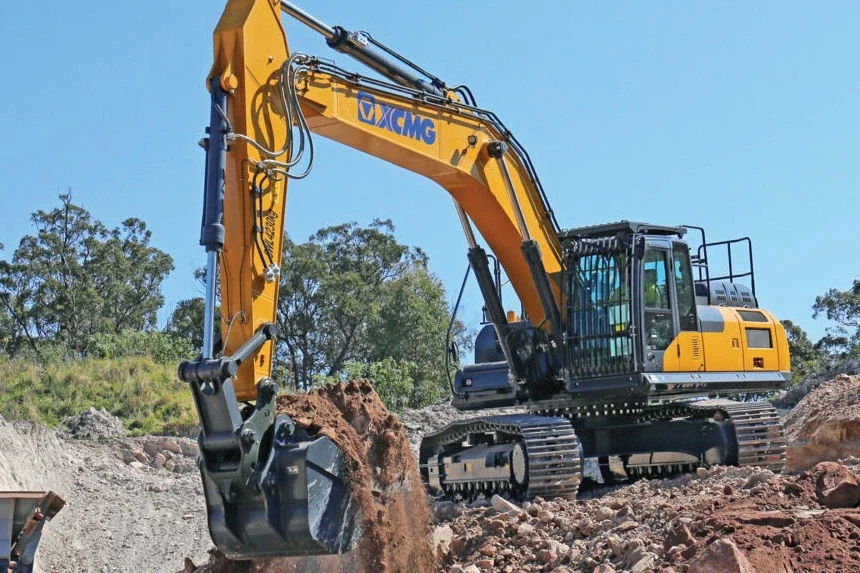

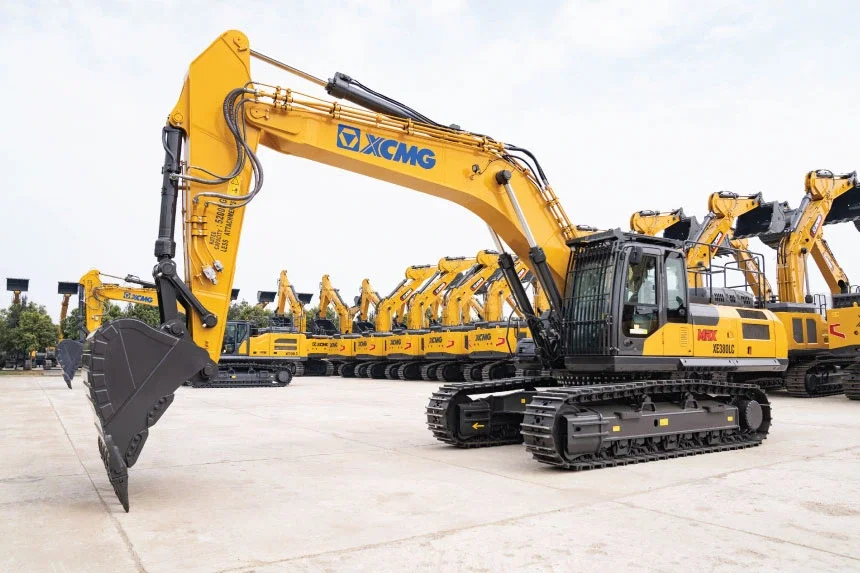

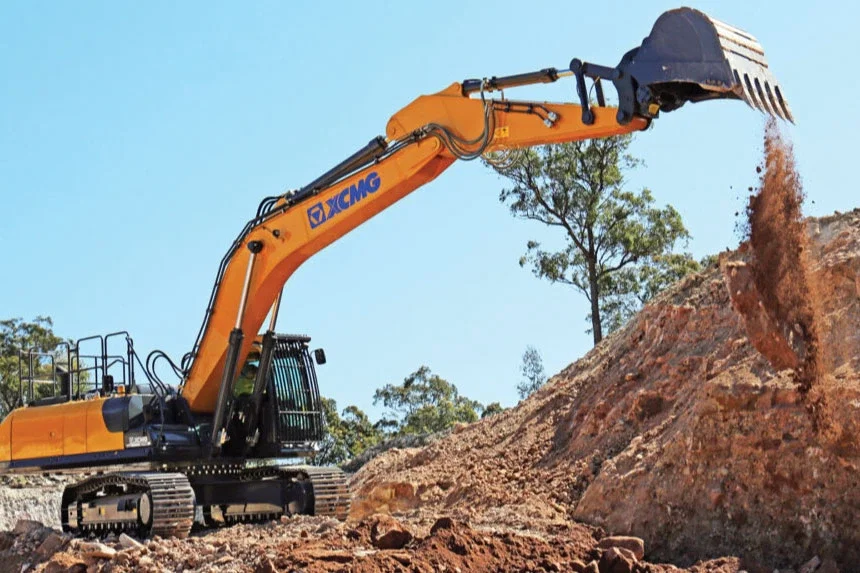

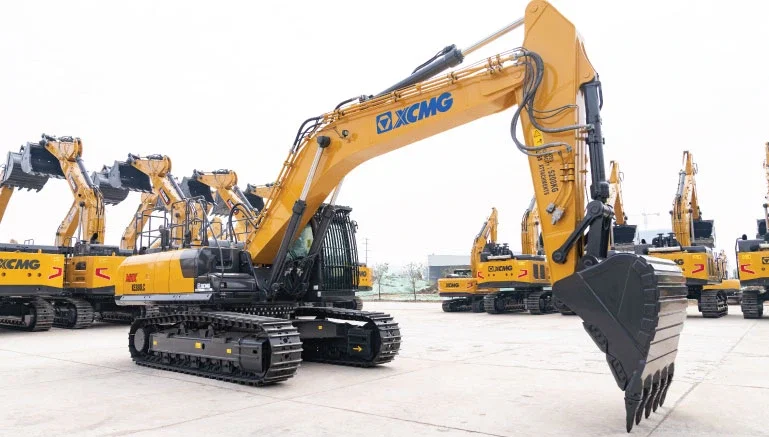

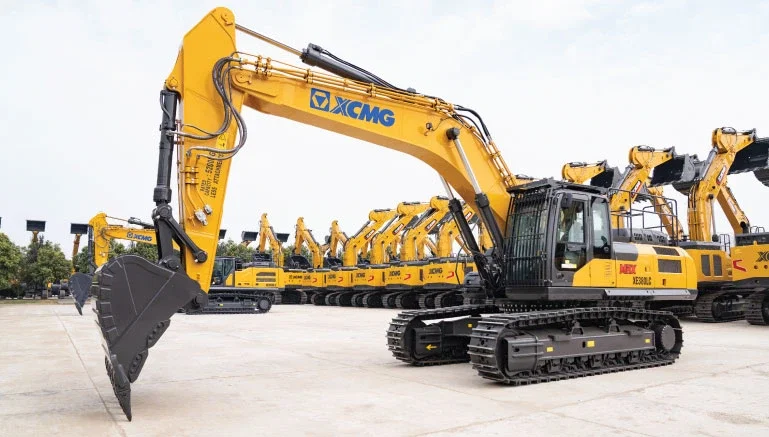

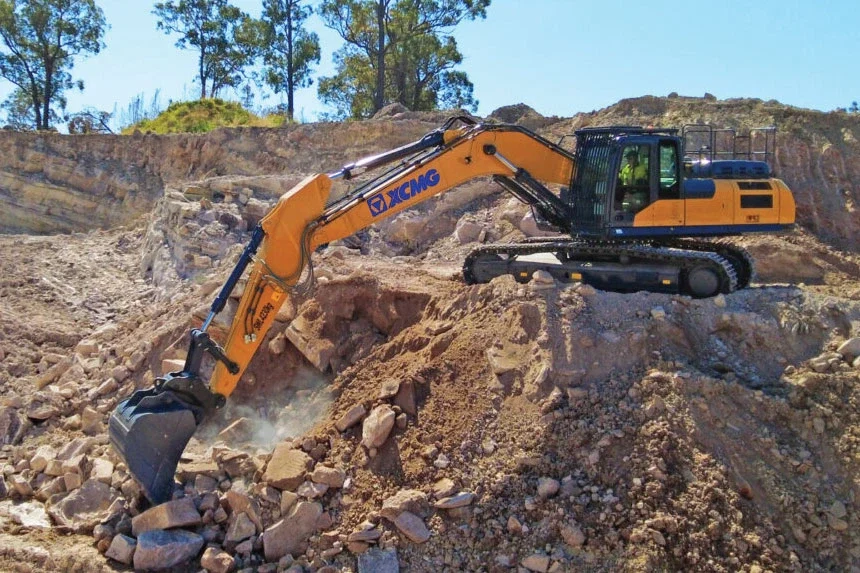

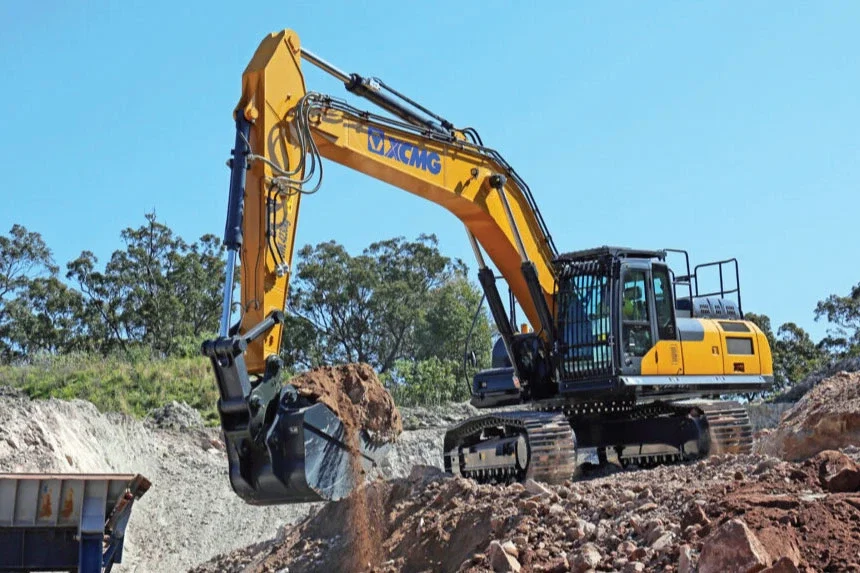

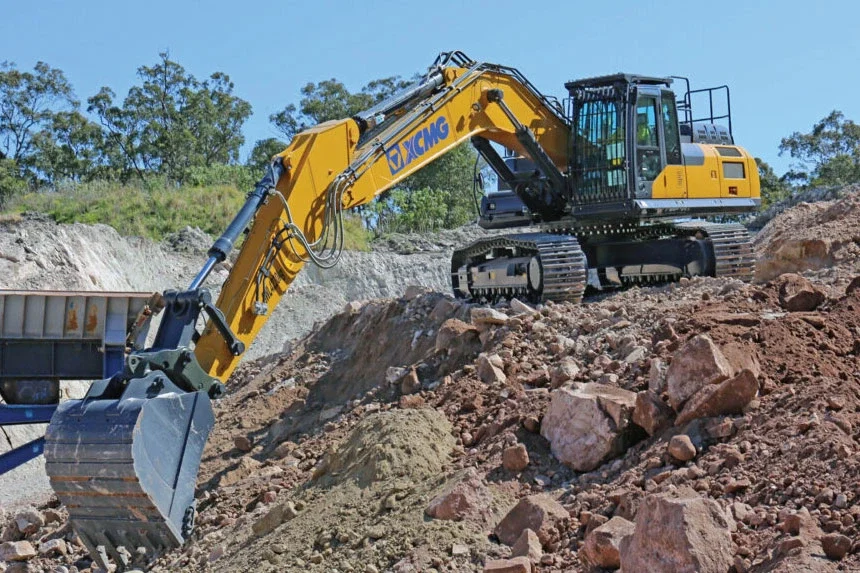

XE380LC Excavator Overview
With a powerful 214kW engine and premium quality componentry throughout, the XE380LC delivers impressive, reliable and durable performance.
The XE380LC excavator is perfectly designed and manufactured for a wide range of worksites: mining, excavation, leveling, loading, trenching, crushing, drilling, clamping, lifting, and much more.
With high quality structural components, exceptional hydraulic capability and overall premium performance and reliability, the XCMG XE380LC excavator is the ideal machine for any operator seeking a value-for-money excavator in the 35-40 tonne size class.
Outstanding Features
Key Features
- Ecological and economical
- Multiple applications
- Comfortable operating experience
- Excellent after-sales service
- Convenient maintenance
- Safe and durable
Green Friendly
- Environment friendly engine
- Redox and exhaust gas recirculation technology
- Reduced emissions
Interior Features
- Comfortable cab and operation
- Air conditioner and heater
- Ergonomic air suspended seat up to 150kg capacity
Technology
- New generation instruments
- High end 7 inch large screen display
- High resolution reverse camera display
- Simple controls and excellent visibility for monitoring performance
Machine Specifications
Key Performance Specs
Operating Weight:
38200 kg
Engine:
Cummins QSL9
Power:
214kW / 287HP
Max Torque:
1344 Nm
Max Speed:
5.6km/h
Hydraulic Flow:
2×306 LPM
Dig Depth & Reach:
7283 / 10324 mm
Bucket / Arm Digging Force:
273 / 180 kN
Overall Width:
3224 mm
Swing Speed:
9.6 RPM
Dipper Length:
3200 mm
Boom Length:
6400 mm
Track Width:
600 mm
Track Type:
Steel
Additional Specs
Main Pump Type:
2 Piston Pumps
Cab:
FOPS / ROPS / Anti Roll / Air Conditioned
Emergency Stops:
Included
Buckets:
Enquire
Radio:
AM/FM + USB
Walking Motor:
Enquire
Seat:
Air Suspension 150kg
Reverse Camera:
Yes
Pressure Flow Monitor:
Adjustable
Walking / Slewing Alarm Device:
Included
Work Light + Reversing Alarm Light:
Included
Cab Hoisting Performance Table:
Included
Fuel Tank:
660L
