Quick Specs
Payload
41000 kg
Curb Weight
34000 kg
Overall Length
11070 mm

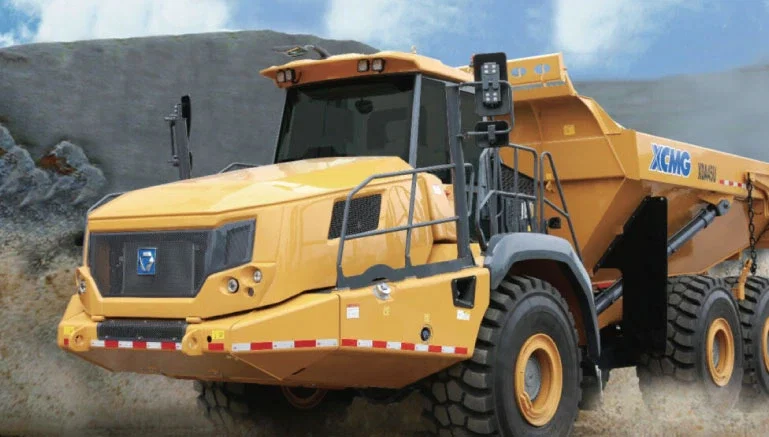

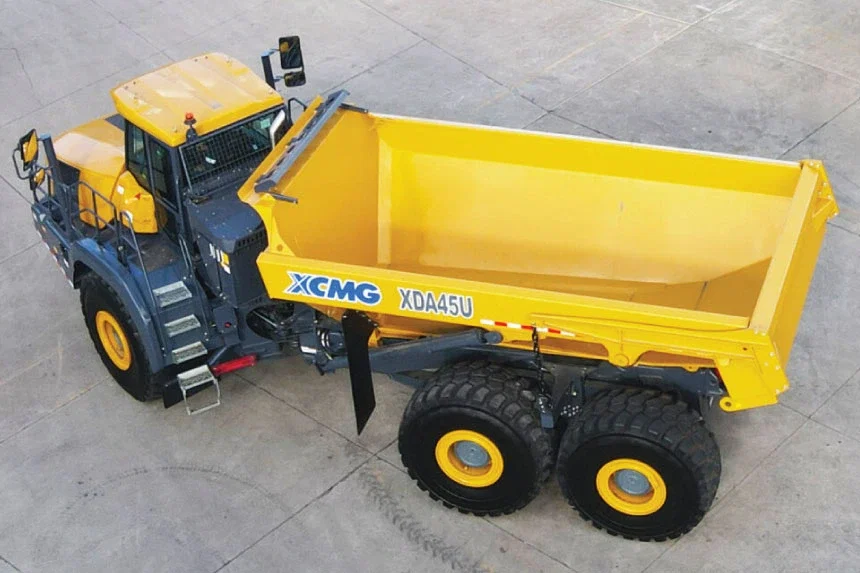

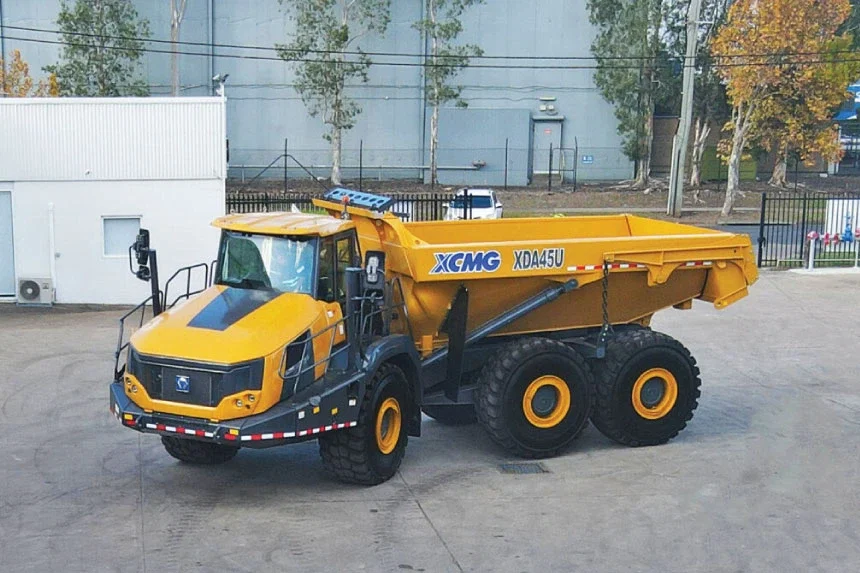

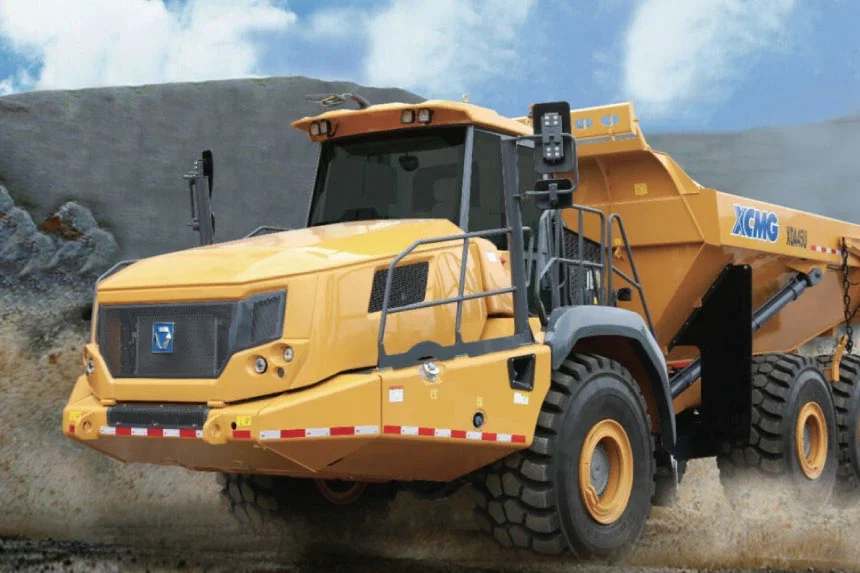

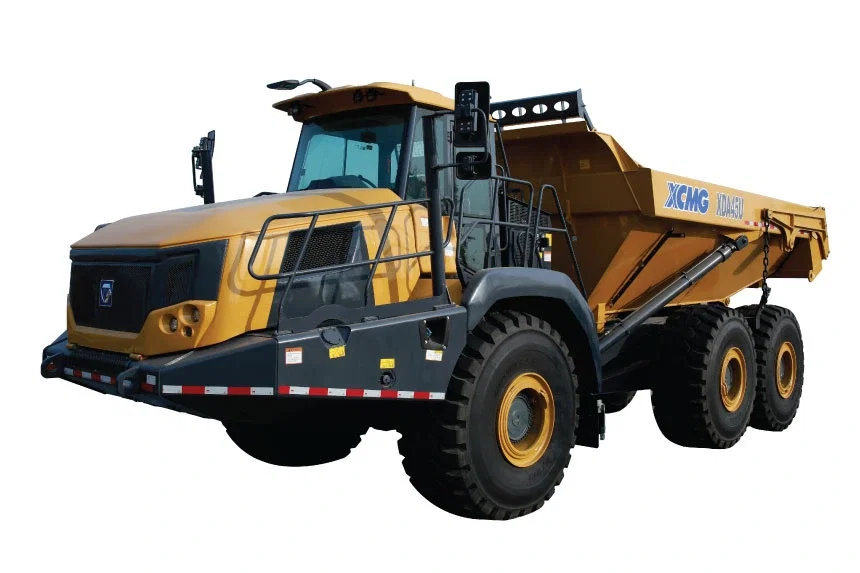

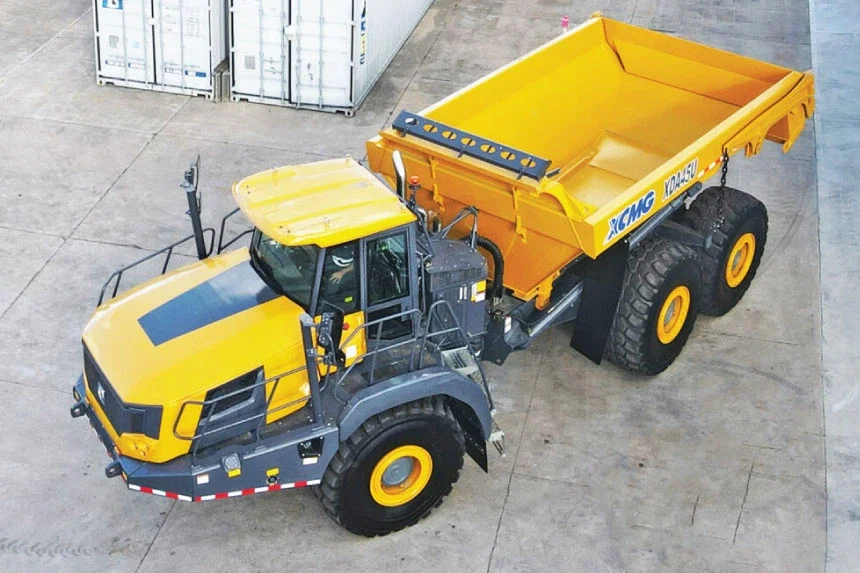

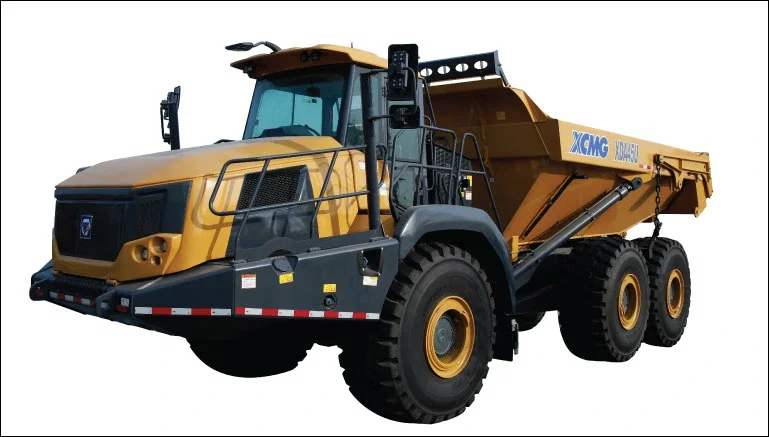

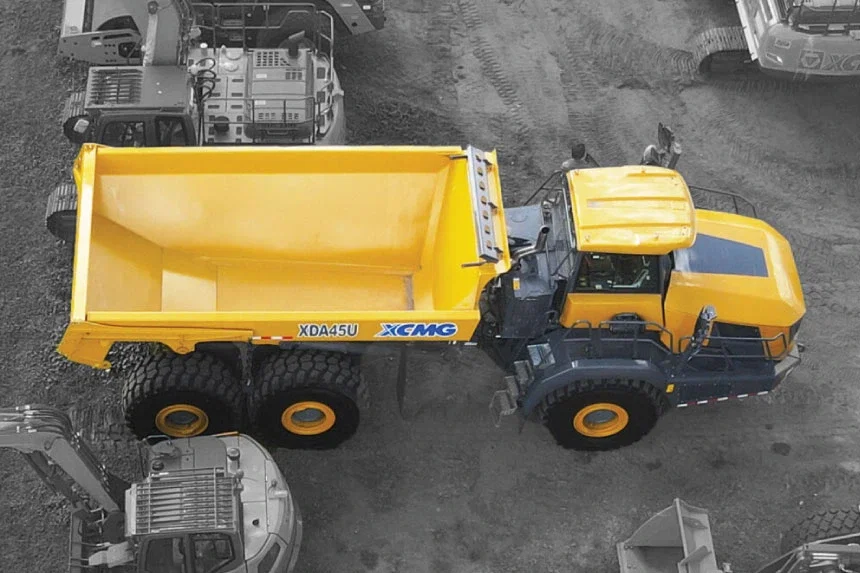

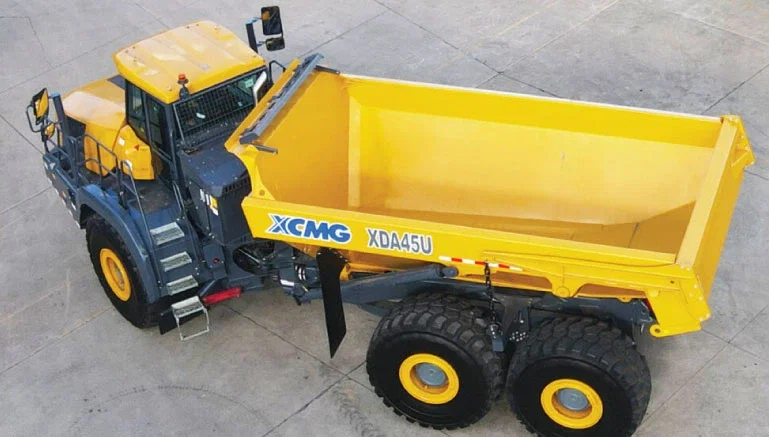

XDA45U Articulated Dump Truck Overview
The world-renowned 41-Tonne Payload XDA45U Articulated Dump Truck is designed for use in mining, quarry, water conservation, harbour, brown field and construction sites.
With a powerful drivetrain, superior hauling performance, and excellent manoeuvrability and efficiency, the XDA45U delivers exceptional results across a wide range of applications.
The XDA45U is also designed to run continuously in operating environments ranging from -25 degrees Celsius to 40 degrees Celsius, and meets Euro V emission standards.
Outstanding Features
Key Features
- Technically advanced powerful Benz engine that is specially designed for mining operation lowers fuel consumption and increases working efficiency.
- The pump controlling hydraulic system and load-sensitive steering system enhance system stability, quicken trouble shooting and save more energy.
Intelligent

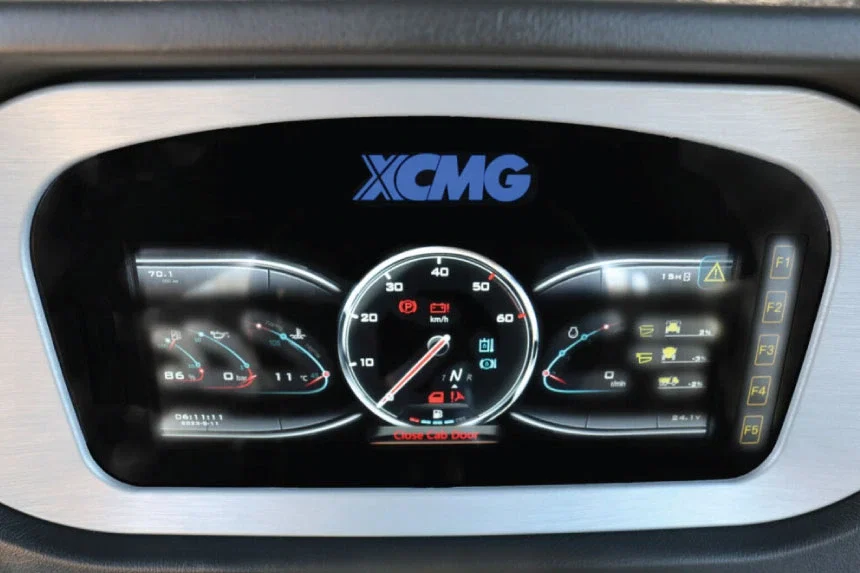

- The application of XCMG’s exclusive travel control strategy and fault analysis system makes the overall vehicle more intelligent.
- 6×6 drive and friction-disk type inter-wheel/inter-axle differential locks take passing performance, reliability and riding stability to a higher level.
ISO Standards

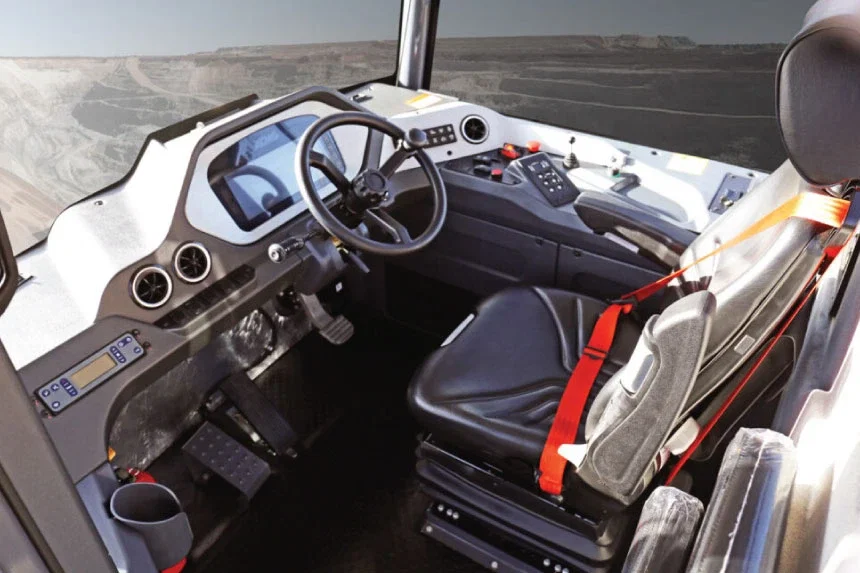

- ROPS & FOPS that meet ISO standards are equipped in driver’s cab, which enlarges interior space, broadens field of view range, secures driver’s working safety and increases comfort.
- Driver’s cab and engine hood are both flipping designs, and the cab is integrated with a centralised lubrication system, all these designs make maintenance more convenient and more efficient.
Machine Specifications
Key Performance Specs
Overall Length:
11,070 mm
Overall Width:
3,950 mm
Overall Height:
3,846 mm
Total Weight:
75,000 kg
Payload:
41,000 kg
Curb Weight:
34,000 kg
Additional Specs
Engine:
Benz OM471 (Germany)
Rated Power:
390 kw / 1600 rpm
Max Torque:
2600 Nm / 1300 rpm
Drive:
6 x 6
Max Speed:
51 km/h
Min Turning Clearance:
9275 mm
