Quick Specs
Bucket Capacity
0.65 m3
Rated Power
53.7 kw
Rated Load
1360 kg
Operating Weight
5150 kg

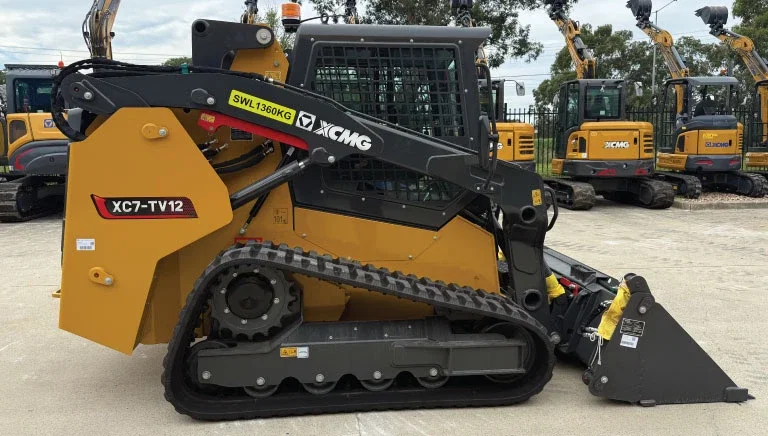

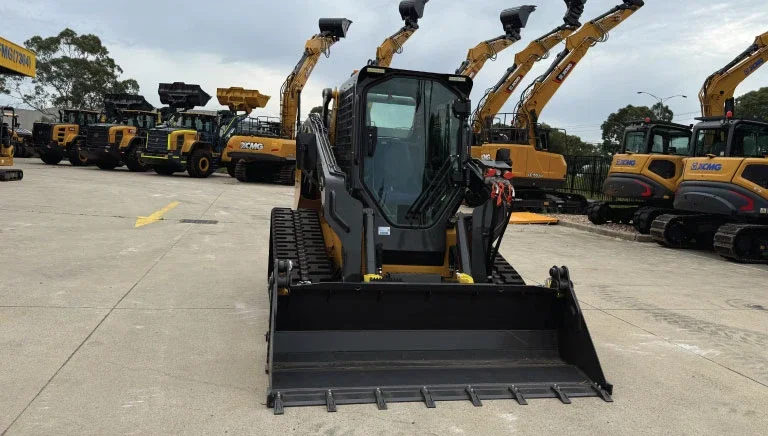

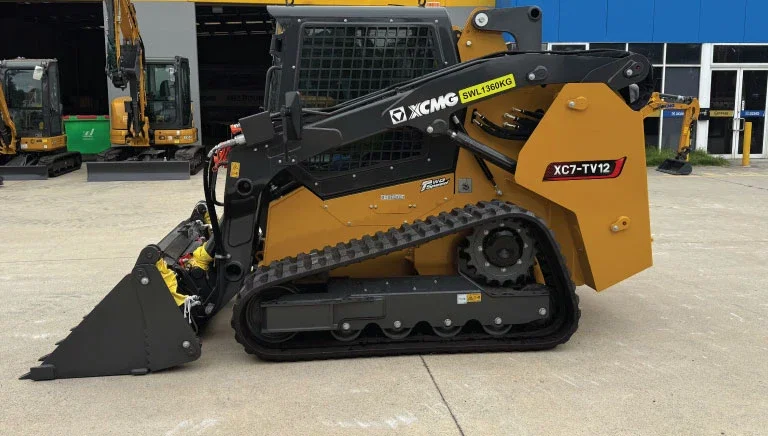

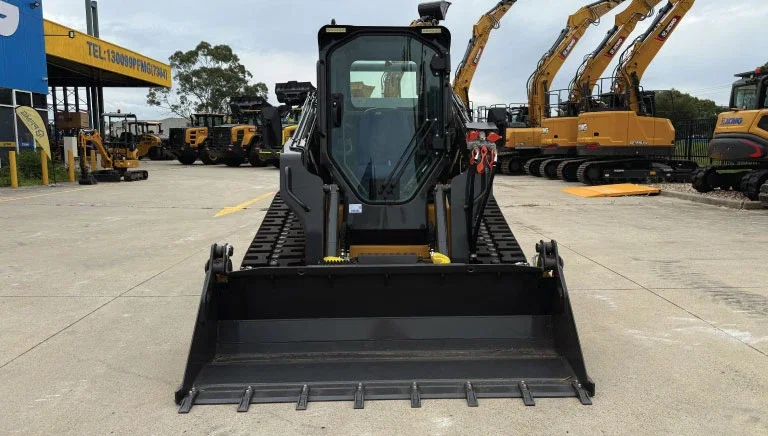

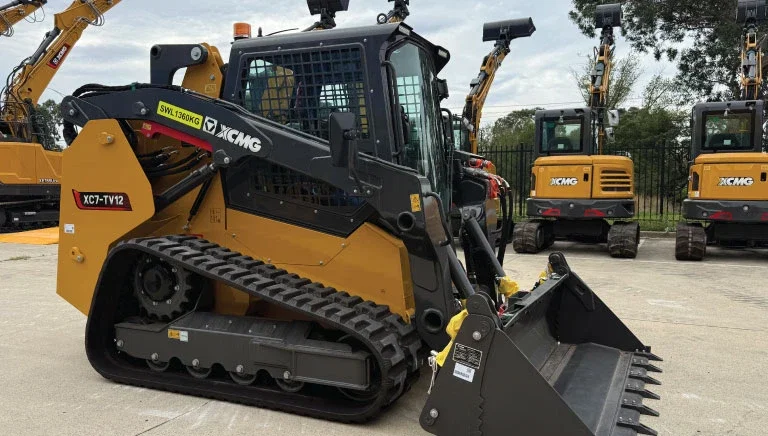

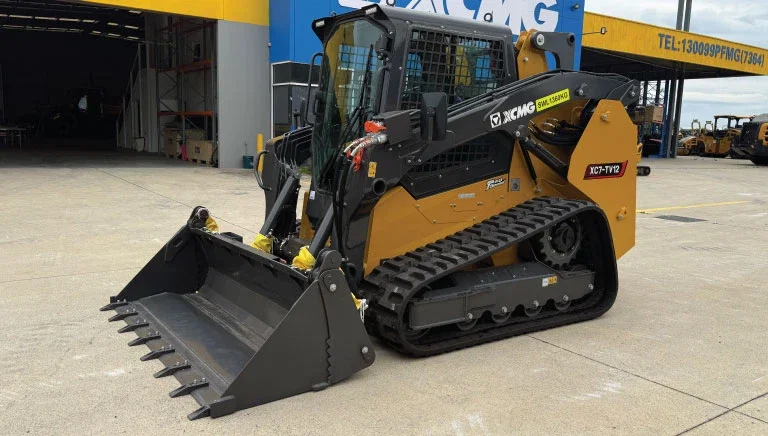

XC7-SR12 Skid Steer Loader Overview
XC7-TV12 is an innovative skid steer loader developed by XCMG based on the international R&D platform according to the needs of overseas market. With upgraded technology and improved performance, it can be used for a variety of applications such as road construction/maintenance/cleaning, buildings construction engineering, forestry, garden landscape, agriculture, slope paving/leveling, and lifting/handling.
Machine Specifications
Key Performance Specs
Model:
4TNV98T-ZCNTYBC
Type:
Water-colled, 4-cycle
Aspiration:
Turbocharged & air-to-air intercooled
Number of Cylinders:
4
Displacement:
3.319L
Gross Power:
61.3kW 2500r/min
Peak Torque:
269～293 N·m/1625±25 r/min
Fule System:
Direct injection
Air Cleaner:
dry type with double elements
Additional Specs
Fan drive:
Hydraulically driven
Operating weight:
5150kg±50
Rated operating capacity:
≥1360kg
Boom breakout force:
≥28KN
Bucket breakout force:
≥33KN
Cooling system:
40 L
Engine oil:
9.4 L
Hydraulic tank:
40 L
Hydraulic system total:
53 L
