Quick Specs
Overall Width
3190 mm
Flow Rate
2 x 304 LPM
Op Weight
36800 kg
Engine
Isuzu

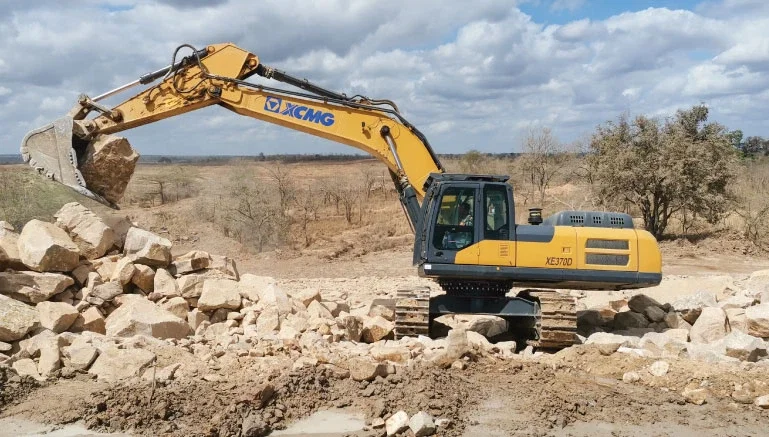

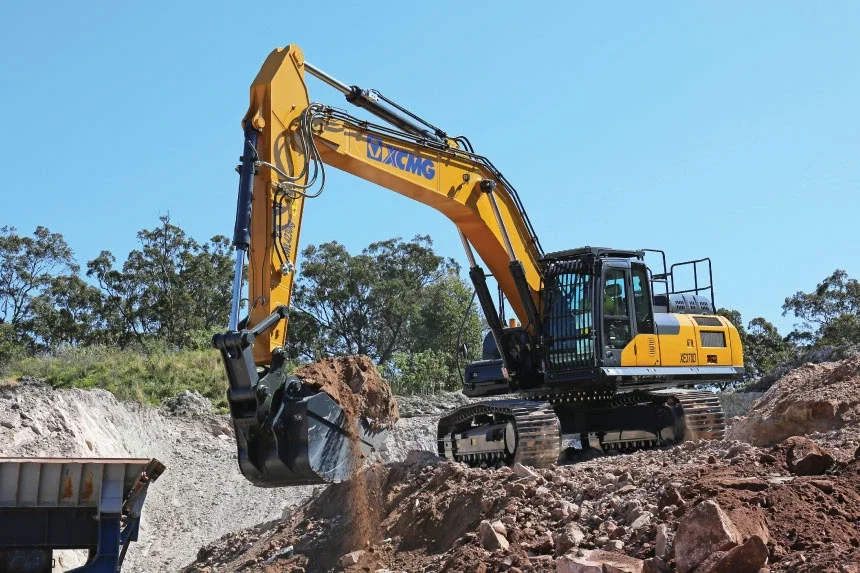

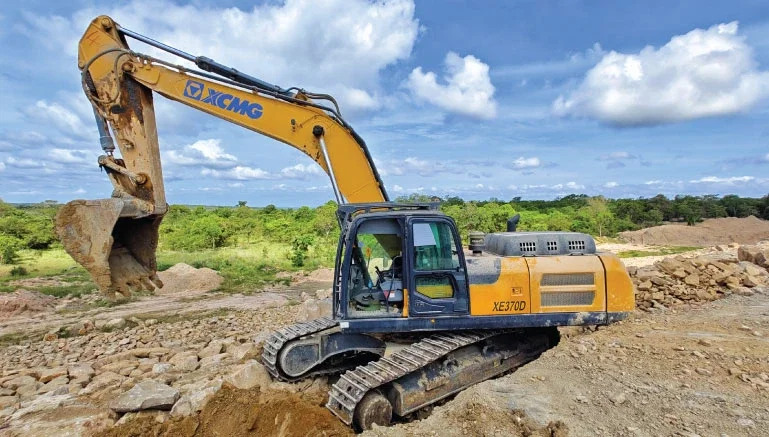

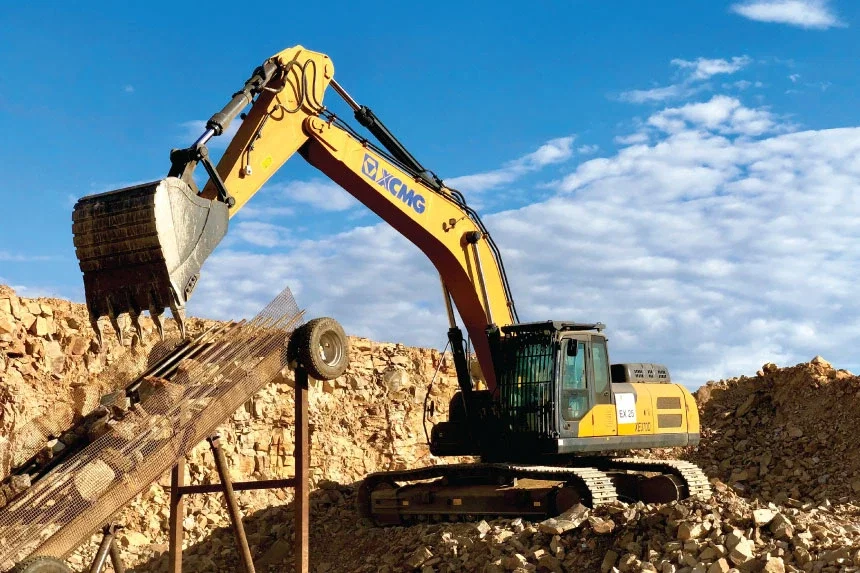

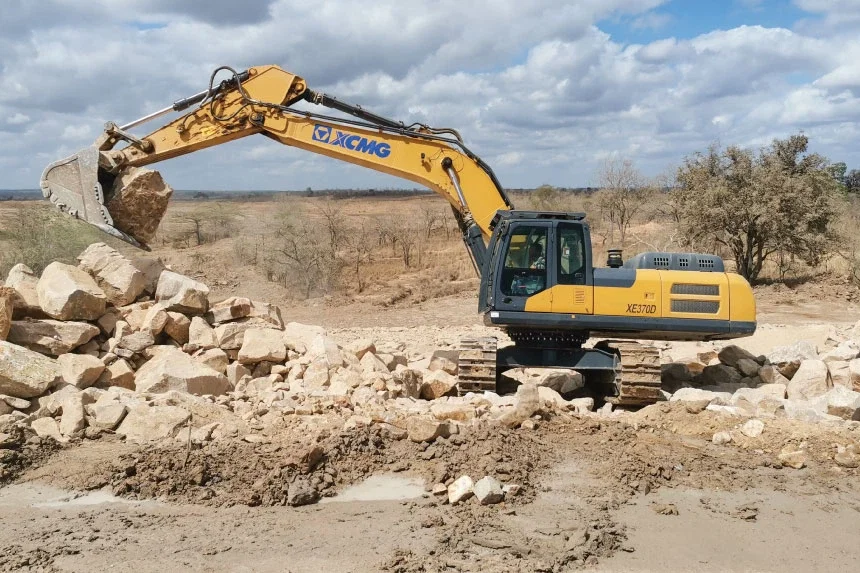

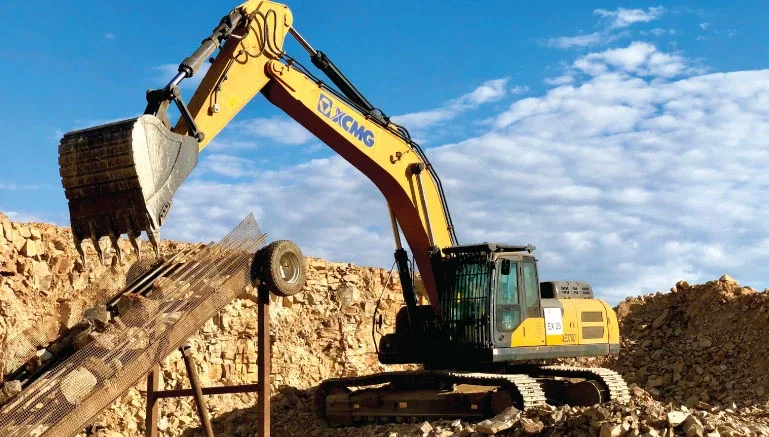

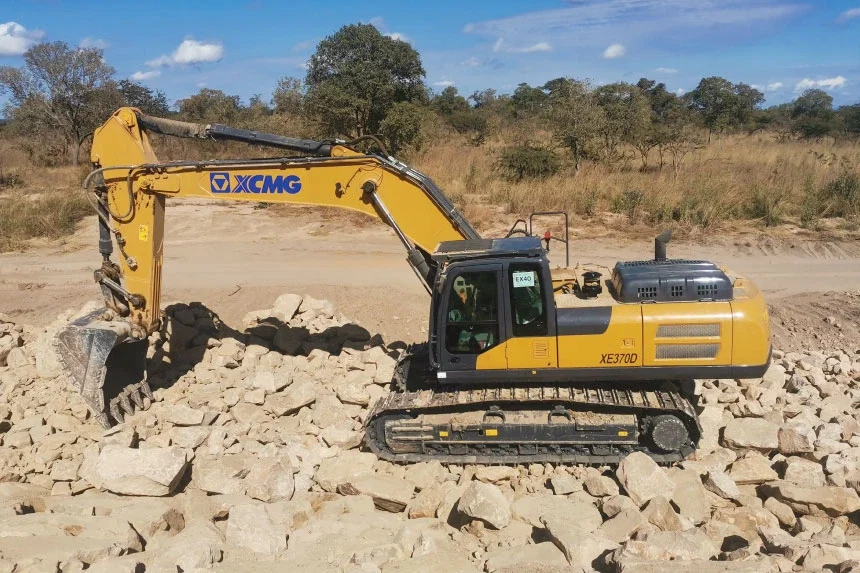

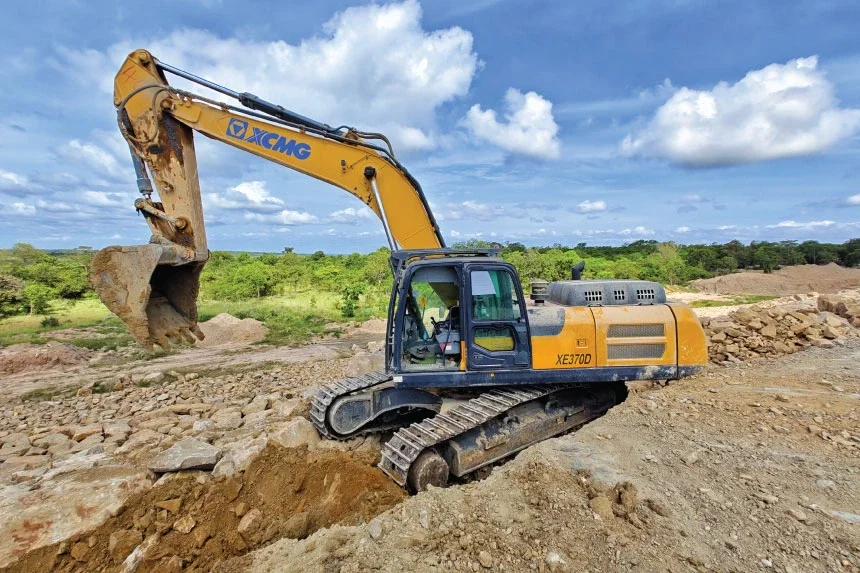

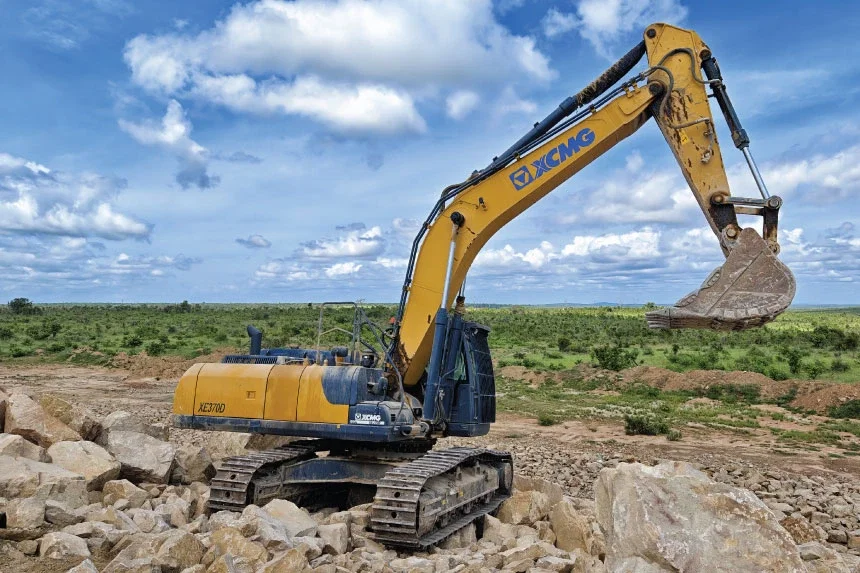

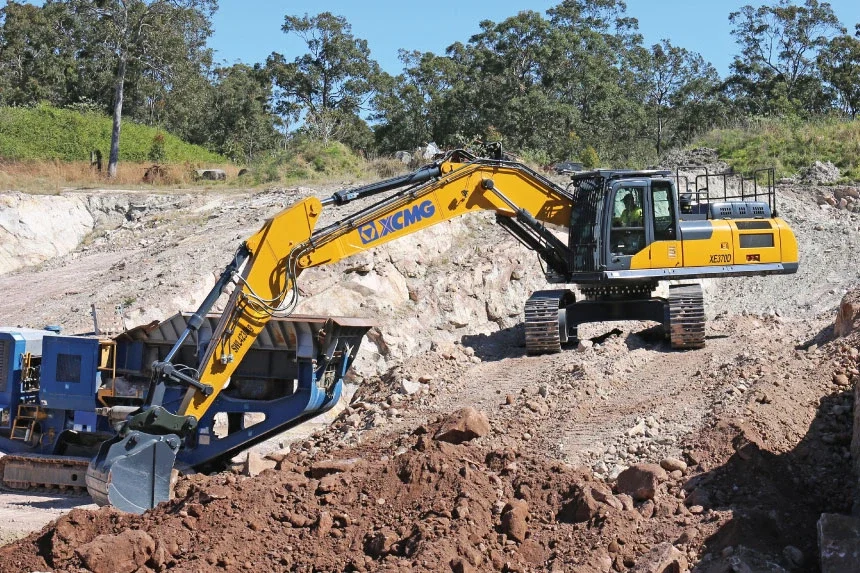

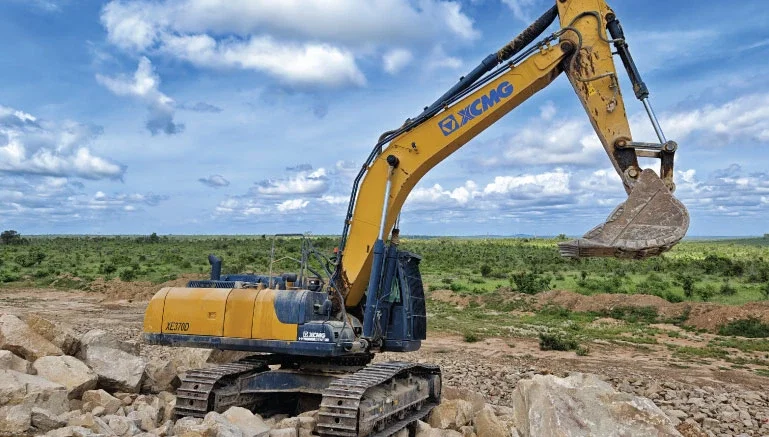

XE370D Excavator Overview
With a powerful Isuzu engine and premium quality componentry throughout, the XE370D delivers impressive, reliable and durable performance.

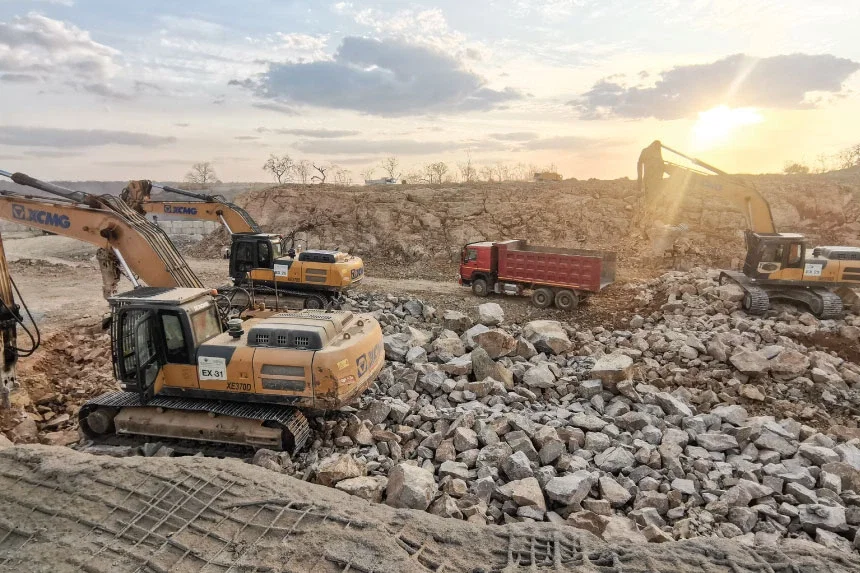

The XE370D excavator is perfectly designed and manufactured for a wide range of worksites: mining, excavation, leveling, loading, trenching, crushing, drilling, clamping, lifting, and much more.
With high quality structural components, exceptional hydraulic capability and overall premium performance and reliability, the XCMG XE370D excavator is the ideal machine for any operator seeking a value-for-money excavator in the 35-40 tonne size class.
Outstanding Features
Key Features
- Ecological and economical
- Multiple applications
- Comfortable operating experience
- Excellent after-sales service
- Convenient maintenance
- Safe and durable
Green Friendly
- Environment friendly engine
- Redox and exhaust gas recirculation technology
- Reduced emissions
Interior Features
- Comfortable cab and operation
- Air conditioner and heater
- Ergonomic air suspended seat up to 150kg capacity
Technology
- New generation instruments
- High end 7 inch large screen display
- High resolution reverse camera display
- Simple controls and excellent visibility for monitoring performance
Machine Specifications
Key Performance Specs
Operating Weight:
36800 kg
Engine:
Isuzu GH-6
Power:
212kW / 284HP
Max Torque:
1080 Nm
Max Speed:
5.4km/h
Hydraulic Flow:
2×304 LPM
Dig Depth & Reach:
7423 / 11114 mm
Bucket / Arm Digging Force:
263 / 188 kN
Overall Width:
3190 mm
Swing Speed:
15 RPM
Dipper Length:
3200 mm
Boom Length:
6400 mm
Track Width:
600 mm
Track Type:
Steel
Additional Specs
Main Pump Type:
Kawasaki
Main Valve:
Kawasaki
Cab:
FOPS / ROPS / Anti Roll / Air Conditioned
Emergency Stops:
Included
Buckets:
Enquire
Radio:
AM/FM + USB
Walking Motor:
Nabtesco
Seat:
Air Suspension 150kg
Reverse Camera:
Yes
Hydraulic Quick Change + Pipeline:
Miller (twin lock, double lock)
Pressure Flow Monitor:
Adjustable
Walking / Slewing Alarm Device:
Included
Work Light + Reversing Alarm Light:
Included
Cab Hoisting Performance Table:
Included
