Quick Specs
Engine
Cummins
Op Weight
12-13 T
Horsepower
139 HP
Drum Width
2130 mm

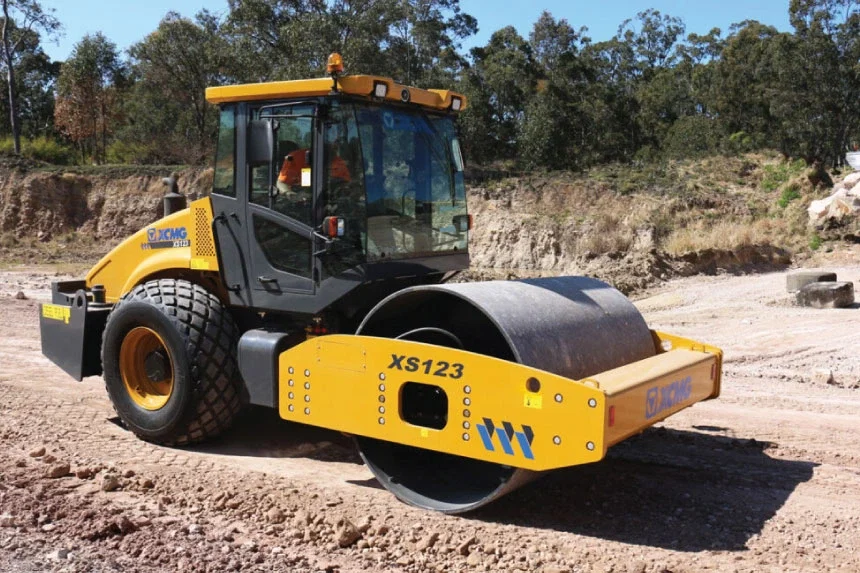

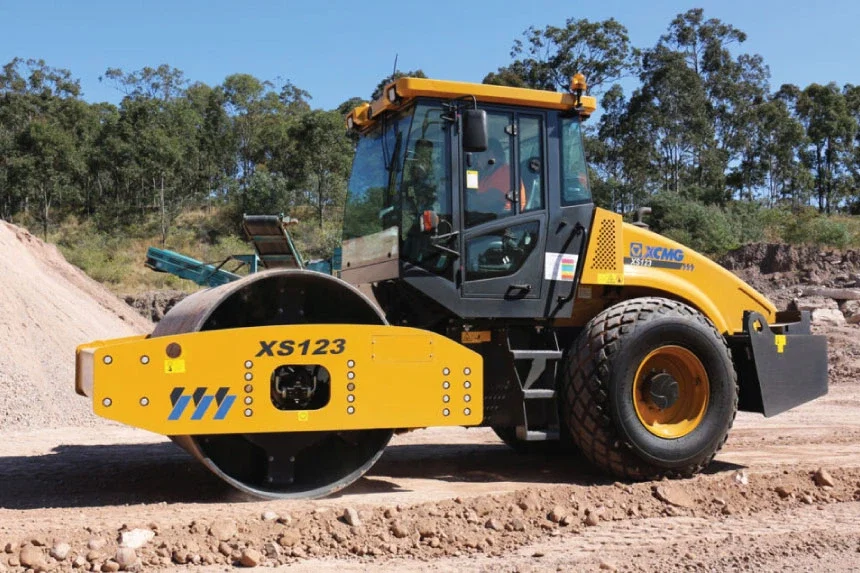

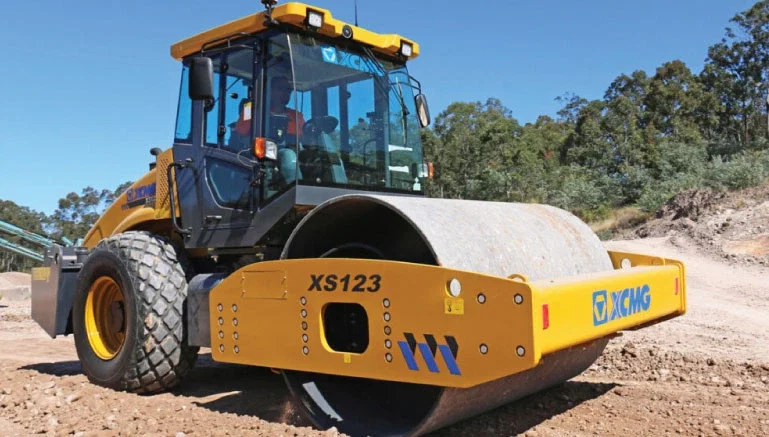

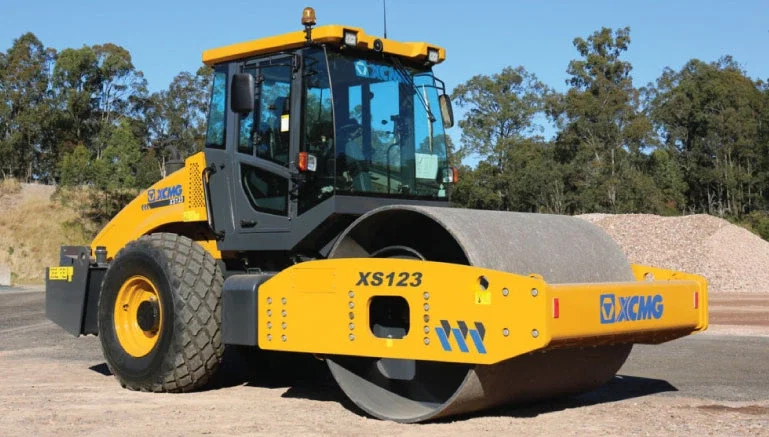

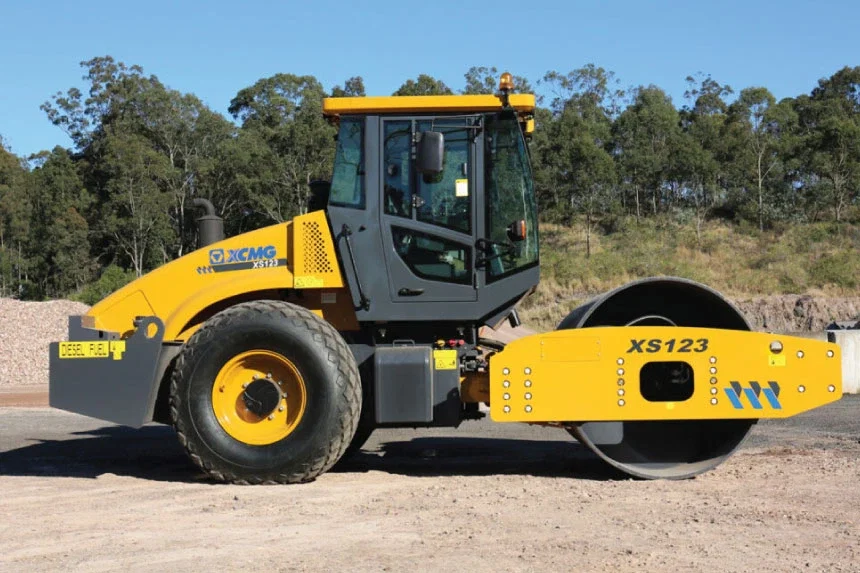

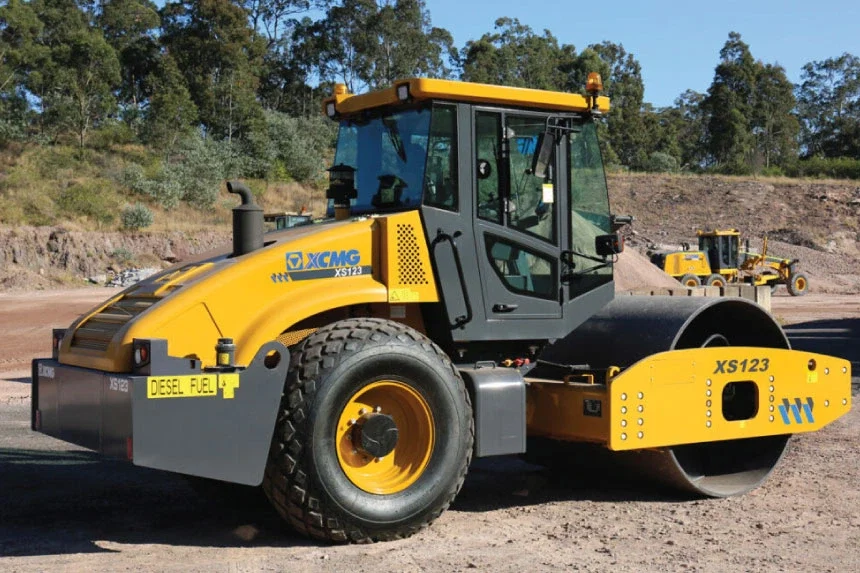

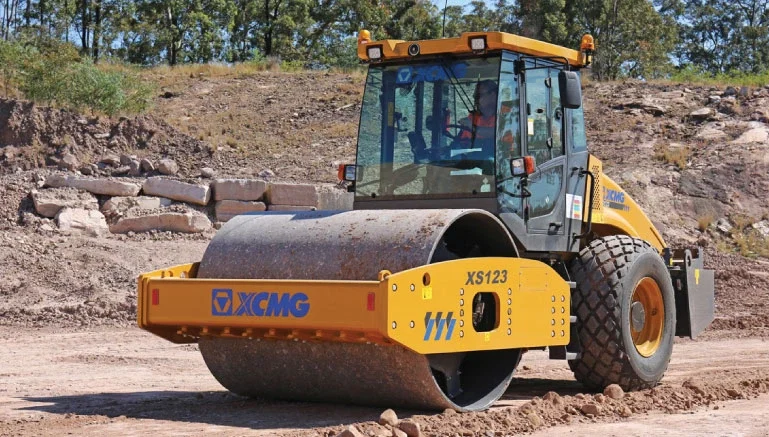

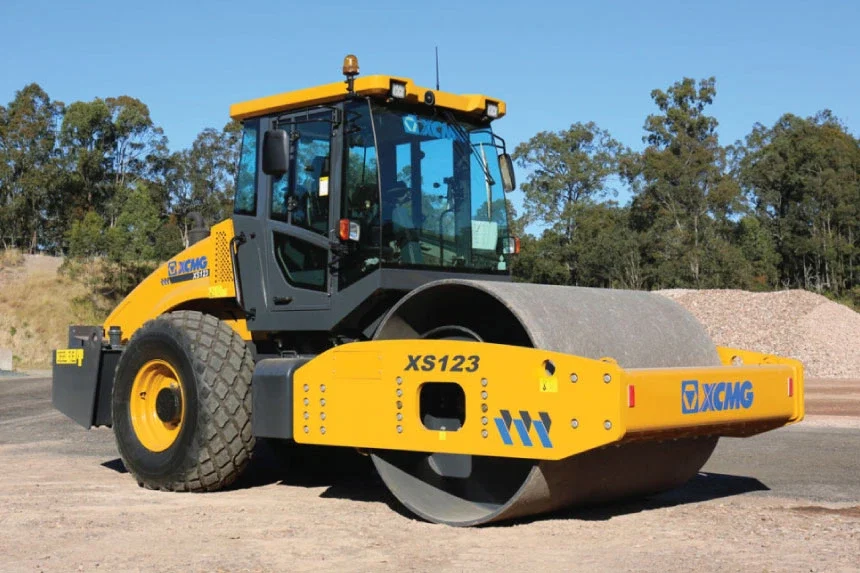

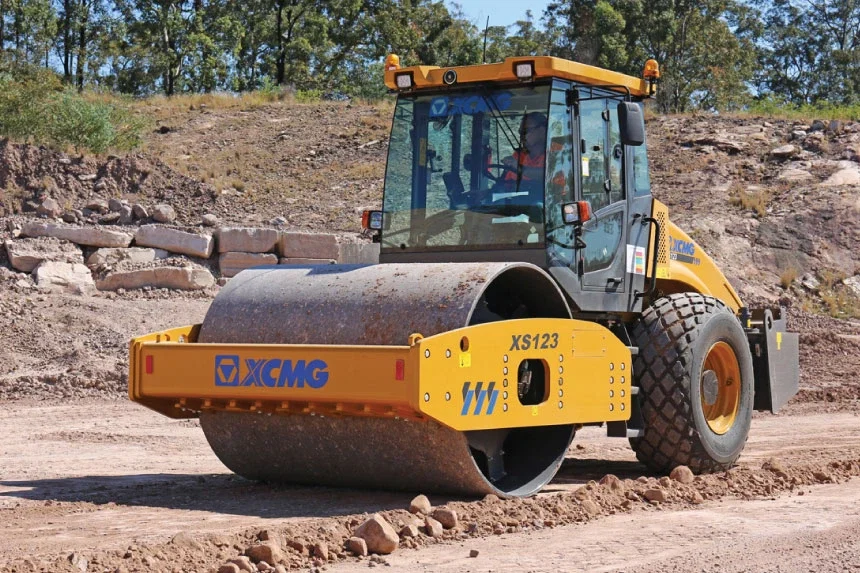

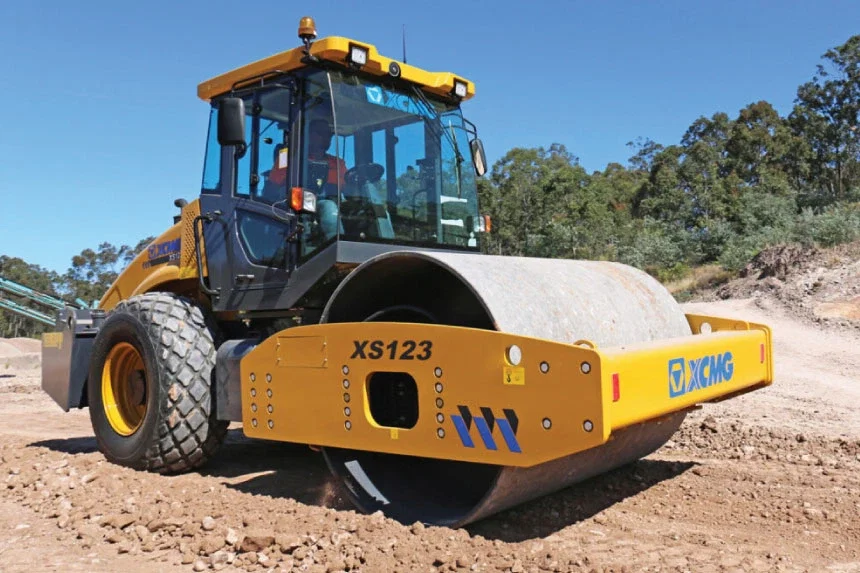

XS123 / XS123PD Vibratory Roller Overview
The XCMG XS123 vibratory road roller is a new generation of technology and maximised performance. XCMG makes full use of its international R&D platform to integrate global technology and produce completely independent roller designs.
As a result, the XS123 roller is uniquely powerful, rugged, energy efficient, safe and consistent – as well as being simple to maintain. With worldwide renown for its performance and value for money, the XS123 is the ideal solution for customers seeking a 12 tonne roller solution for any application or industry.
Equipped with a Tier 3 emission Cummins engine, premium hydraulic system and XCMG wet type drive axle, the entire roller offers significant advantages relating to reliability, efficiency, comfort and control.
Performance & Features
Engine
- Cummins QSF3.8 water-cooled turbocharged engine with high power reserve, low fuel consumption and low noise emission.
- Proportional ASC closed loop hydraulic drive system composed of variable displacement pump and constant motor – ensures better drive performance and gradeability.
EFFICIENT & PRODUCTIVE
- Medium wet type axle with anti-slip differential provides automatic torque allocation and max traction to suit the road condition.
- Variable displacement piston pump and constant displacement hydraulic motor result in dual vibrating frequency and amplitude for excellent compaction.
- Inner-cylinder drum chamber is simple and robust for excellent performance, long lifetime and high reliability.
COMPACT
- Ergonomic cabin with air conditioning, CANBUS joystick controls, control box integrated colour display, suspension seat and much more, for easy operation in maximum comfort.
- Engine hood tilts forward expansively and easily (push button) for better access to the maintenance parts.
Machine Specifications
Key Performance Specs - XS123
Engine:
Cummins QSF3.8
Engine Type:
Electronic Water-Cooled
Rated Power:
104 kW / 139 HP
Rated Speed:
2200 RPM
Operating Weight:
12000 kg (approx)
Front Axle Weight:
6700 kg
Rear Axle Weight:
5300 kg
Static Linear Load:
31.5 kg/cm
Operating Speeds:
5.5 / 11.2 km/h
Theoretical Gradeability:
45 %
Min Turn Radius (internal / external):
4500 / 6800 mm
Ground Clearance:
393 mm
Wheel Base:
3010 mm
Braking Distance:
3.9 m
Additional Specs - XS123
Padfoot Roller::
No
Vibration Frequency:
30/35 Hz
Nominal Amplitute:
1.8 / 0.9 mm
Exciting Force (High/Low):
95 kN
Drum Diameter:
1523 mm
Drum Width:
2130 mm
Charge Pressure of Drive System:
2.4 MPa
Relief Pressure of Drive System:
35 MPa
Relief Pressure of Vibration System:
30 MPa
Relief Pressure of Steering System:
16 MPa
Tyre Spec:
23.1-26-12D23TL
Ply Rating:
12
Air Pressure:
200
Steering Angle:
+- 30 Degrees
Oscillation Angle:
+- 10 Degrees
Key Performance Specs - XS123PD
Engine:
Cummins QSF3.8
Engine Type:
Electronic Water-Cooled
Rated Power:
104 kW / 139 HP
Rated Speed:
2200 RPM
Operating Weight:
12850 kg (approx)
Front Axle Weight:
7550 kg
Rear Axle Weight:
5300 kg
Static Linear Load:
31.5 kg/cm
Operating Speeds:
5.5 / 11.2 km/h
Theoretical Gradeability:
45 %
Min Turn Radius (internal / external):
4500 / 6800 mm
Ground Clearance:
443 mm
Wheel Base:
3010 mm
Braking Distance:
3.9 m
Additional Specs - XS123PD
Padfoot Roller:
Yes
Vibration Frequency:
30/35 Hz
Nominal Amplitute:
1.6/0.8 mm
Exciting Force (High/Low):
95 kN
Drum Diameter:
1523 mm
Drum Width:
2130 mm
Charge Pressure of Drive System:
2.4 MPa
Relief Pressure of Drive System:
35 MPa
Relief Pressure of Vibration System:
30 MPa
Relief Pressure of Steering System:
16 MPa
Tyre Spec:
23.1-26-12D23TL
Ply Rating:
12
Air Pressure:
200
Steering Angle:
+- 30 Degrees
Oscillation Angle:
+- 10 Degrees
