Quick Specs
Engine
Cummins
Op Weight
20-21 T
Horsepower
190 HP
Drum Width
2130 mm

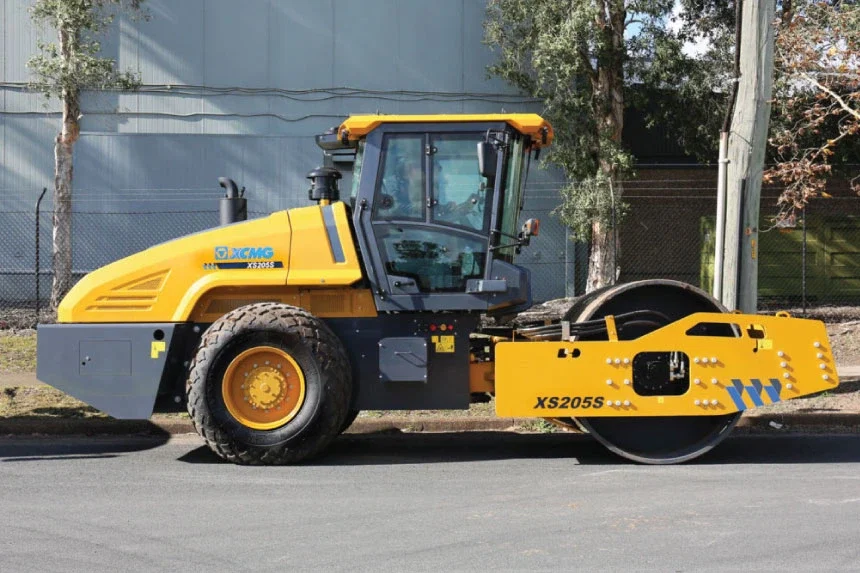

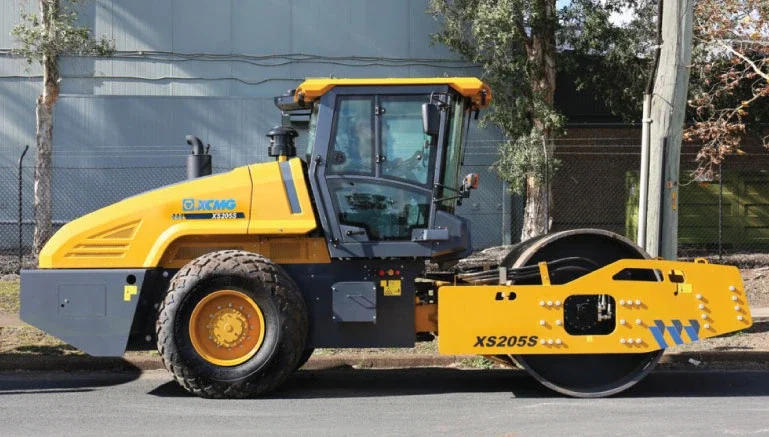

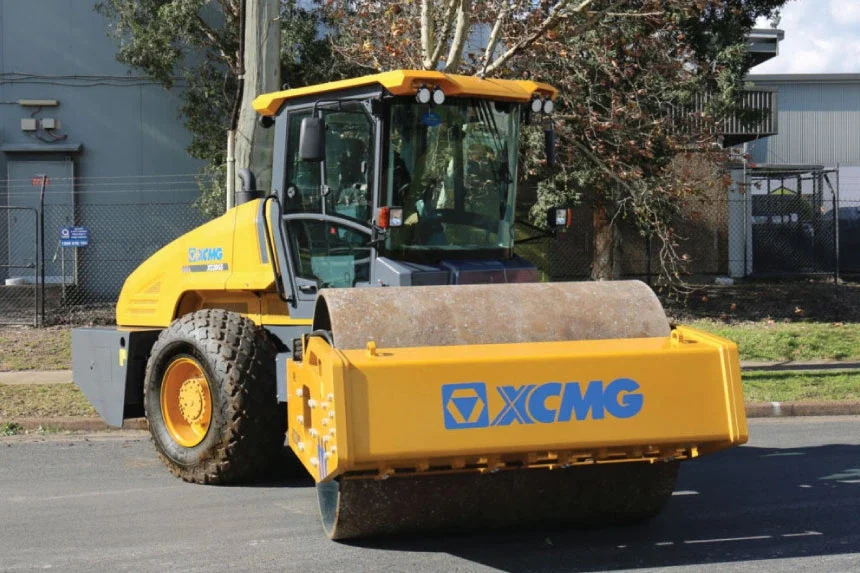

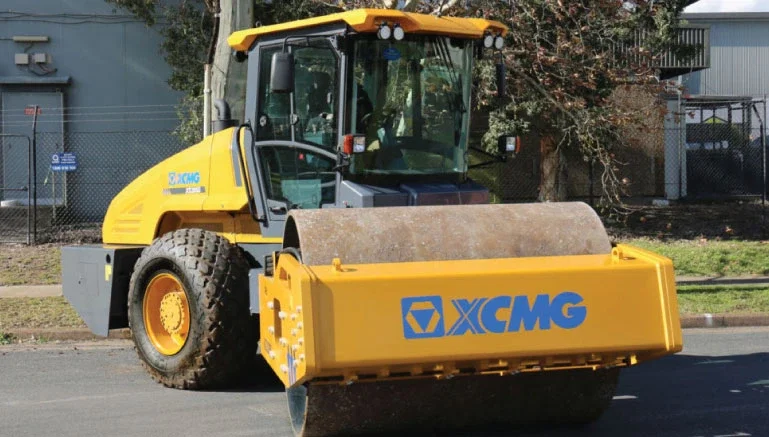

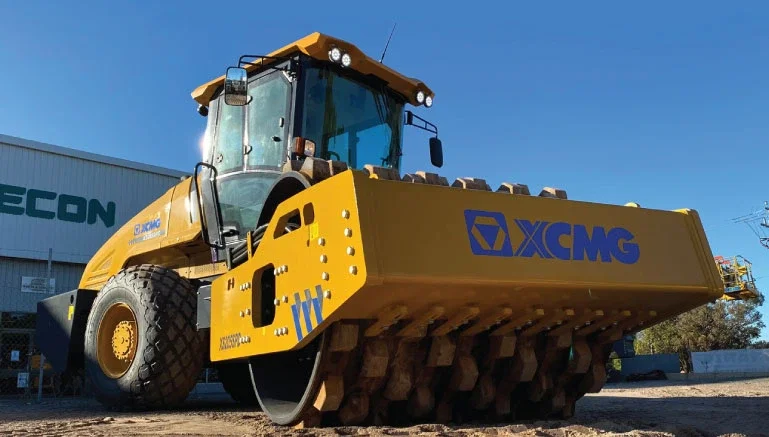

XS205S / XS205PD Vibratory Roller Overview
The XCMG XS205 vibratory road roller is a new generation of technology and maximised performance. XCMG makes full use of its international R&D platform to integrate global technology and produce completely independent roller designs.
As a result, the XS205 roller is uniquely powerful, rugged, energy efficient, safe and consistent – as well as being simple to maintain. With worldwide renown for its performance and value for money, the XS205 is the ideal solution for customers seeking a 20 tonne roller solution for any application or industry.
Equipped with a Tier 3 emission Cummins engine, premium hydraulic system, spacious and comfortable cabin, and a wide angle of visibility, the entire roller offers significant advantages relating to reliability, efficiency, comfort and control.
Performance & Features
Engine
- Renowned Cummins QSB5.9-C190 190 HP watercooled turbocharged engine with high power reserve, low fuel consumption and low noise emission.

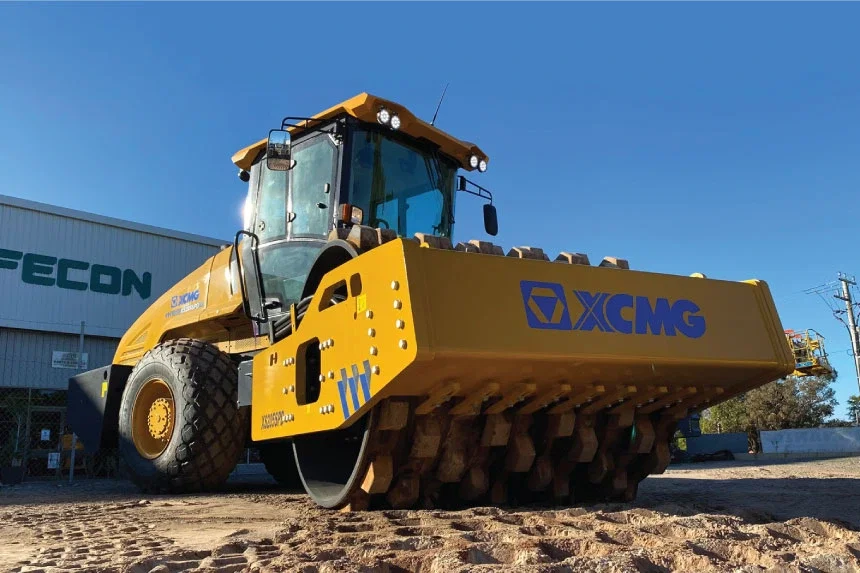

- The XS205 vibratory drum roller is available as either Smooth drum or Padfoot drum variants, offering you options to best suit your requirements.
- Closed loop hydraulic system supplied by a variable pump and quantitative motor, by using dual frequency and amplitude and matching of static linear load.

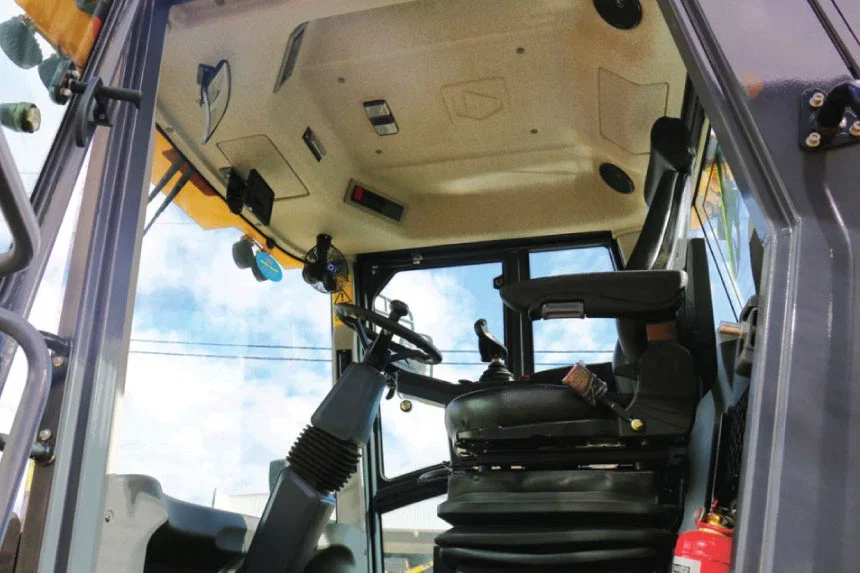

- The cabin uses 3D shock absorbing technology and optimal arrangement of vibrating drum shock absorber to guarantee an excellent shock absorbing effect.
Reliability
- Intelligently designed windows and a high operator seat position ensure the work area around the drum is clearly visible during operation.

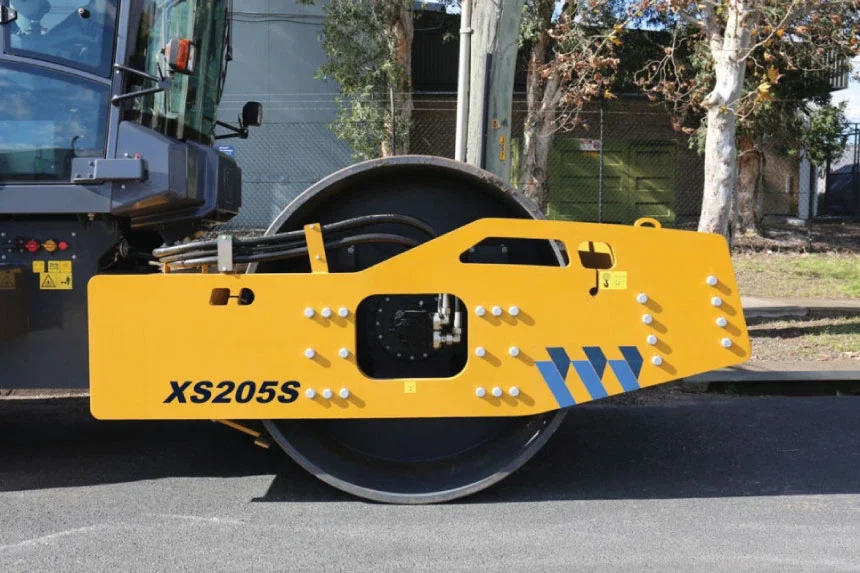

- Inner-cylinder drum chamber is simple and robust for excellent performance, long lifetime and exceptionally high reliability.

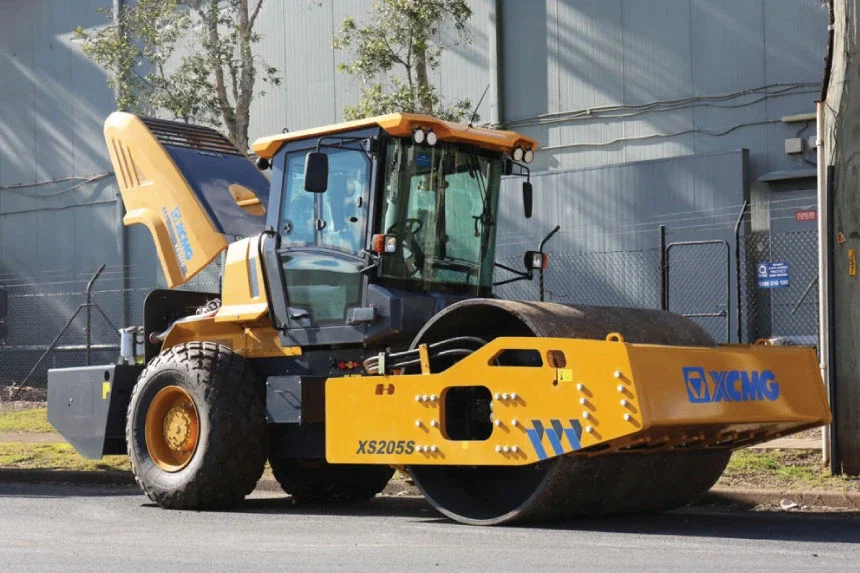

- The machine hood adopts the linear drive support opening mode and large opening angle enables better accessibility of all parts.
Trust
- Product experts at your local dealer provide exceptional support throughout your machine’s lifetime: operation, maintenance and service from the delivery date through to its last day on the job.
- XCMG is the World’s 3rd largest construction machinery manufacturer, with branches dealers and service agents throughout Australia.
Machine Specifications
Key Performance Specs - XS205s
Engine:
Cummins QSB5.9-C190
Engine Type:
Electronic Water-Cooled
Rated Power:
142 kW / 190 HP
Rated Speed:
2200 RPM
Operating Weight:
20000 kg (approx)
Front Axle Weight:
13500 kg
Rear Axle Weight:
6500 kg
Static Linear Load:
621 N/cm
Operating Speeds:
0-4; 0-5.9; 0-10.6 km/h
Theoretical Gradeability:
50 %
Min Turn Radius (internal / external):
4770 / 6900 mm
Ground Clearance:
490 mm
Wheel Base:
3430 mm
Braking Distance:
3.9 m
Additional Specs - XS205s
Roller:
Smooth
Vibration Frequency:
28/33 Hz
Nominal Amplitute:
1.90/0.95 mm
Exciting Force (High/Low):
385/270 kN
Drum Diameter:
1600 mm
Drum Width:
2130 mm
Charge Pressure of Drive System:
2.4 MPa
Relief Pressure of Drive System:
38 MPa
Relief Pressure of Vibration System:
33 MPa
Relief Pressure of Steering System:
14 MPa
Tyre Spec:
23.1-26-12PR
Ply Rating:
12
Air Pressure:
150-170
Steering Angle:
+- 33 Degrees
Oscillation Angle:
+- 10 Degrees
Key Performance Specs - XS205PD
Engine:
Cummins QSB5.9-C190
Engine Type:
Electronic Water-Cooled
Rated Power:
142 kW / 190 HP
Rated Speed:
2200 RPM
Operating Weight:
21600 kg (approx)
Front Axle Weight:
15100 kg
Rear Axle Weight:
6500 kg
Static Linear Load:
-
Operating Speeds:
0-4.3; 0-6.1; 0-6.3; 0-11.3 km/h
Theoretical Gradeability:
50 %
Min Turn Radius (internal / external):
4770 / 6900 mm
Ground Clearance:
490 mm
Wheel Base:
3430 mm
Braking Distance:
4.1 m
Additional Specs - XS205PD
Roller:
Padfoot
Vibration Frequency:
28/33 Hz
Nominal Amplitute:
1.55/0.78 mm
Exciting Force (High/Low):
385/270 kN
Drum Diameter:
1812 mm
Drum Width:
2130 mm
Charge Pressure of Drive System:
2.4 MPa
Relief Pressure of Drive System:
38 MPa
Relief Pressure of Vibration System:
33 MPa
Relief Pressure of Steering System:
14 MPa
Tyre Spec:
23.1-26-12PR
Ply Rating:
12
Air Pressure:
150-170
Steering Angle:
+- 33 Degrees
Oscillation Angle:
+- 10 Degrees
