Quick Specs
Overall Width
2495 mm
Flow Rate
2 x 160 LPM
Op Weight
14000 kg
Engine
Cummins B4.5

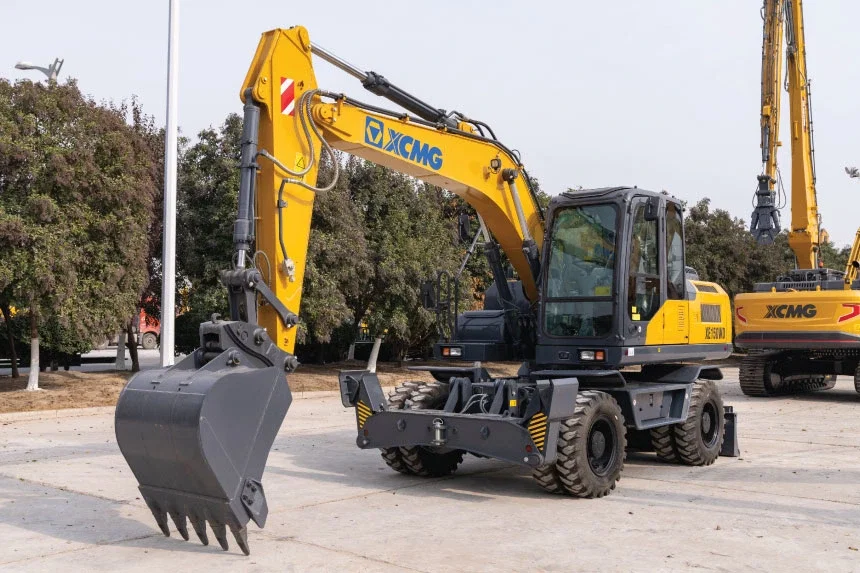

XE150WB Excavator Overview
With a powerful Cummins engine and premium quality componentry throughout, the XE150WB delivers impressively versatile and robust performance in a wheeled machine.
The XE150WB 14 tonne excavator is perfectly designed and manufactured for a wide range of worksites: excavation, mining, loading, leveling, trenching, crushing, drilling, clamping, lifting, etc.
With exceptional structural components, powerful performance, comfortable operation and excellent safety, the XCMG XE150WB excavator is the ideal machine solution for any and every operator seeking a value-for-money wheeled excavator in the 14 / 15 / 16 tonne size class.
Outstanding Features
Key Features
- Ecological and economical
- Multiple applications
- Comfortable operating experience
- Excellent after-sales service
- Convenient maintenance
- Safe and durable
Green Friendly
- Environment friendly engine
- Electronic fuel speed control.
- Reduced emissions
Interior Features
- Comfortable cab and operation
- Air conditioner and heater
- Ergonomic air suspended seat
Machine Specifications
Key Performance Specs
Operating Weight:
14000 kg
Engine:
Cummins QSB4.5
Power:
104kW / 139HP
Max Torque:
586 Nm (@ 1500rpm)
Max Speed:
30km/h
Hydraulic Flow:
2×160 LPM
Dig Depth & Reach:
4630 / 7780 mm
Bucket / Arm Digging Force:
95 / 72 kN
Overall Width:
2495 mm
Swing Speed:
12 RPM
Dipper Length:
2100 mm
Boom Length:
4600 mm
Wheel Type:
Rubber Tyre
Additional Specs
Main Pump:
Kawasaki
Cab:
FOPS / ROPS / Air Conditioned
Emergency Stops:
Included
Buckets:
Enquire
Radio:
AM/FM + USB
Seat:
Air Suspension
Explosion-proof Valve:
Boom and Arm Pipeline
Hydraulic Buffer Valve:
Included (updated)
Gauge Pressure Monitoring:
Yes
Boom Priority Valve:
Yes
Electronic Fuel Speed Control:
Included
Amber Rotating Beacon:
Included
