Quick Specs
Rated Op Weight
5500 kg
Op Weight
18700 kg
Horsepower
219 HP
Dump Height
3050 mm

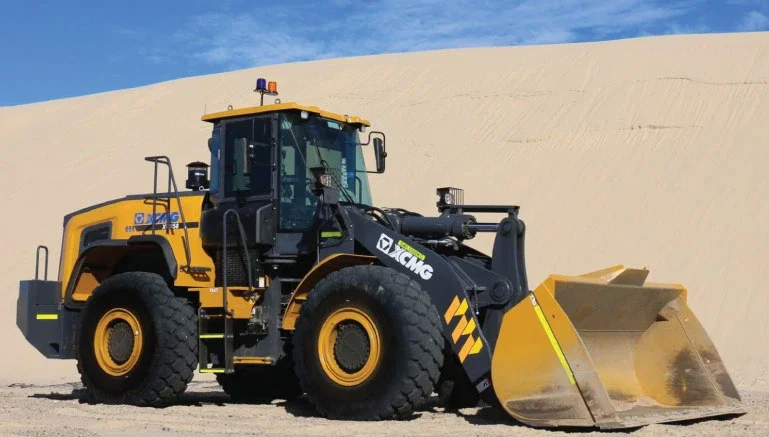

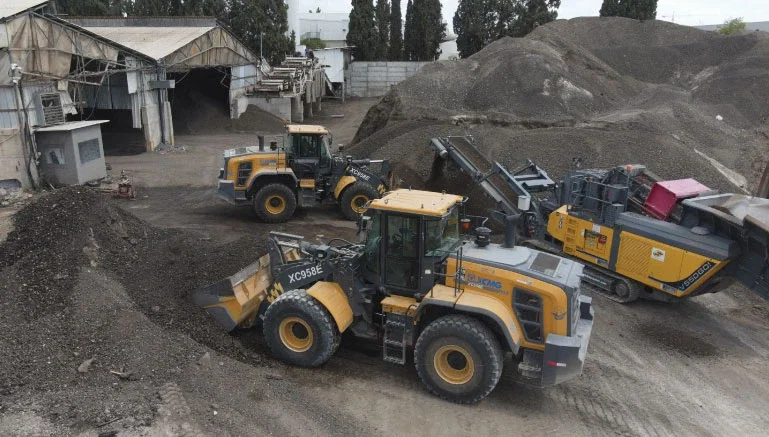

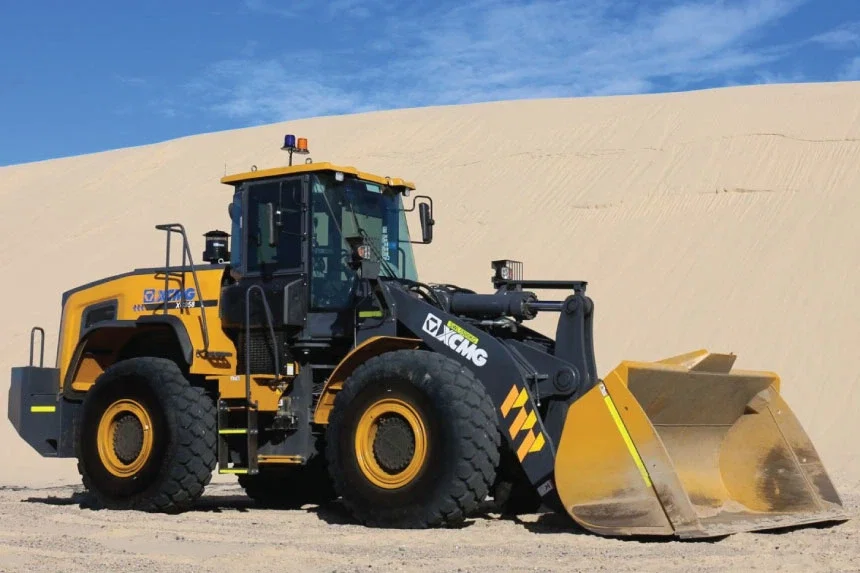

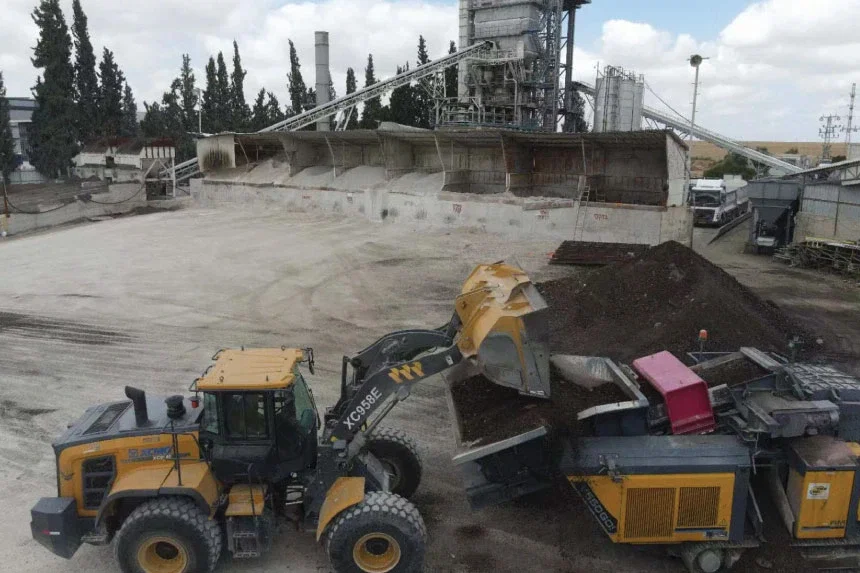

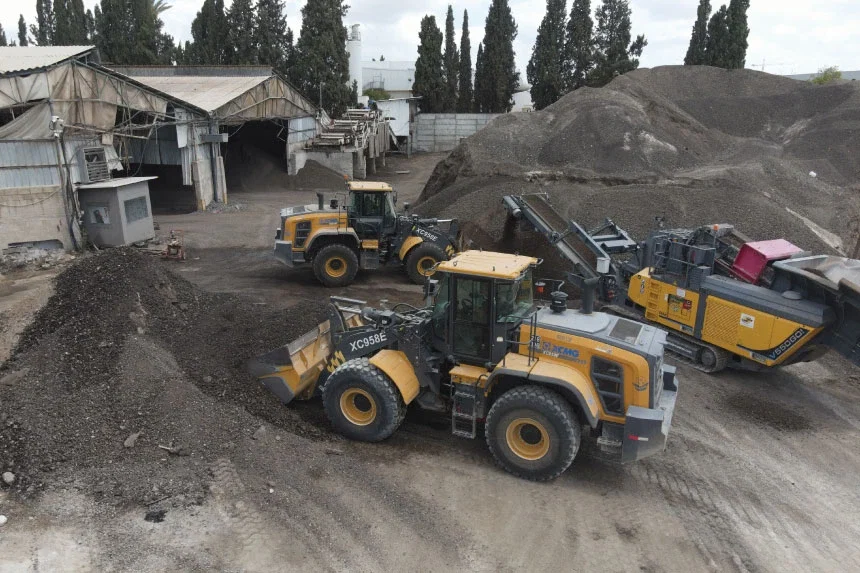

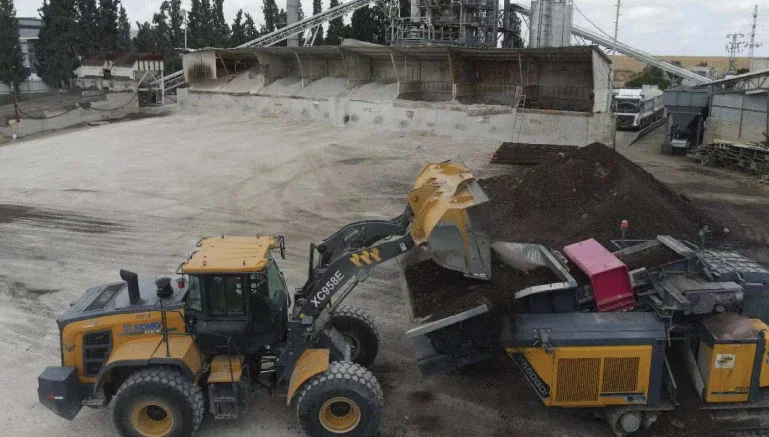

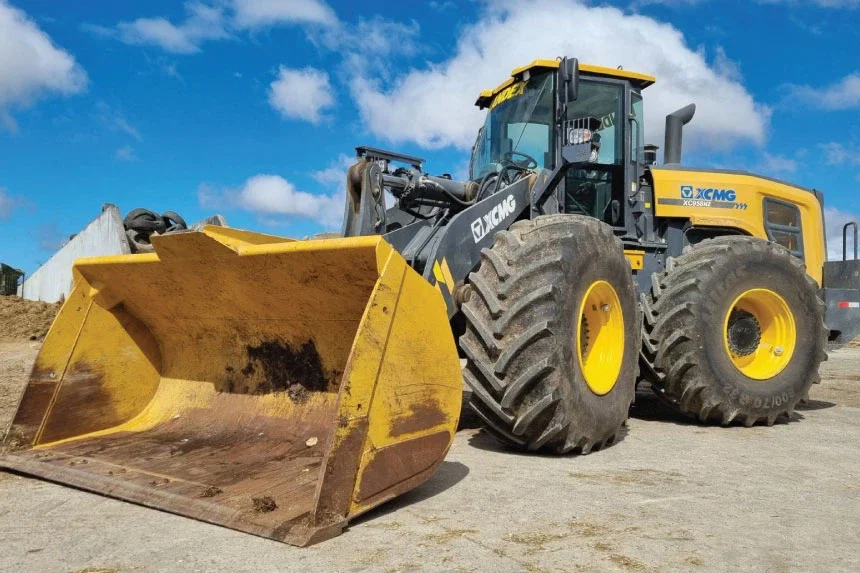

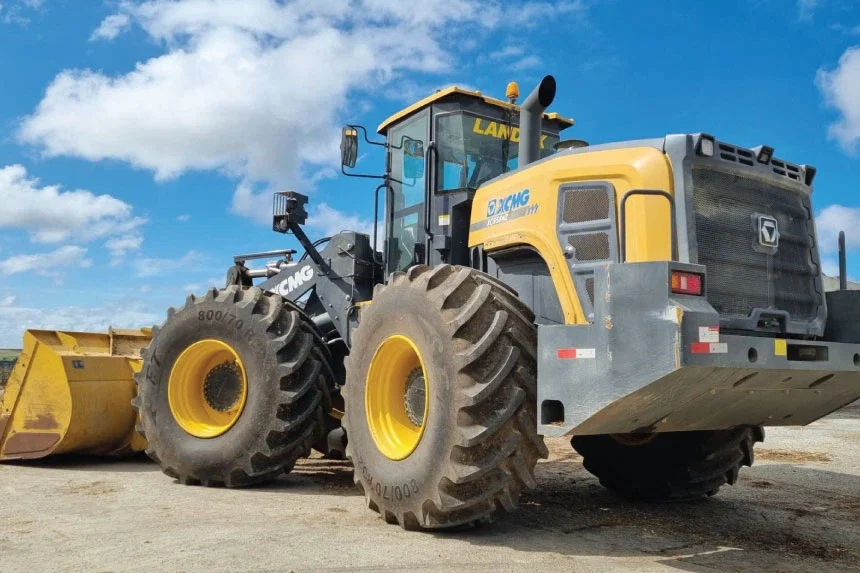

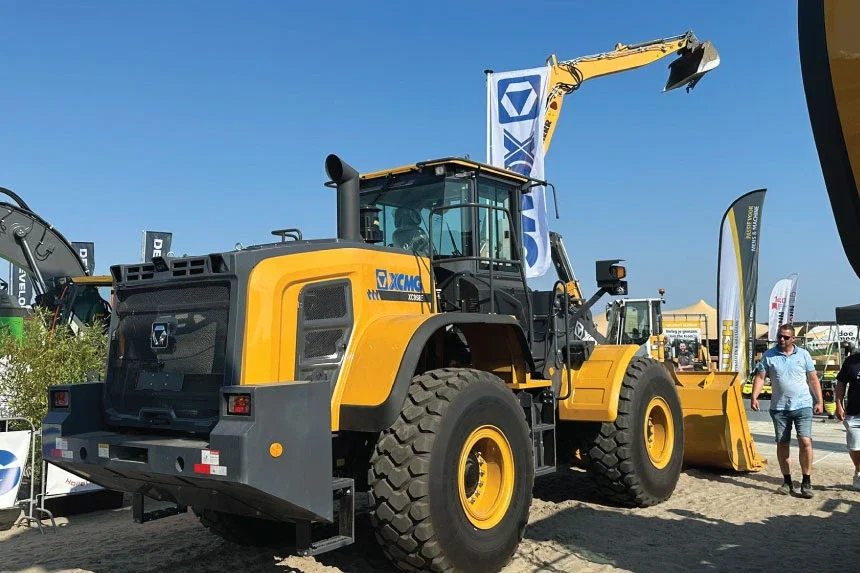

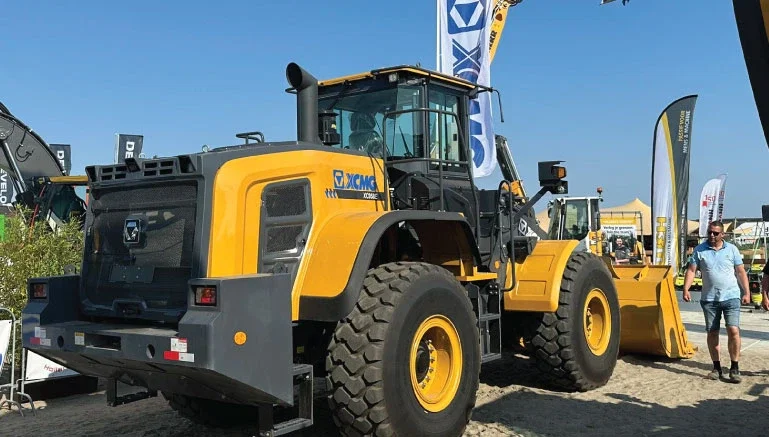

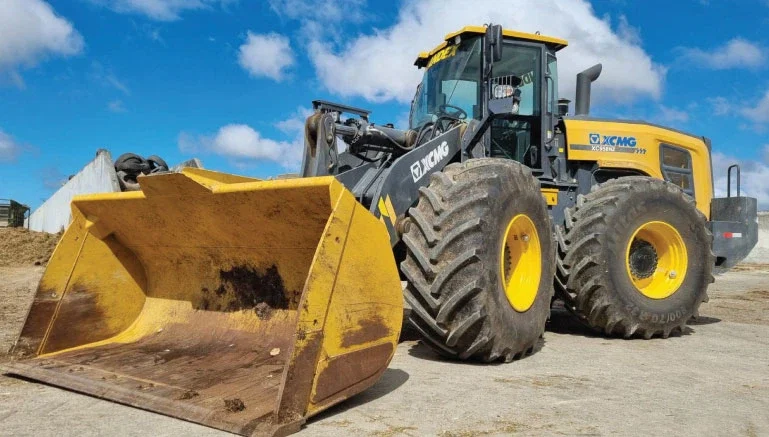

XC958 Wheel Loader Overview
The XCMG XC958 wheel loader makes full use of XCMG’s extensive international R&D capabilities to integrate global technology and manufacture completely independent designs.
As a result, the XC958 front end loader is uniquely comfortable, durable, reliable and efficient – as well as being simple to maintain. With worldwide renown for its performance and value for money, the XC958 18 tonne loader is the ideal solution for customers seeking a versatile solution for any application or industry.
Equipped with a Tier 3 emission Cummins QSB6.7 engine, ZF 4BP210 automatic transmission, XCMG high performance wet axle and full hydraulic wet brake system, the entire loader offers significant reliability, efficiency, comfort and control.
Performance & Features
HIGH RELIABILITY
- Cummins QSB6.7 engine provides required power for complex working conditions.
- Automatic ZF 4BP 210 torque converter transmission reduces shifting impact.
- XCMG wet axle meets high working load requirements.
- Full hydraulic wet brake system is highly reliable and maintenance-free.
- Extra heavy load frame design to extend machine life and performance.
- Wear resistant and impact resistant high strength steel plate for bucket material.
INTELLIGENT
- Heat management system with large radiator and low speed fan ensures maximum performance.
- Fan has automatic reversal function for self-cleaning in high dust environments.
- Quantitative hydraulic system provides on-demand distribution of fuel supply during steering and work unit operation.
- Command-based controls makes the operator’s work easier and more enjoyable.
COMFORTABLE OPERATION
- Spacious and ergonomic cab with excellent visibility.
- FOPS/ROPS cab with heat and air conditioning provides air flow through multiple vents.
- Well sealed and insulated cab to provide a dust proof environment.
- All switches are conveniently placed and controls are highly ergonomic.
- Digital gauges in the cab monitor and display the loader’s vital functions.
- Suspension seat with excellent lumbar support minimises operator fatigue or discomfort.
- Integrated F-N-R electronic lever shifting function offers precise control and easy operation.
EXCELLENT SAFETY
- Complies with ISO 5006 operator vision field standards.
- Complies with ISO 3449, 3471, 3164 ROPS/FOPS cab standards.
- Complies with ISO 2867, 2860 ladders, passageways, operation platform and exit/access standards.
- Complies with ISO 10533, 10570 lifting arm bracket and hinged lock device standards.
- Flame retardant material applied to cab interiors and fire extinguisher equipped.
EASY MAINTENANCE
- New digital combination meter shows the vehicle running status and various other info at a glance.
- Side-turn cab and large angle side door openings offer easy access to engine and componentry for easy service.
- Single row of large tone radiators and an upturned back cover.
- Centred electrical fuse box for effortless check-ups and high reliability.
- Simple extraction of oil drain devices, plus pressure management points for routine testing.
Machine Specifications
Key Performance Specs
Operating Weight:
18700 kg (approx)
Engine:
Cummins QSB 6.7
Power:
164kW / 219HP
Rated Operating Load:
5500 kg
Dump Height:
3050 mm
Dump Distance:
1140 mm
Wheel Base:
3350 mm
Wheel Track:
2250 mm
Minimum Ground Clearance:
422 mm
Length:
8335 mm
Height:
3435 mm
Width:
2996 mm
Additional Specs
Max Breakout Force:
170 kN
Max Traction:
160 kN
Turning Radius:
5990 mm
Lift Time of Boom:
5.5 Seconds
Total Hyd Cycle Time:
10 Seconds
Tipping Load (Max Steering):
11500 kg
Tipping Load (Straight State):
1260kg
Speed (1/2/3/4):
6.5/11/24/38
Rotate Speed:
2200RPM
Bucket:
3.1m3
