Quick Specs
Op Weight
7500 kg
Horsepower
108 HP
Length
7130 mm

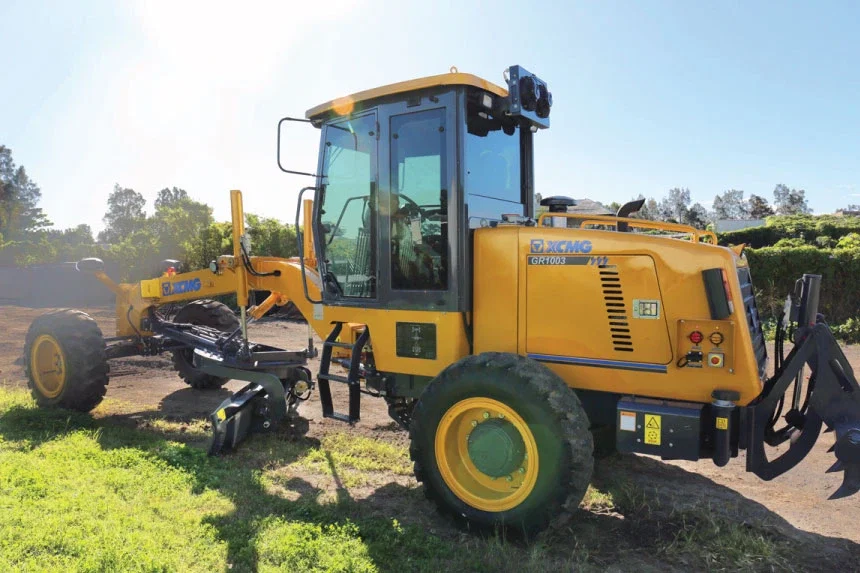

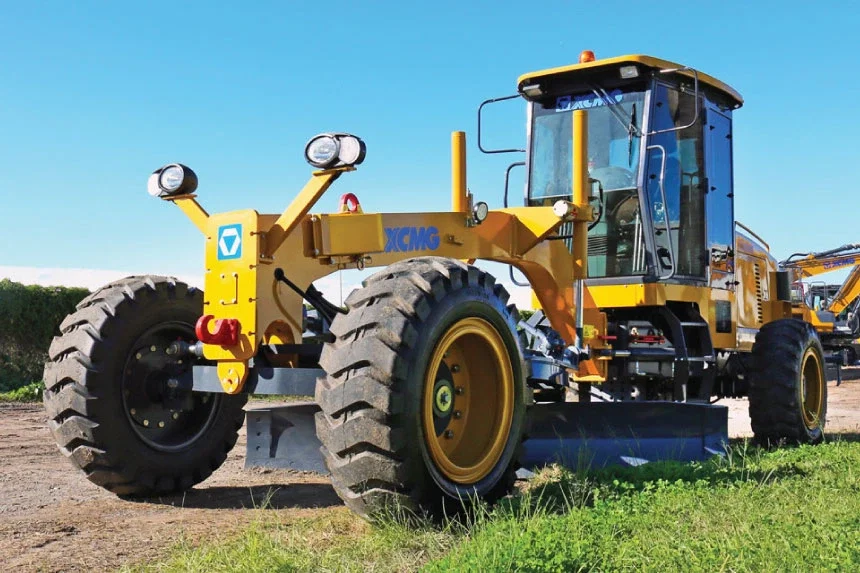

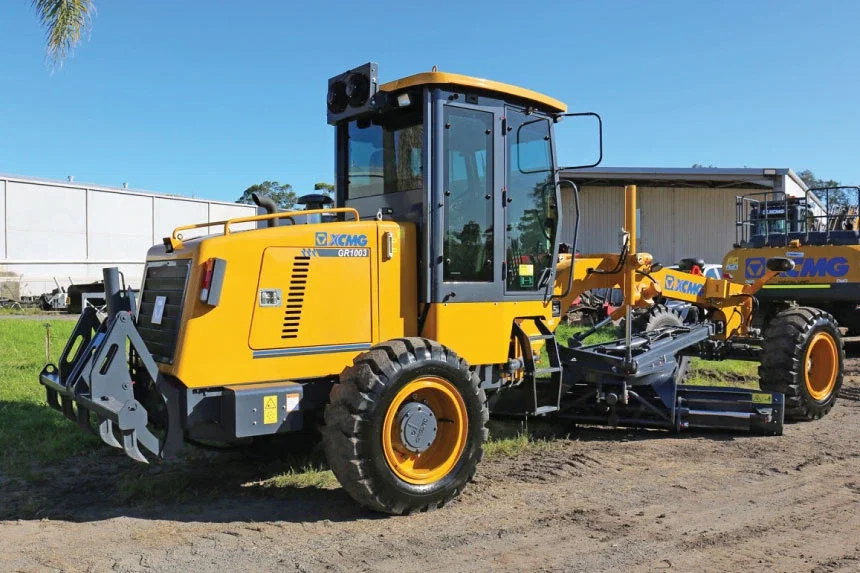

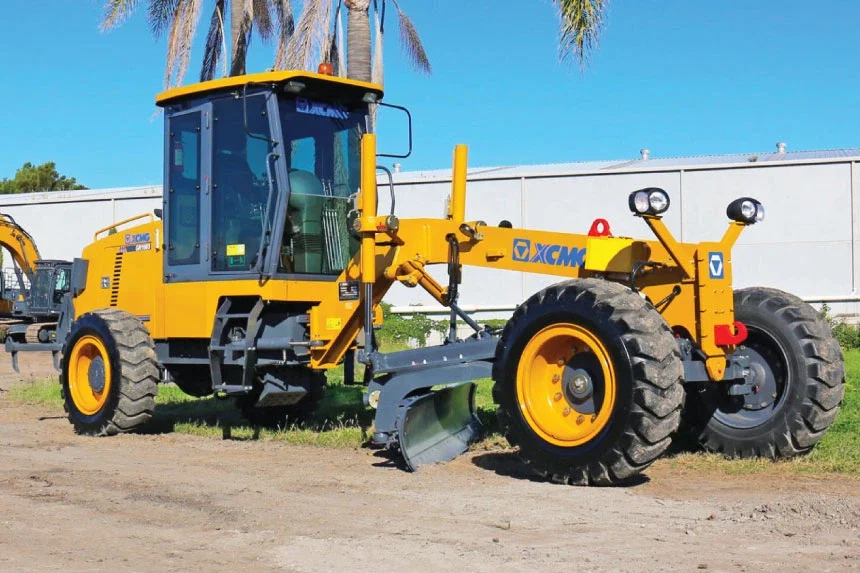

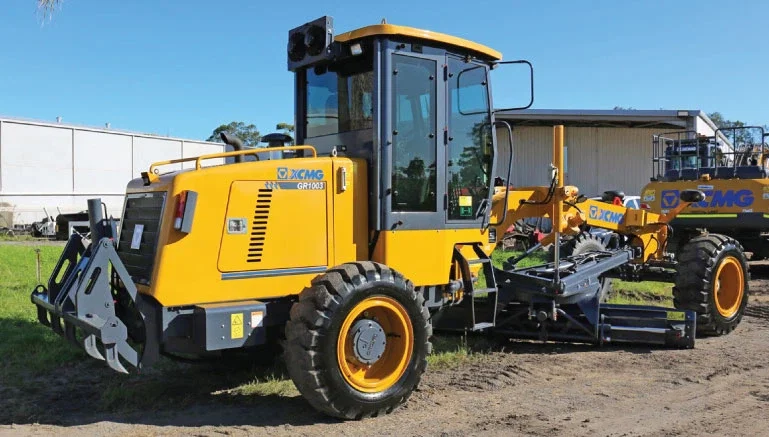

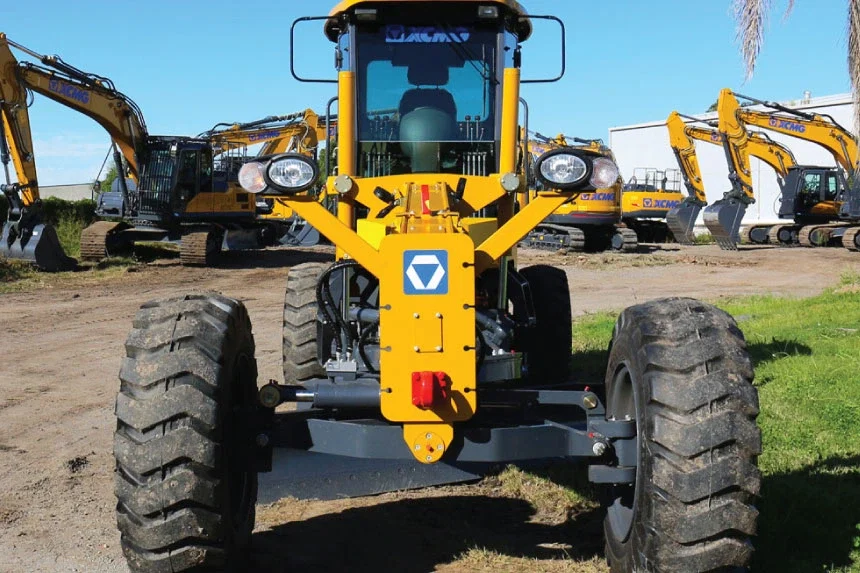

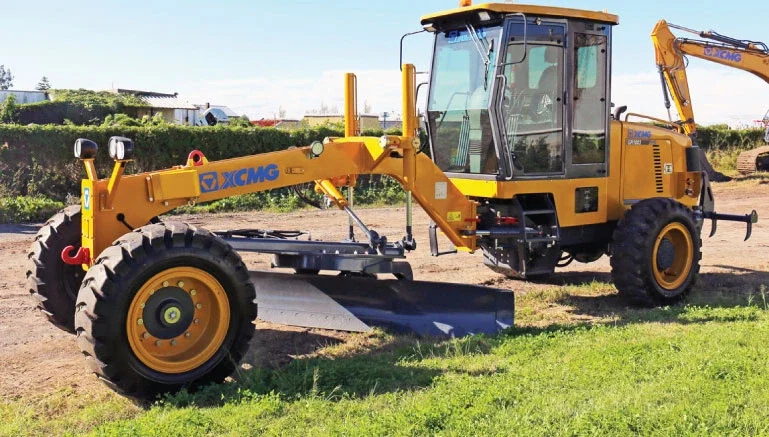

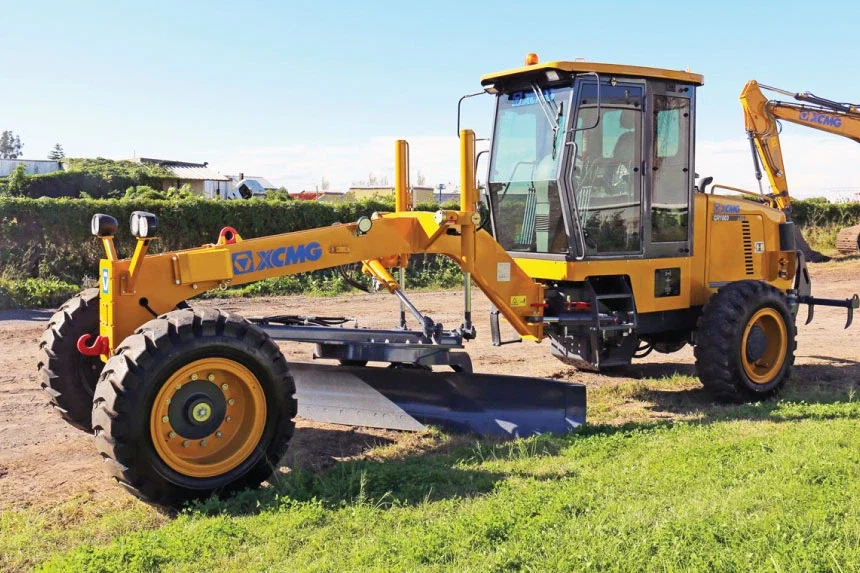

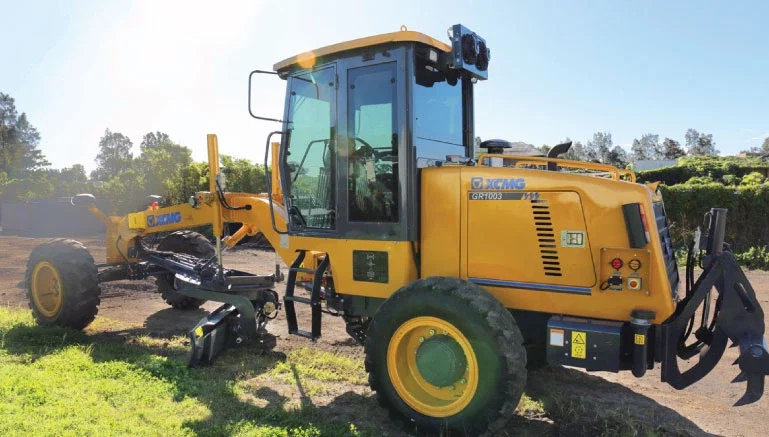

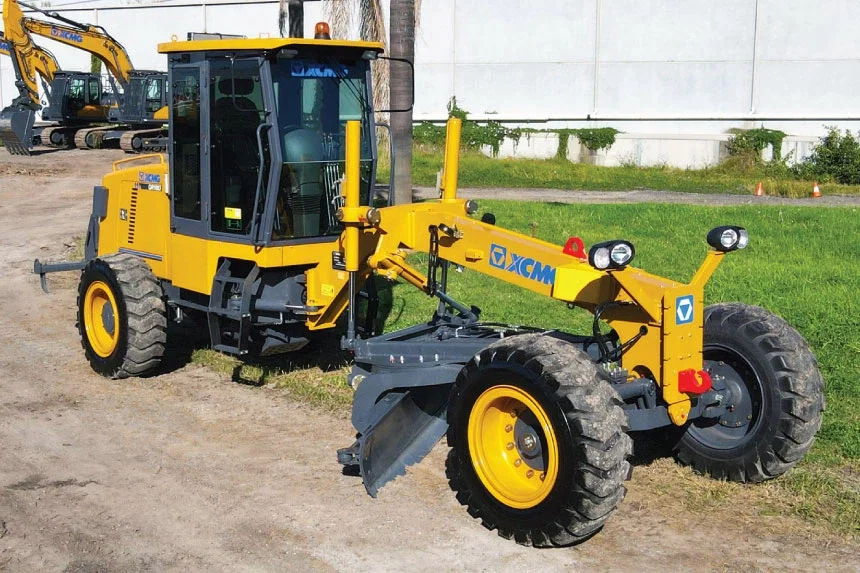

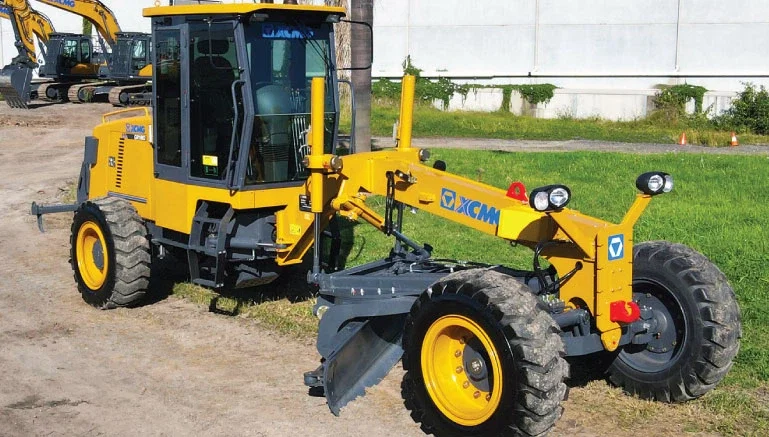

GR1003 Grader Overview
The XCMG GR1003 grader offers a durable, high performing and value for money machine that is unmatched for quality in the 7-8 tonne grader size class.
The GR1003 grader is durable, reliable, safe and comfortable – as well as being efficient to maintain. Renowned worldwide for its performance and value for money, the GR1003 is the ideal solution for customers seeking a 7-8 tonne grader for any application or industry.
Equipped with a Cummins QSB 3.9 engine, a spacious and comfortable ROPS&FOPS cab, and a wide variety of leading safety and performance features, the GR1003 grader offers remarkable reliability, efficiency, comfort and control.
Performance & Features
Maximum Performance

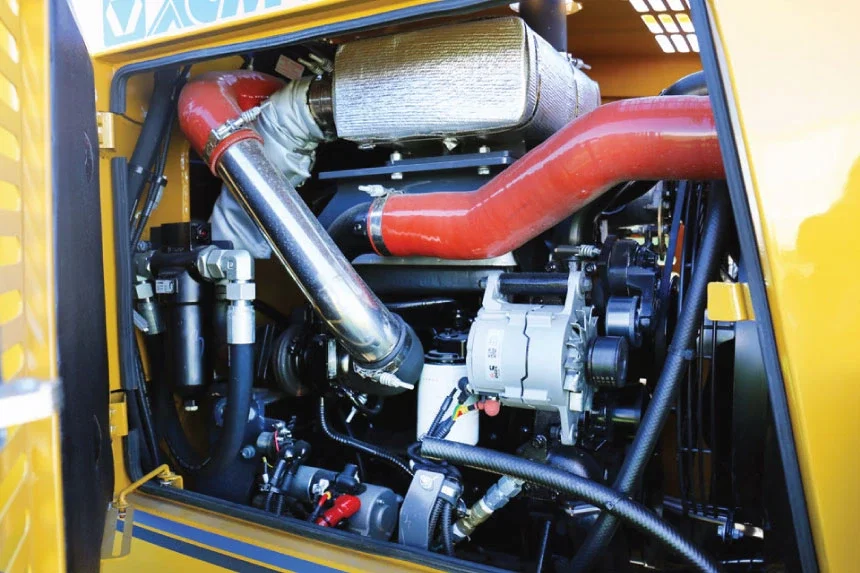

- The GR1003 is fitted with a Cummins QSB3.9 4-cylinder engine and is equipped with electrically control high-pressure common rail, turbocharger.
- The optimised blade shape works quickly and efficiently, whilst creating optimal load distribution and minimal material accumulation within the rotary disc area.
- A high resolution 10” LCD Screen connected to a premium reverse camera gives the operator a commanding view of the rear of the machine while reversing.
Safe & Reliable
- Full hydraulic braking system, load sensing steering, and optimised control structure reducing operating force by up to 30%.
- E-stops are located inside the cab as well as outside to the rear of the machine to ensure easy access to shut down the machine in case of an emergency.
- Dual circuit isolators provide more flexibility for operators and/or repair personnel when performing service and maintenance operations – improving the overall safety of the machine.
Operation Focused Design
- The single oil cylinder, large steering angle, and front axle are all XCMG patented technologies, which combined with an articulated frame and small turning radius, ensure greater manoeuvrability.
- The GR1003 offers a remarkably comfortable, flexible and ergonomic control system, engineered for smooth and efficient operation.
- The ergonomically-designed steering wheel reduces operator fatigue and is full adjustable to suit all operators.
Effecient Servicing & Maintenance
- All daily maintenance points are easily reached and serviced from the ground, ensuring simple day-to-day checks for the operator.
- Daily checks are efficient thanks to easily accessible service and maintenance components, including refuelling, fluid checks and air filters.
- Qualified, expert Service Agents located throughout all our territories for premier support.
Machine Specifications
Key Performance Specs
Operating Weight:
7500 kg (approx)
Engine:
Cummins QSB 3.9
Length:
7130 mm
Width (inc Blade):
3048 mm
Height:
3150 mm
Tyre Spec:
16/70 – 24/13 – 24
Ground Clearance (Front Axle):
550 mm
Tread:
1900 mm
Axle Distance (Front to Rear):
5135 mm
Forward Speed (km/h):
5 / 8 / 11 / 17 / 24 / 38
Rearward Speed (km/h):
5 / 11 / 24
Additional Specs
Traction Force f=0.75:
>39kN
Max Gradeability:
>25%
Tyre Inflation Pressure:
300 kPa
Working System Pressure:
16 Mpa
Transmission Pressure:
1.3 – 1.8 Mpa
Max Steering Angle Front Wheel:
~49 Degrees
Max Tilt Angle Front Wheel:
~17 Degrees
Min Turning Radius:
6 metres
Filling Capacities
Coolant:
50 L (approx)
Fuel Tank:
260 L
Engine Oil:
18L
Transmission Oil:
26L
Drive Axle::
28L
Hydraulic Oil:
89L
Blade Specs
Max Lift Height:
310 mm
Max Shoveling Depth:
350 mm
Max Tilt Angle:
45 Degrees
Cutting Angle:
28 – 70 Deg
Slewing Angle:
120 Degrees
Length x Chord Height:
3048 x 450 mm
