Quick Specs
Overall Width
2990 mm
Flow Rate
2 x 216 LPM
Op Weight
21500 kg
Engine
Cummins QSB7

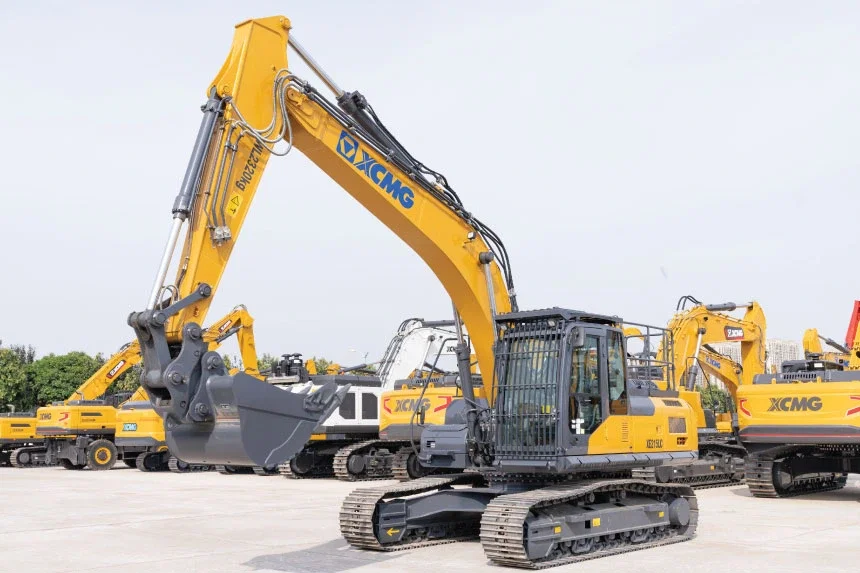

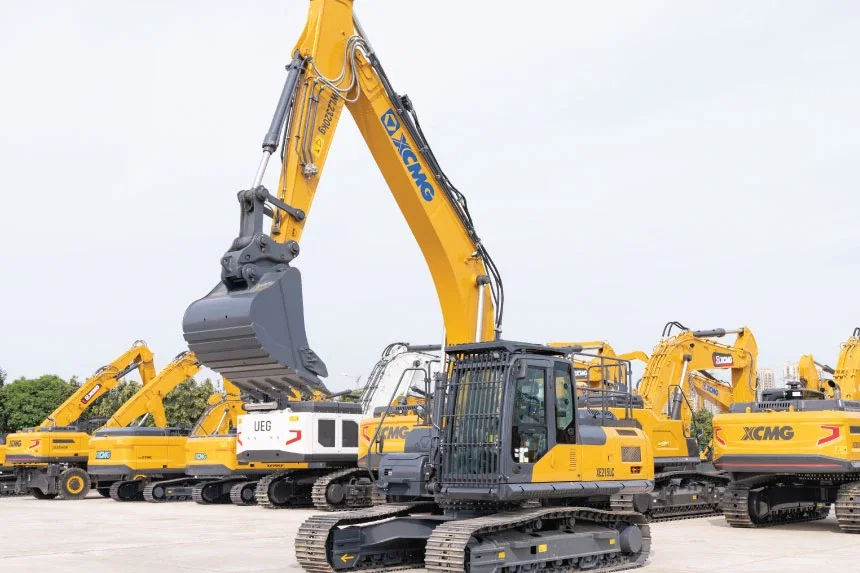

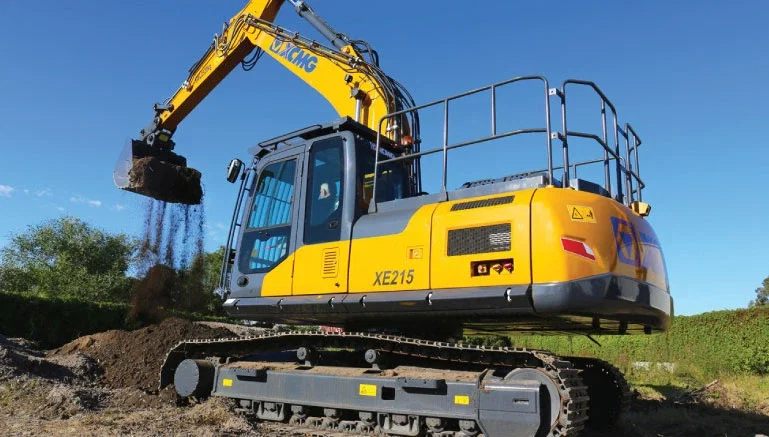

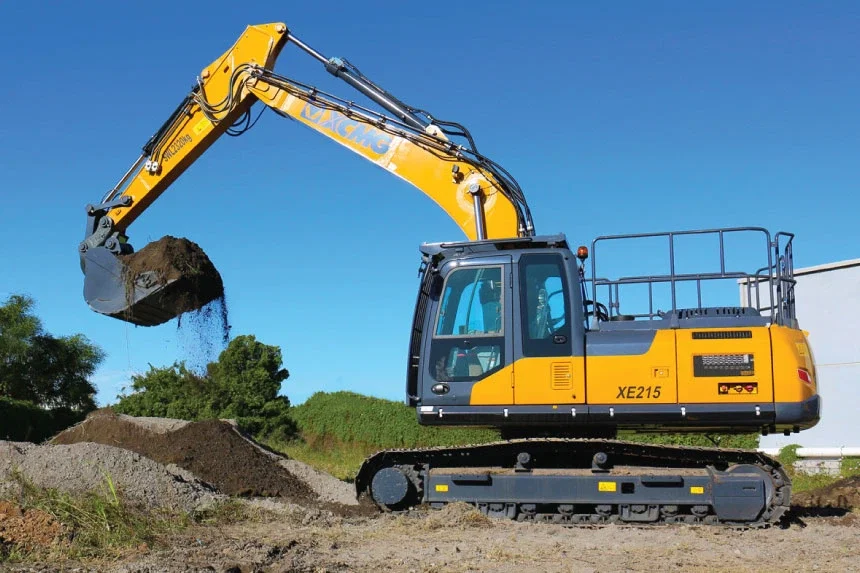

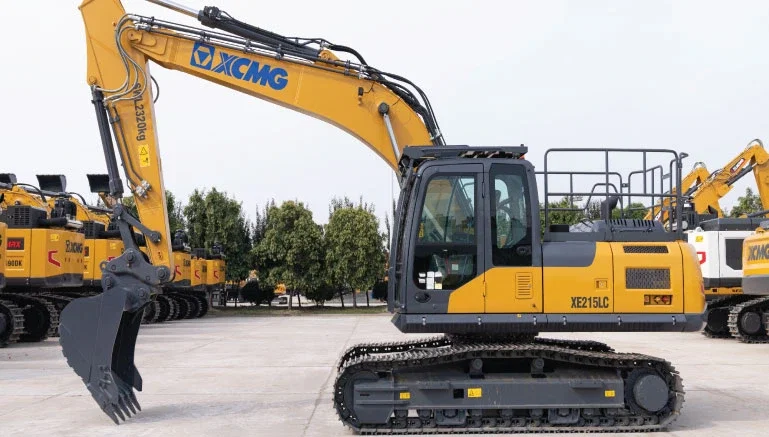

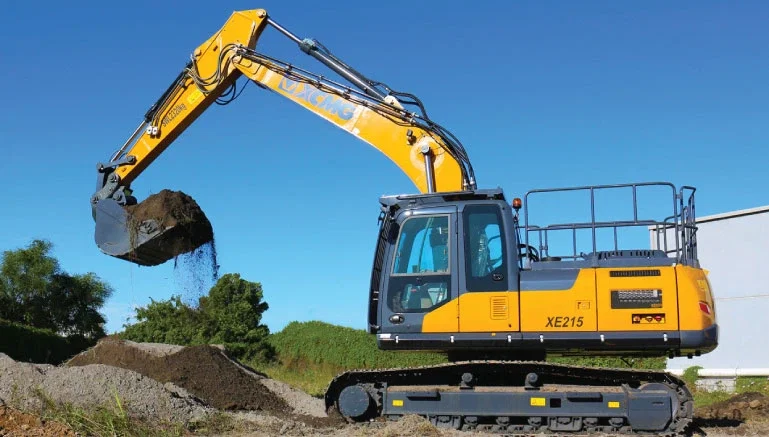

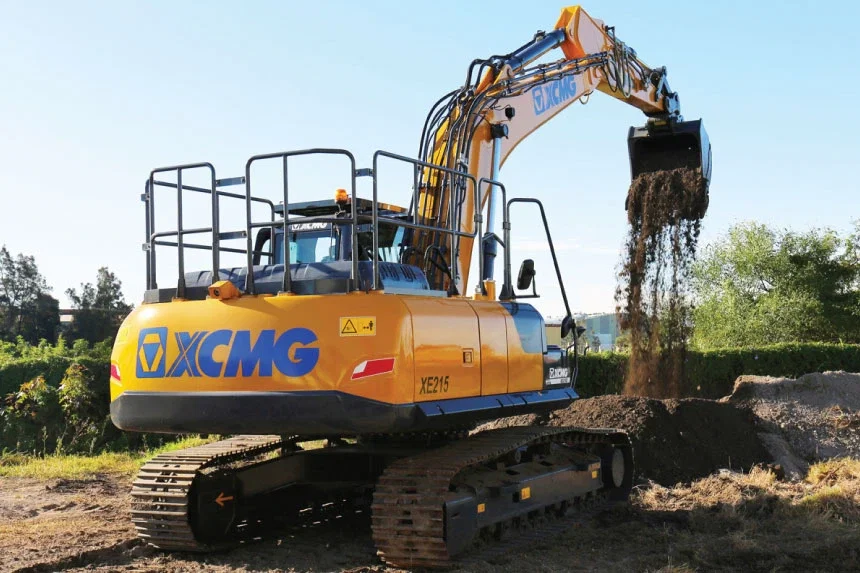

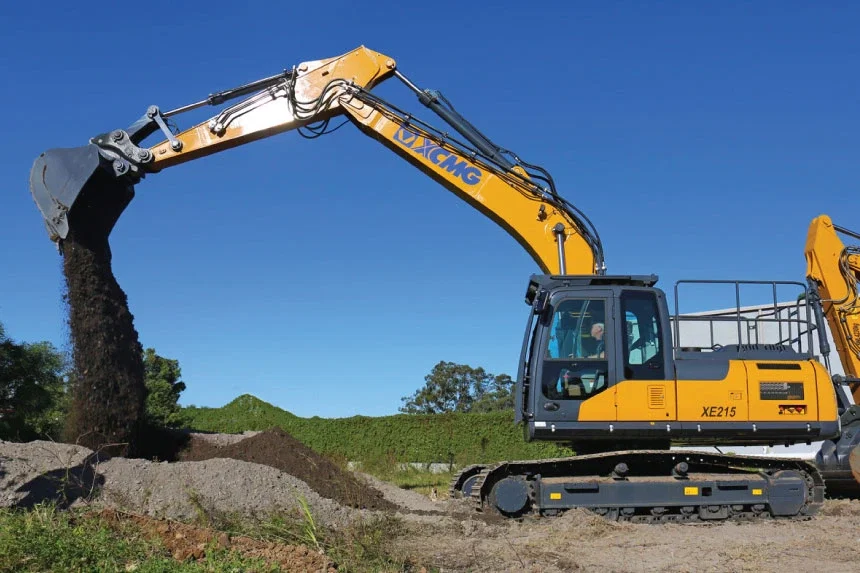

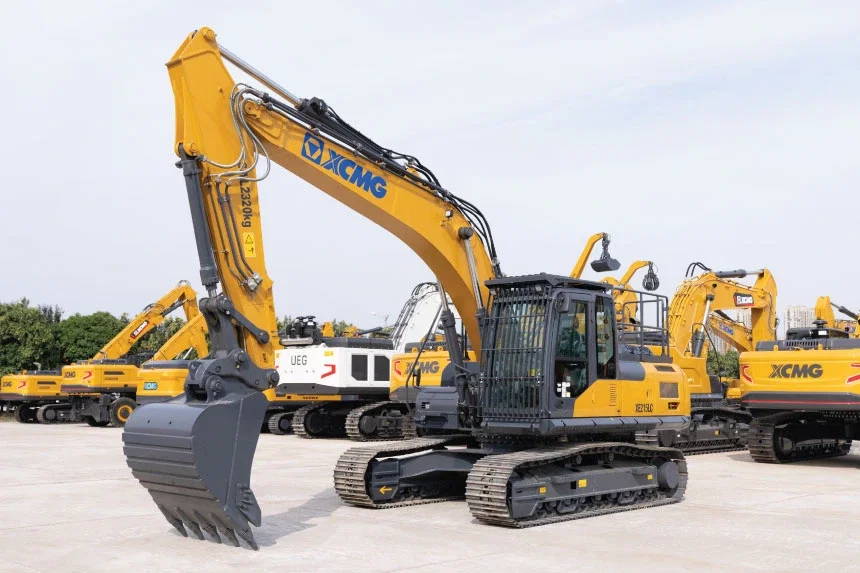

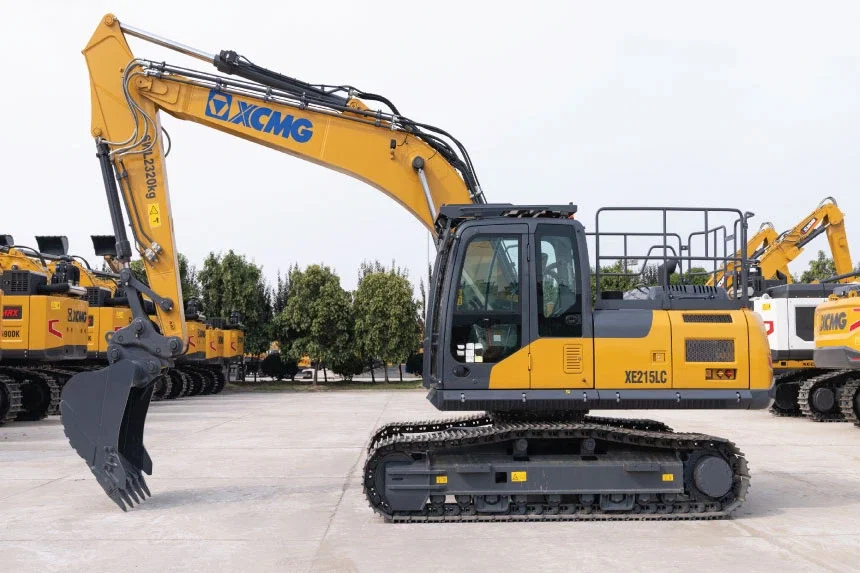

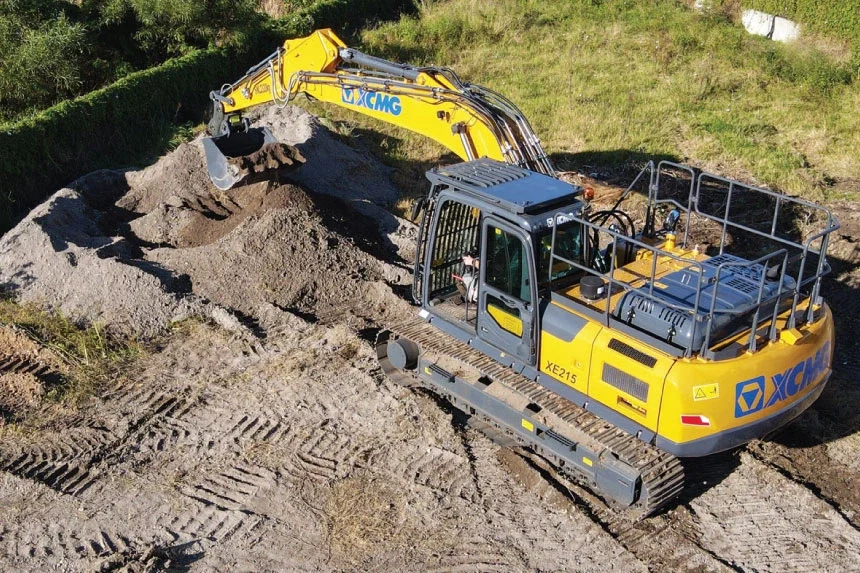

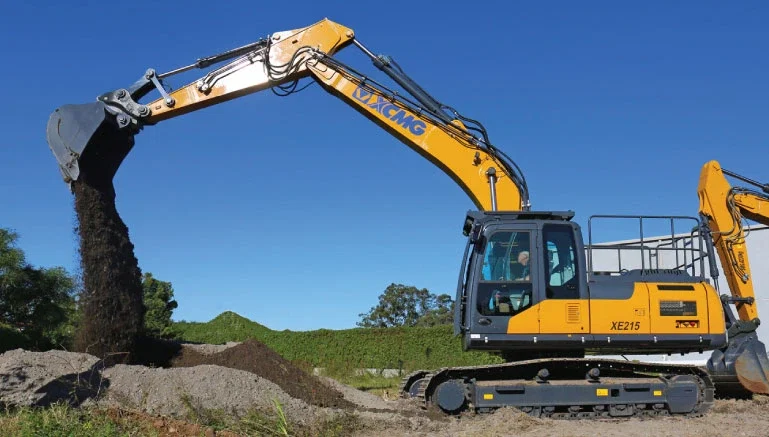

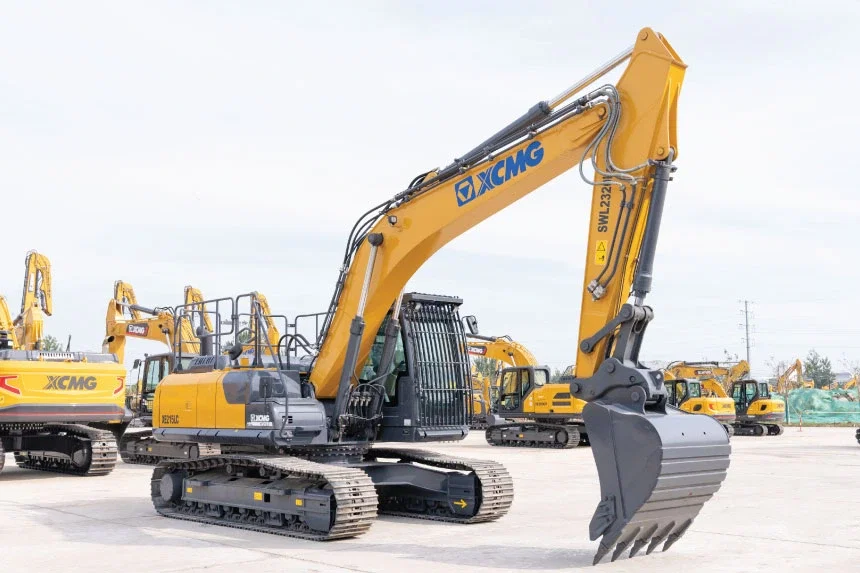

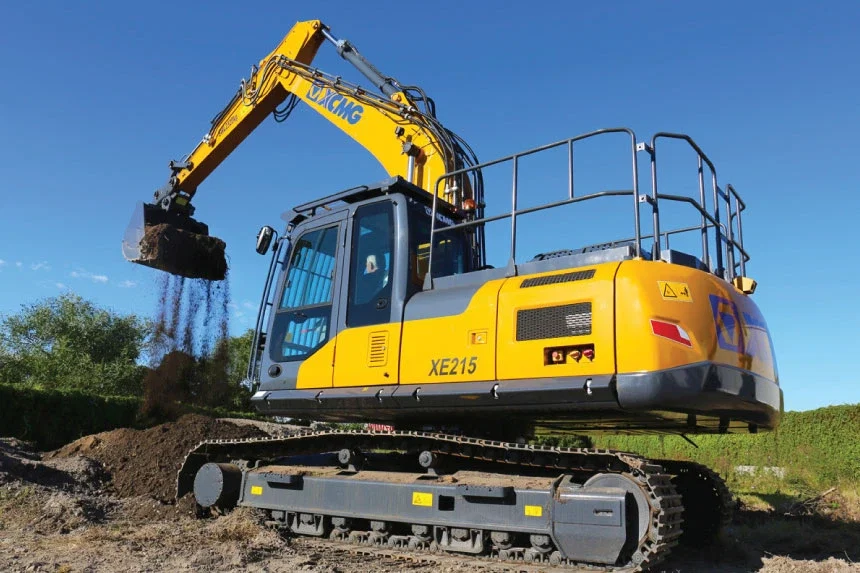

XE215LC Excavator Overview
With a powerful Cummins engine and premium quality componentry throughout, the XE215LC delivers impressive, reliable performance.
The XE215LC excavator is perfectly designed and manufactured for a wide range of worksites: excavation, mining, loading, leveling, trenching, crushing, drilling, clamping, lifting, etc.
With exceptional structural components, powerful hydraulic capability and overall premium quality, the XCMG XE215LC excavator is the ideal machine solution for any and every operator seeking a value-for-money machine in the 20-25 tonne size class.
Outstanding Features
Key Features
- Ecological and economical
- Multiple applications
- Comfortable operating experience
- Excellent after-sales service
- Convenient maintenance
- Safe and durable
Green Friendly
- Environment friendly engine
- Redox and exhaust gas recirculation technology.
- Reduced emissions
Interior Features
- Comfortable cab and operation
- Air conditioner and heater
- Ergonomic air suspended seat up to 150kg capacity
Technology
- New generation instruments
- High end 7 inch large screen display
- High resolution reverse camera display
- Simple controls and excellent visibility for monitoring performance
Machine Specifications
Key Performance Specs
Operating Weight:
21500 kg
Engine:
Cummins QSB7
Power:
135kW / 181HP
Max Torque:
740 Nm
Max Speed:
5.4km/h
Hydraulic Flow:
2×216 LPM
Dig Depth & Reach:
6680 / 9940 mm
Bucket / Arm Digging Force:
149 / 111 kN
Overall Width:
2990 mm
Swing Speed:
11.8 RPM
Dipper Length:
2400 mm
Boom Length:
5680 mm
Track Width:
600 mm
Track Type:
Steel
Additional Specs
Main Pump Type:
Kawasaki
Cab:
FOPS/ROPS/Anti Roll + Air Con
Emergency Stops:
Included
Buckets:
Enquire
Main Pump:
Kawasaki
Radio:
AM/FM + USB
Walking Motor:
Doosan
Seat:
Air Suspension 150kg
Reverse Camera:
Yes
Hydraulic Quick Change + Pipeline:
Miller (twin lock, double lock)
Pressure Flow Monitor:
Adjustable
Walking / Slewing Alarm Device:
Included
Work Light + Reversing Alarm Light:
Included
Cab Hoisting Performance Table:
Included
