Quick Specs

Payload 30000 kg
Curb Weight 26700 kg
Overall Length 10420 mm

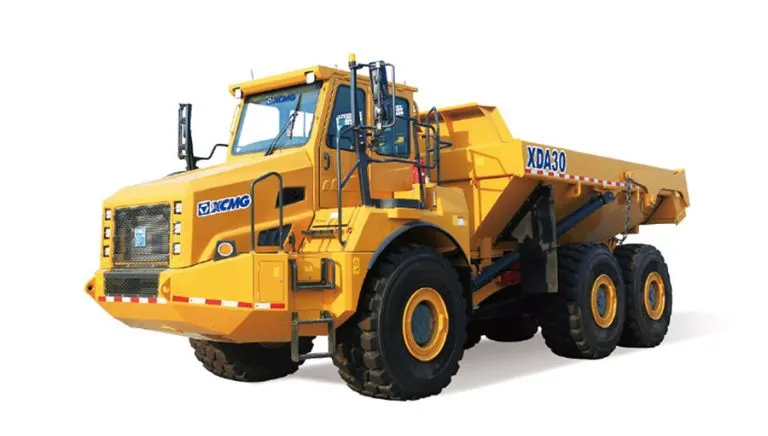

XDA30 Articulated Dump Truck Overview

The XCMG Australia XDA30 Articulated Dump Truck, meticulously designed for efficient material handling in mining, construction, and industrial settings. Engineered with robust strength and advanced features, this articulated dump truck ensures precision and efficiency for heavy-duty tasks. With capacities ranging from small-scale loads to larger capacities, XCMG’s articulated dump trucks seamlessly combine power and versatility, providing a reliable solution for various earth-moving needs. Whether for mining, construction, or other industrial applications, XCMG Australia has the ideal solution in our range, including versatile articulated dump trucks for sale. Trust XCMG Australia’s steadfast commitment to delivering innovative material handling solutions for the mining and construction industries.

Make an enquiry

Machine Specifications

Key Performance Specs

Model: XDA30
Payload: 30,000 kg
Empty Weight: 26,700 kg
Gross Vehicle Weight: 56,700 kg
Body Capacity (Struck): 13.6/14 m³
Body Capacity (2:1 Heaped): 17.5/18.1 m³
Overall Dimensions (L × W × H): 10,100 × 3,200 × 3,700 mm
Drive Style: 6 × 6
Max. Speed: 49 km/h
Max. Gradeability: 45%
Max. Steering Angle: ±45°

Additional Specs

Engine: Cummins QSM11
Rated Power/Speed: 200 kW / 2,100 rpm
Max. Torque/Speed: 1,898 Nm / 1,400 rpm
Transmission: RTO-2210B
Speed Range: 10F2R
Braking System: Drum brake
Hoist Time: 13 s
Hoist Angle: 70°
Cab: FOPS cab
Tyres: 750/65R25 (optional 23.5R25)
Electrical System: 24 V
